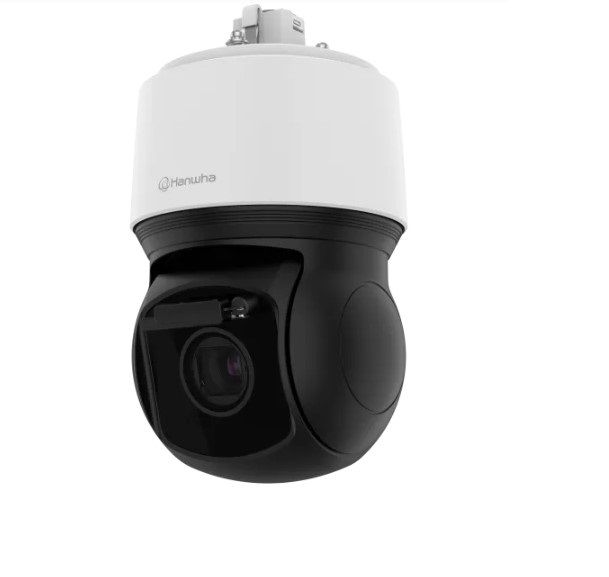

Hanwha Vision XNP-C8303RW 6 Megapixel Network PTZ Camera with 30X Lens
SKU
XNP-C8303RW
Model No
XNP-C8303RW
$3,334.50
Product Highlights
- Dual Memory slots (Maximum 512GB x 2)
- IP66, IK10, NEMA4X, NEMA TS-2 2.2.8 (Vibration) & 2.2.9 (Shock)
- HPoE (IEEE802.3bt, Class6, Type3, Injector included)
- TPM 2.0 with FIPS 140-2 level 2
- Optional Network I/O box for alarm & audio I/O SPM-4210
Speak to an expert
6 Megapixel Network PTZ Camera with 30X Lens
- Experience advanced surveillance with the Hanwha Vision XNP-C8303RW 6 Megapixel Network PTZ Camera, featuring a powerful 30X optical zoom lens and cutting-edge AI technology. Designed for exceptional performance in diverse environments, this camera delivers high-resolution imagery, reliable tracking capabilities, and robust weather resistance, making it ideal for various security applications.
Camera Functions
Audio
Auto Gain Control
Auto White Balance
BLC
Day/Night Vision
3D DNR
Mirror
Motion Detection
ONVIF
Privacy Masking
Vandal Resistant
Weather Resistant
WDR
Camera Features
| 6MP resolution @ 30fps | AI-based Object Auto tracking (Person, Vehicle) , target lock tracking, Intelligent video analytics |
| IR viewable length: 200m (656ft) | Analytics events based on AI engine: Object detection (Person/Face/Vehicle/License plate) , IVA (Virtual line/Area, Enter/Exit, Loitering, direction, intrusion) , Analytics events: Defocus detection, Motion detection, Tampering, Fog detection, Audio detection, Sound classification (with NW I/O box) , Object auto-tracking (Person/Vehicle) , Target lock track |
| 30x optical zoom lens (5mm ~ 150mm) (57.42° ~ 2.19°) | Dual Memory slots (Maximum 512GB x 2) |
| Wiper & lens heater for water/snow removal | IP66, IK10, NEMA4X, NEMA TS-2 2.2.8 (Vibration) & 2.2.9 (Shock) |
| -20° tilt look-up capability to see above the horizon | HPoE (IEEE802.3bt, Class6, Type3, Injector included) |
| H.265, H.264, MJPEG triple codec support | TPM 2.0 with FIPS 140-2 level 2 |
| Multiple streaming, WiseStream III support | Optional Network I/O box for alarm & audio I/O SPM-4210 |
| Day & Night (ICR) , extreme WDR | Operating Temperature -40°C~+55°C (-40°F ~ +131°F) |
| DIS with Built-in Gyro sensor | |
| Azimuth display (Cardinal & intermediate directions) |
Durable PTZ Cameras for Reliable Performance
PTZ (pan-tilt-zoom) cameras make it possible to monitor large areas with a single camera, offering both wide and close-up views for the details required. Our PTZ IP cameras are designed for both indoor and outdoor applications to work in all lighting and weather conditions.
Wide area coverage- Never miss a moment with 360-degree views and wide tilt range.
Integrated IR illumination- See up to 200m in the dark with integrated IR illumination.
Low latency - Track objects easily with low latency, smooth pan, tilt and zoom controls.
Additional Hanwha Vision Products
SKU  | XNP-C8303RW |
|---|---|
| Features | Audio, Auto Gain Control, Auto Tracking, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Mirror, Motion Detection Tracking, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range |
| Manufacturer | Hanwha Vision |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | 101 Feet + |
| Resolution | 6 Megapixel |
| Lens Type | Motorized Zoom |
| Lens Size | 30X |
| Mount Type | Pendant |
| Compression Method | H.264, M-JPEG, H.265 |
| Durability | Vandal Resistant, Weather Resistant |
| Voltage | PoE |
| Automatic Gain Control (AGC) | Off / Max Gain / Manual |
| Dimensions (W x H) | ø184.9x318.8mm(7.28x12.55") |
| Electronic Shutter | Minimum / Maximum / Anti flicker (2~1/12,000sec) Prefer shutter control(Based on AI engine) |
| Image Device | 1/2.8" CMOS |
| Minimum Scene Illumination | Color: 0.1Lux(F1.6, 1/30sec) BW: 0Lux(IR LED On) |
| Operating Humidity | +74°C(+165°F) (MAX) based on NEMA-TS 2(2.2.7) * Start up should be done at above -30°C 0~95% RH(Non-condensing) |
| Operating Temperature | -40°C~+55°C(-40°F ~ +131°F) |
| Power Consumption | Typical 26W, Max 46W |
| Privacy Zone | 32ea, Quadrangle Support - Color: Grey/Green/Red/Blue/Black/White - Mosaic |
| Protocols | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP(TCP, UDP Unicast), NTCIP1205, MQTT |
| Weatherproof | IP66 |
| Digital Noise Reduction | WiseNRⅡ(Based on AI engine), SSNRⅤ |
| Angle of View | H: 57.42°(Wide)~2.19°(Tele) / V: 33.54°(Wide)~1.25°(Tele) |
| Rotation Angle | Flip&Mirror |
| Motion Detection Tracking | 8ea, 8point polygonal zones |
| Back Light Compensation | BLC, HLC, WDR, SSDR |
| Automatic White Balance | ATW / NarrowATW / AWC / Manual / Indoor / Outdoor / Mercury / Sodium |
| IR Distance | 200m (656ft) |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Motion Detection Tracking | Yes |
| Wide Dynamic Range | Yes |
| Mirror | Yes |
| ONVIF | Yes |
