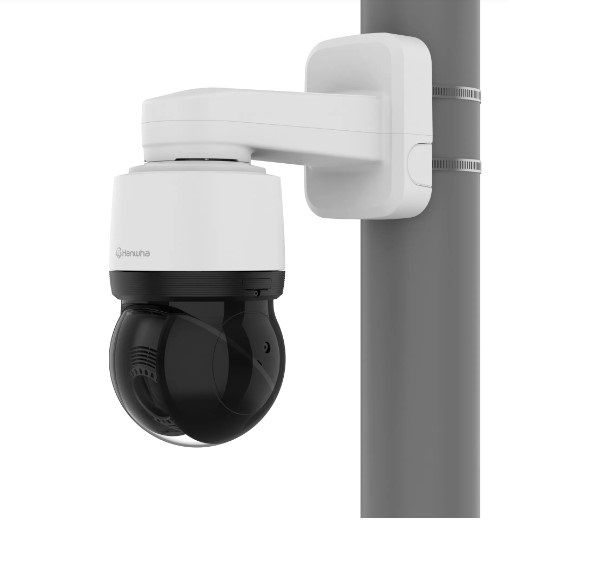

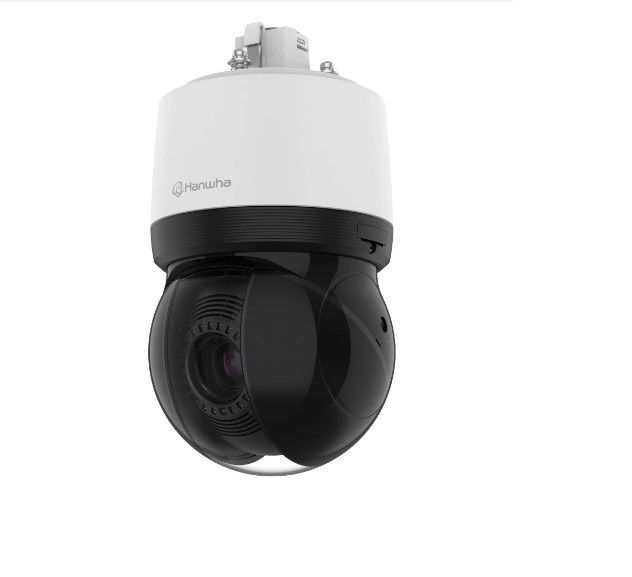

Hanwha Vision XNP-C8253R 6 Megapixel Network PTZ Camera with 25X Lens
SKU
XNP-C8253R
Model No
XNP-C8253R
$2,811.84
Product Highlights
- DIS with Built-in Gyro sensor
- Azimuth display (Cardinal & intermediate directions)
- Dual Memory slots (Maximum 512GB x 2)
- IP66, IK10, NEMA4X, NEMA TS-2 2.2.8 (Vibration) & 2.2.9 (Shock)
- HPoE (IEEE802.3bt, Class6, Type3, Injector included)
Speak to an expert
6 Megapixel Network PTZ Camera with 25X Lens
- The Hanwha Vision XNP-C8253R 6 Megapixel Network PTZ Camera is equipped with advanced AI technology and robust features designed for high-performance surveillance. With exceptional image clarity, powerful zoom capabilities, and comprehensive environmental resilience, this camera offers unparalleled security solutions for various applications.
Camera Functions
Audio
Auto Gain Control
Auto White Balance
BLC
Day/Night Vision
3D DNR
Mirror
Motion Detection
ONVIF
Privacy Masking
Vandal Resistant
Weather Resistant
WDR
Camera Features
| 6MP resolution | Ture D/N |
| 25X optical zoom (4.25mm ~ 170mm) | DIS with Built-in Gyro sensor |
| IR viewable length: 200m (656ft) | Azimuth display (Cardinal & intermediate directions) |
| -20° tilt look-up capability to see above the horizon | Dual Memory slots (Maximum 512GB x 2) |
| Lens heater & spin dry for water/snow removal | IP66, IK10, NEMA4X, NEMA TS-2 2.2.8 (Vibration) & 2.2.9 (Shock) |
| 360° endless pan | HPoE (IEEE802.3bt, Class6, Type3, Injector included) |
| Triple codec H.265/H.264/MJPEG | TPM 2.0 with FIPS 140-2 level 2 |
| WiseStream III technology | Optional SPM-4210 Network I/O box for alarm & audio I/O |
| extreme WDR | Operating Temperature -40°C~+55°C (-40°F ~ +131°F) |
| Analytics events based on AI engine: Object detection (Person/Face/Vehicle/License plate) , IVA (Virtual line/Area, Enter/Exit, Loitering, direction, intrusion) , Analytics events: Defocus detection, Motion detection, Tampering, Fog detection, Audio detection, Sound classification (with NW I/O box) , Object auto-tracking (Person/Vehicle) , Target lock track |
Durable PTZ Cameras for Reliable Performance
PTZ (pan-tilt-zoom) cameras make it possible to monitor large areas with a single camera, offering both wide and close-up views for the details required. Our PTZ IP cameras are designed for both indoor and outdoor applications to work in all lighting and weather conditions.
Wide area coverage- Never miss a moment with 360-degree views and wide tilt range.
Integrated IR illumination- See up to 200m in the dark with integrated IR illumination.
Low latency - Track objects easily with low latency, smooth pan, tilt and zoom controls.
Additional Hanwha Vision Products
SKU  | XNP-C8253R |
|---|---|
| Features | Audio, Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Mirror, Motion Detection Tracking, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range |
| Manufacturer | Hanwha Vision |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | 101 Feet + |
| Resolution | 6 Megapixel |
| Lens Type | Motorized Zoom |
| Lens Size | 25X |
| Mount Type | Pendant |
| Compression Method | H.264, M-JPEG, H.265 |
| Durability | Vandal Resistant, Weather Resistant |
| Voltage | PoE |
| Automatic Gain Control (AGC) | Off / Max Gain / Manual |
| Dimensions (W x H) | ø158x293.3mm(6.22x11.55") |
| Electronic Shutter | Minimum / Maximum / Anti flicker (2~1/12,000sec) Prefer shutter control(Based on AI engine) |
| Image Device | 1/2.8" CMOS |
| Minimum Scene Illumination | Color: 0.1Lux(F1.6, 1/30sec) BW: 0Lux(IR LED On) |
| Operating Humidity | +74°C(+165°F) (MAX) based on NEMA-TS 2(2.2.7) * Start up should be done at above -30°C 0~95% RH(Non-condensing) |
| Operating Temperature | -40°C~+55°C(-40°F ~ +131°F) |
| Power Consumption | Typical 24W, Max 40W |
| Privacy Zone | 32ea, Quadrangle Support - Color: Grey/Green/Red/Blue/Black/White - Mosaic |
| Protocols | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP(TCP, UDP Unicast), NTCIP1205, MQTT |
| Weatherproof | IP66 |
| Digital Noise Reduction | WiseNRⅡ(Based on AI engine), SSNRⅤ |
| Angle of View | H: 57.42°(Wide)~2.71°(Tele) / V: 33.54°(Wide)~1.55°(Tele) |
| Rotation Angle | Flip&Mirror |
| Motion Detection Tracking | 8ea, 8point polygonal zones |
| Back Light Compensation | BLC, HLC, WDR, SSDR |
| Automatic White Balance | ATW / NarrowATW / AWC / Manual / Indoor / Outdoor / Mercury / Sodium |
| IR Distance | 200m (656ft) |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Motion Detection Tracking | Yes |
| Wide Dynamic Range | Yes |
| Mirror | Yes |
| ONVIF | Yes |
