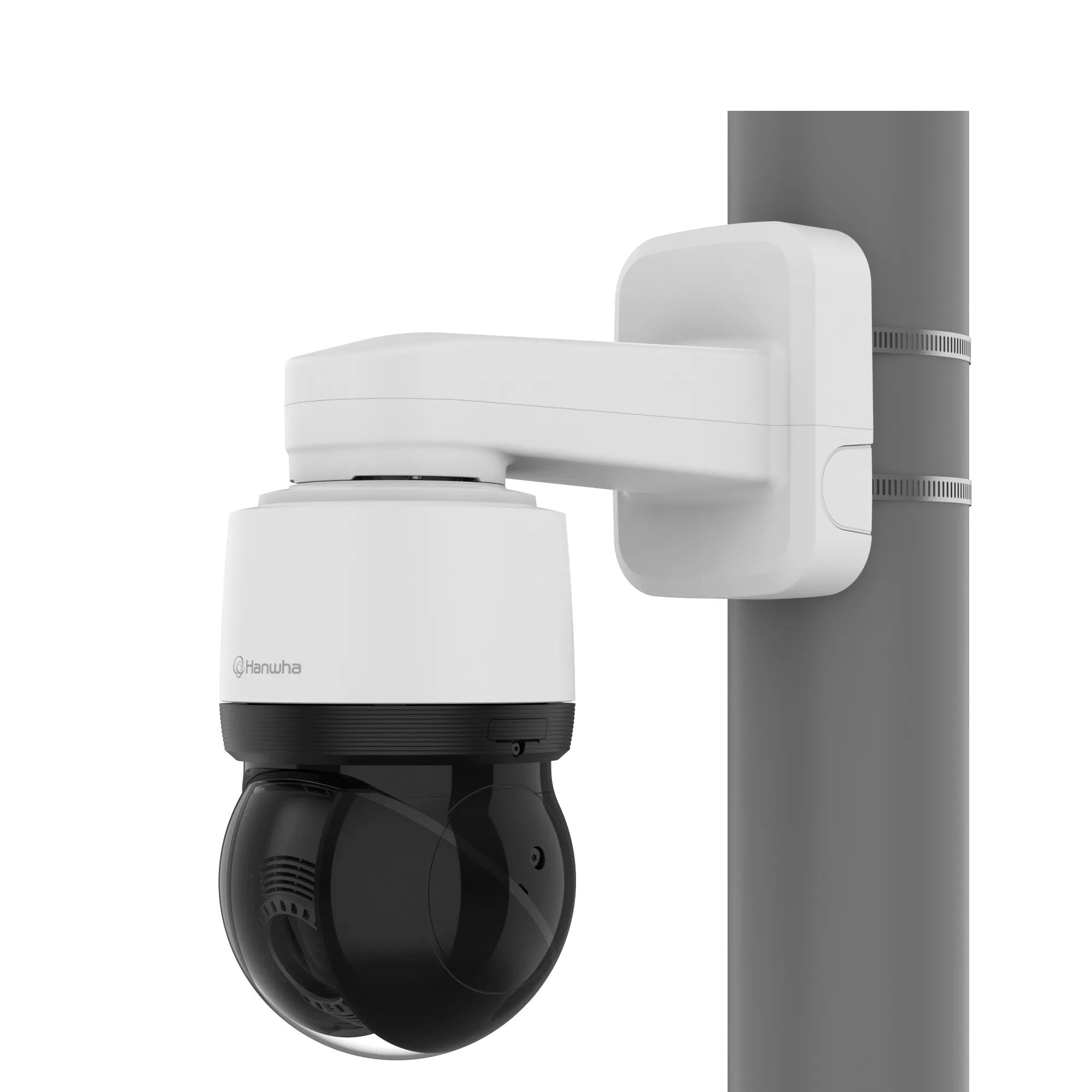

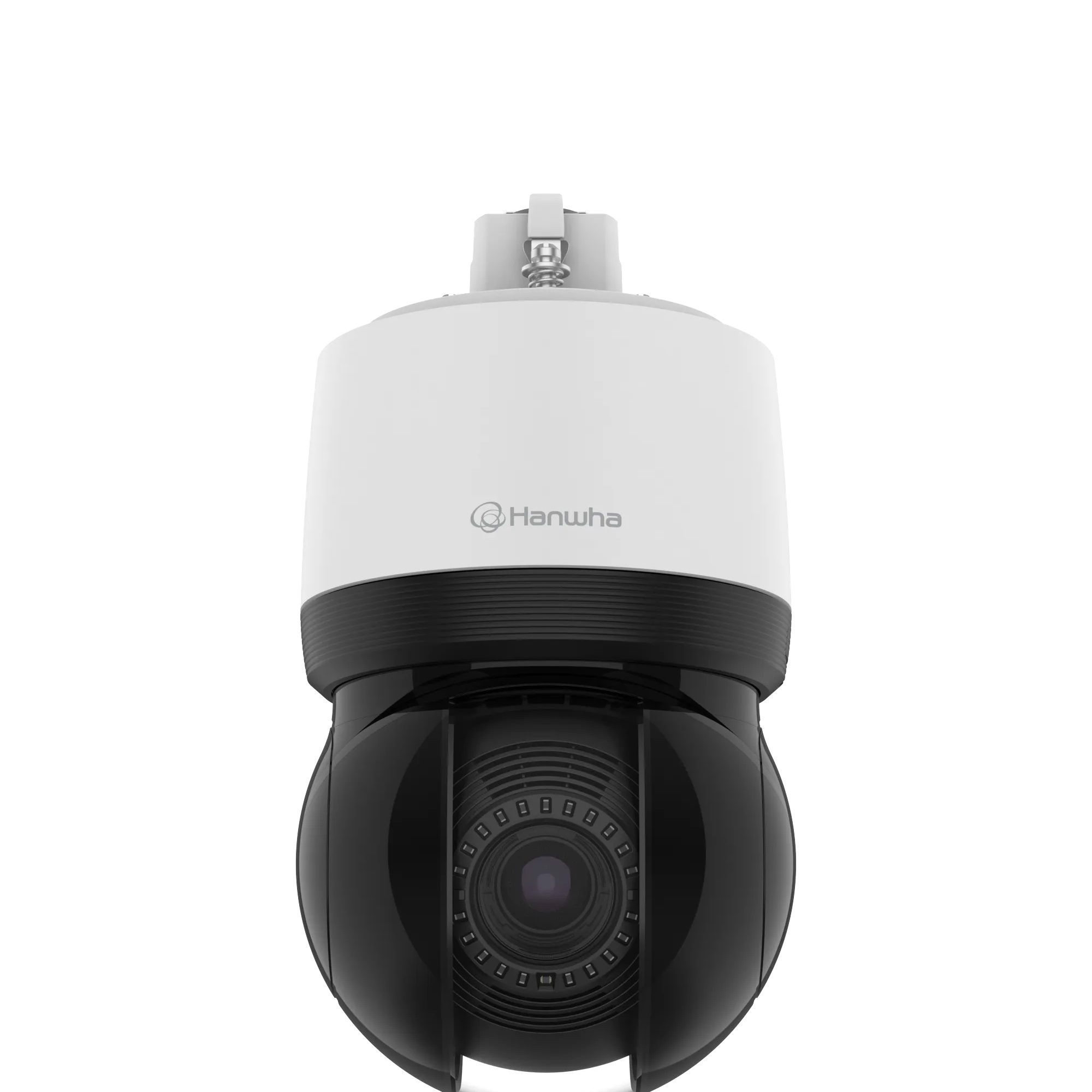

Hanwha Vision XNP-C6403 2 Megapixel Network Outdoor PTZ Camera with 40X Lens
SKU
XNP-C6403
Model No
XNP-C6403
$2,502.50
Product Highlights
- 2MP resolution
- 40X optical zoom (4.25mm ~ 170mm)
- -20° tilt look-up capability to see above the horizon
- Lens heater & spin dry for water/snow removal
- 360° endless pan
Speak to an expert
2 Megapixel Network Outdoor PTZ Camera with 40X Lens
- Introducing the Hanwha Vision XNP-C6403, a cutting-edge 2 Megapixel Network Outdoor PTZ Camera designed for superior surveillance performance. Featuring a powerful 40X optical zoom and advanced AI capabilities, this camera ensures precise object detection and auto tracking, making it an ideal choice for diverse security applications.
Camera Functions
Audio
Auto Gain Control
Auto White Balance
BLC
Day/Night Vision
3D DNR
Mirror
Motion Detection
ONVIF
Privacy Masking
Vandal Resistant
Weather Resistant
WDR
Camera Features
| 2MP resolution | AI-based Object Auto tracking (Person, Vehicle) , target lock tracking, Intelligent video analytics |
| 40X optical zoom (4.25mm ~ 170mm) | Analytics events based on AI engine: Object detection (Person/Face/Vehicle/License plate) , IVA (Virtual line/Area, Enter/Exit, Loitering, direction, intrusion) , Analytics events: Defocus detection, Motion detection, Tampering, Fog detection, Audio detection, Sound classification (with NW I/O box) , Object auto-tracking (Person/Vehicle) , Target lock track |
| -20° tilt look-up capability to see above the horizon | Ture D/N |
| Lens heater & spin dry for water/snow removal | Dual Memory slots (Maximum 512GB x 2) |
| 360° endless pan | IP66, IK10, NEMA4X, NEMA TS-2 2.2.8 (Vibration) & 2.2.9 (Shock) , NTCIP 1205 |
| Triple codec H.265/H.264/MJPEG | PoE+ |
| WiseStream II technology | TPM 2.0 with FIPS 140-2 level 2 |
| extreme WDR | Optional SPM-4210 Network I/O box for alarm & audio I/O |
| DIS with Built-in Gyro sensor | Operating Temperature -40°C~+55°C (-40°F ~ +131°F) |
| Azimuth display (Cardinal & intermediate directions) |
Durable PTZ Cameras for Reliable Performance
PTZ (pan-tilt-zoom) cameras make it possible to monitor large areas with a single camera, offering both wide and close-up views for the details required. Our PTZ IP cameras are designed for both indoor and outdoor applications to work in all lighting and weather conditions.
Wide area coverage- Never miss a moment with 360-degree views and wide tilt range.
Integrated IR illumination- See up to 200m in the dark with integrated IR illumination.
Low latency - Track objects easily with low latency, smooth pan, tilt and zoom controls.
Additional Hanwha Vision Products
SKU  | XNP-C6403 |
|---|---|
| Features | Audio, Auto Gain Control, Auto Tracking, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Mirror, Motion Detection Tracking, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range |
| Manufacturer | Hanwha Vision |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | Non Infrared |
| Resolution | 2 Megapixel |
| Lens Type | Motorized Zoom |
| Lens Size | 40X |
| Mount Type | Pendant |
| Compression Method | H.264, M-JPEG, H.265 |
| Durability | Vandal Resistant, Weather Resistant |
| Voltage | PoE |
| Automatic Gain Control (AGC) | Off / Max gain / Manual |
| Dimensions (W x H) | ø158x293.3mm(6.22x11.55") |
| Electronic Shutter | Minimum / Maximum / Anti flicker (2~1/12,000sec) Prefer shutter control(Based on AI engine) |
| Image Device | 1/2.8" CMOS |
| Minimum Scene Illumination | Color: 0.05Lux(F1.6, 1/30sec), BW: 0.005Lux(F1.6, 1/30sec) |
| Operating Humidity | 0~95% RH(Non-condensing) |
| Operating Temperature | -40°C~+50°C(-40°F ~ +122°F) |
| Power Consumption | Typical 24W, Max 25.5W |
| Privacy Zone | 32ea, Quadrangle Support - Color: Grey/Green/Red/Blue/Black/White - Mosaic |
| Protocols | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP(TCP, UDP Unicast), NTCIP1205, MQTT |
| Weatherproof | IP66 |
| Digital Noise Reduction | WiseNRⅡ(Based on AI engine), SSNRⅤ |
| Angle of View | H: 65.66°(Wide)~1.88°(Tele) / V: 39.4°(Wide)~1.09°(Tele) |
| Motion Detection Tracking | 8ea, 8point polygonal zones |
| Back Light Compensation | BLC, HLC, WDR, SSDR |
| Automatic White Balance | ATW / NarrowATW / AWC / Manual / Indoor / Outdoor / Mercury / Sodium |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| Mirror | Yes |
| ONVIF | Yes |
