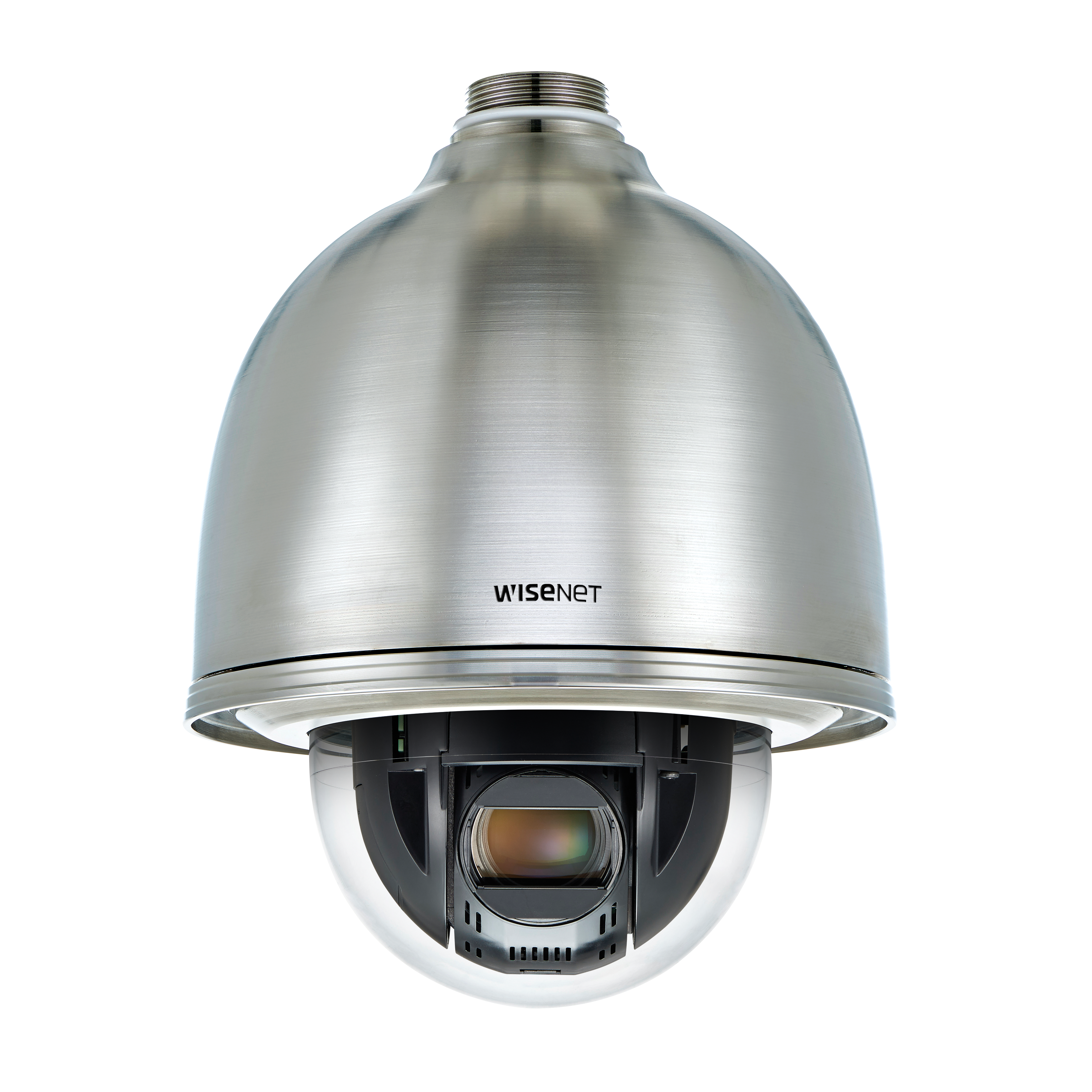

Hanwha Vision XNP-6320HS 2 Megapixel Network Stainless Steel PTZ Camera, 32X
SKU
XNP-6320HS
Model No
XNP-6320HS
$4,333.00
Product Highlights
- Max. 2 Megapixel (1920 x 1080) resolution
- 4.44 ~ 142.6 (32x) optical zoom, 32x digital zoom
- H.265, H.264, MJPEG codec support, Multiple streaming
- WiseStream II support
- Day & Night (ICR), WDR (150dB)
Speak to an expert
2 Megapixel Network Stainless Steel PTZ Camera, 32X
- The Hanwha Vision XNP-6320HS is an advanced 2 Megapixel network stainless steel PTZ camera designed for high-performance surveillance in demanding environments. Featuring a powerful 32X optical zoom and full HD resolution, this camera ensures detailed images even at great distances. With exceptional low-light performance, advanced video analytics, and robust weatherproofing (IP66/IK10), it delivers reliable performance for various security applications.
Camera Functions
Auto Gain Control
Auto White Balance
BLC
Day/Night Vision
3D DNR
Mirror
Motion Detection
On Screen Display Menu
ONVIF
Privacy Masking
Vandal Resistant
Weather Resistant
WDR
Camera Features
| Max. 2 Megapixel (1920 x 1080) resolution | Loitering, Directional detection, Fog detection, Audio detection, Digital auto tracking, Sound classification, Face detection, Tampering |
| 4.44 ~ 142.6 (32x) optical zoom, 32x digital zoom | Motion detection |
| H.265, H.264, MJPEG codec support, Multiple streaming | SD/SDHC/SDXC memory slot (Max. 512GB), 24V AC / PoE |
| WiseStream II support | IP67, IP66, NEMA4X, IK10 |
| Day & Night (ICR), WDR (150dB) | Material: SUS316L |
Durable PTZ Cameras for Reliable Performance
PTZ (pan-tilt-zoom) cameras make it possible to monitor large areas with a single camera, offering both wide and close-up views for the details required. Our PTZ IP cameras are designed for both indoor and outdoor applications to work in all lighting and weather conditions.
Wide area coverage- Never miss a moment with 360-degree views and wide tilt range.
Integrated IR illumination- See up to 200m in the dark with integrated IR illumination.
Low latency - Track objects easily with low latency, smooth pan, tilt and zoom controls.
Additional Hanwha Vision Products
SKU  | XNP-6320HS |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Mirror, Motion Detection Tracking, On Screen Display Menu, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range |
| Manufacturer | Hanwha Vision |
| NDAA | Compliant |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | Non Infrared |
| Resolution | 2 Megapixel |
| Lens Type | Motorized Zoom |
| Lens Size | 32X |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, M-JPEG, H.265 |
| Durability | Vandal Resistant, Weather Resistant |
| Voltage | PoE |
| Automatic Gain Control (AGC) | Off / Low / Middle / High |
| Dimensions (W x H) | Ø227 x 295.5mm (Ø8.94" x 11.63") |
| Electronic Shutter | Minimum / Maximum / Anti flicker (1 ~ 1/12,000sec) |
| Image Device | 1/2.8" 2.4M CMOS |
| Image Pixels Total | 1,981 (H) x 1,288 (V), 2.55M |
| Minimum Scene Illumination | Color: 0.05Lux (F1.6), B/W: 0.005Lux (F1.6) |
| Operating Humidity | 24V AC: Less than 90% RH, PoE+: Less than 90% RH |
| Operating Temperature | 24V AC: -50°C ~ +55°C (-58°F ~ +131°F), PoE+: -35°C ~ +55°C (-31°F ~ +131°F) |
| OSD Menu | Off / On (24 zones of rectangle zone) |
| Power Consumption | Max. 24W (Heater off), Max. 65W (24V AC - Heater on) |
| Protocols | TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3 (MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour |
| S/N Ratio | 50dB |
| Scanning System | Progressive |
| Weatherproof | IP66, IP67 |
| Digital Noise Reduction | SSNRV (2D + 3D Noise filter) (Off / On) |
| Mirror | Off / On |
| Angle of View | H: 61.8Ëš(Wide) ~ 2.19Ëš(Tele) / V: 36.2Ëš(Wide) ~ 1.24Ëš(Tele) |
| Motion Detection Tracking | Off / On (8ea, polygonal) |
| Back Light Compensation | Off / BLC / HLC / WDR |
| Automatic White Balance | ATW / AWC / Manual / Indoor / Outdoor (included Mercury & Sodium) |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Motion Detection Tracking | Yes |
| On Screen Display Menu | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| Mirror | Yes |
| ONVIF | Yes |
