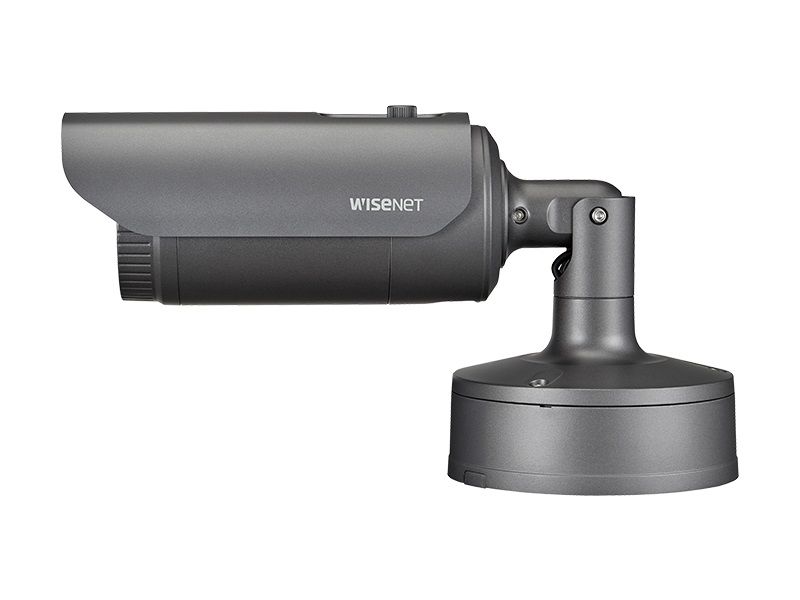

Samsung XNO-6120R-LPR 2 Megapixel Outdoor License Plate Recognition Network Bullet Camera, 5.2-62.4mm Lens

SKU
XNO-6120R-LPR
Model No
XNO-6120R-LPR
$1,183.20
Volume Discounts Volume
Discounts
Free System Design Free System
Design
Lifetime Tech Support Lifetime
Tech Support
Free Shipping Over $400* Free Shipping
Over $400*
Product Highlights
  • XNO-6120R camera with LPR Application pre-loaded and licensed
  • LPR Recognition System for low speed parking lot, gate, drive thru
  • Edge based LPR application on Open Platform, NON server based
  • 2 Megapixel (1920 x 1080) resolution
  • 5.2 ~ 62.4mm (Optical 12X) Optical Lens

The XNO-6120R-LPR is a cutting-edge outdoor license plate recognition network bullet camera designed for effective monitoring in parking lots, drive-thrus, and entry gates at speeds of up to 35MPH. This 2 Megapixel camera boasts advanced features including a 12X optical zoom lens, enhanced low-light performance, and robust weatherproofing, making it ideal for a range of surveillance applications.

Hanwha Vision XNO-6120R-LPR Features

  • XNO-6120R camera with LPR Application pre-loaded and licensed for immediate use, saving setup time.
  • LPR Recognition System specifically designed for low-speed environments like parking lots and drive-thrus, ensuring accurate vehicle identification.
  • Edge-based LPR application on an open platform, eliminating the need for a dedicated server and reducing costs.
  • 2 Megapixel (1920 x 1080) resolution provides clear and detailed imaging for reliable recognition.
  • 5.2 ~ 62.4mm Optical Lens with 12X zoom allows for flexible installation and clear capture of distant plates.
  • Supports H.265, H.264, MJPEG codecs with multiple streaming options, providing versatile compatibility and bandwidth savings.
  • Advanced video analytics including loitering, directional detection, fog detection, and audio detection for enhanced situational awareness.
  • IR illumination with a readable length for LPR of 65 ft, ensuring performance in low-light conditions.
  • IP67 / IP66, NEMA 4X, and IK10 ratings guarantee durability against harsh weather and vandalism.
  • LDC Support (Lens Distortion Correction) enhances image quality by reducing distortion effects.
  • Power over Ethernet (PoE), 24V AC, and 12V DC options with bi-directional audio support for flexible installation.

Detailed Camera Specifications

Camera TypeOutdoor License Plate Recognition Network Bullet Camera
Resolution2 Megapixel (1920 x 1080)
Lens5.2 ~ 62.4mm (Optical 12X)
CompressionH.265, H.264, MJPEG
IR Readable Length65 ft
Weather ResistanceIP67 / IP66, NEMA 4X
Vandal ResistanceIK10
Operating Temperature-40°F ~ +131°F (-40°C ~ +55°C)
Power Supply12VDC / 24VAC / PoE
Analytics FeaturesLoitering, Directional detection, Fog detection, Audio detection
SKU  XNO-6120R-LPR
Features  Audio, Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Digital Zoom, Mirror, Motion Detection Tracking, ONVIF, Privacy Masking, Wide Dynamic Range
Manufacturer  Hanwha Vision
NDAACompliant
Camera Signal     Network IP
Connection Type  Wired
Infrared Distance    61~100 Feet
Resolution    2 Megapixel
Lens Type    Varifocal
Mount Type  Ceiling, Wall
Compression Method    H.264, M-JPEG, H.265
Durability    Vandal Resistant, Weather Resistant
Voltage  12vDC, 24vAC, PoE
Automatic Gain Control (AGC)    Off / Low / Middle / High
Dimensions (W x H)  Ø91.0 x 368.6mm (3.58" x 14.51")
Electronic Shutter    Minimum / Maximum / Anti Flicker (2 ~ 1/12,000sec)
Image Device    1/2.8" 2MP CMOS
Image Pixels Total1,945(H) x 1,109(V) 2.16MP
Image Pixels-Effective1,945(H) x 1,097(V) 2.13MP
Minimum Scene Illumination  Color: 0.03Lux (F1.6), B/W: 0Lux (IR LED on)
Operating Humidity    Less than 90% RH
Operating Temperature    -40°C ~ +55°C (-40°F ~ +131°F)
Power Consumption  24V AC: Max 14.5W, 12V DC: Max 12.5W, PoE: Max 12.95W
Privacy Zone    Off / On (32ea, Rectanglular zones), Color: Gray / Green / Red / Blue / Black / White, Mosaic
Protocols  TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3 (MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, SRTP (TCP, UDP Unicast)
S/N Ratio  50dB
Scanning System    Progressive
Video Output    CVBS: 1.0 Vp-p / 75? Composite, 720 x 480 for Installation, USB: Micro USB Type B, 1280 x 720, for Installation
Weatherproof    IP66, IP67
Digital Noise Reduction    SSNRV (2D + 3D Noise filter) (Off / On)
Mirror    Off / On, Hallway: 90° /270°
Angle of View    H: 54.58?(Wide) ~ 5.30?(Tele) / V: 32.19?(Wide) ~ 3.00?(Tele) / D: 61.40?(Wide) ~ 6.06?(Tele)
Motion Detection Tracking    Off / On (8ea, 8Point polygonal zones), Handover
Back Light Compensation  Off / BLC / HLC / WDR
Automatic White Balance    ATW / AWC / Manual / Indoor / Outdoor (Included Mercury & Sodium)
IR Distance  19.81m/65ft
AudioYes
Auto Gain Control    Yes
Day/Night    Yes
Digital Noise Reduction    Yes
Automatic White Balance    Yes
Back Light Compensation    Yes
Motion Detection Tracking    Yes
Privacy Masking    Yes
Wide Dynamic Range    Yes
Mirror    Yes
ONVIF  Yes
Digital ZoomYes
