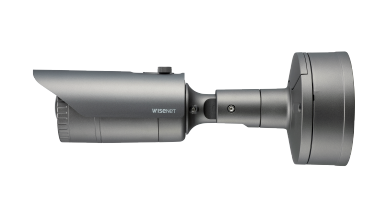

Hanwha Vision XNO-6010R 2 Megapixel Network IR Bullet Camera, 2.4mm Lens
SKU
XNO-6010R
Model No
XNO-6010R
$419.95
Product Highlights
- Max. 2megapixel (1920 x 1080) resolution
- Max. 60fps@all resolutions (H.265/H.264)
- H.265, H.264, MJPEG codec supported, Multiple streaming
- Day & Night (ICR), WDR (150dB), Defog
- Motion detection, Handover
Speak to an expert
2 Megapixel Network IR Bullet Camera, 2.4mm Lens
- The Hanwha Vision XNO-6010R is a cutting-edge 2 Megapixel network IR bullet camera equipped with a 2.4mm lens, designed for high-performance surveillance. This camera delivers exceptional image clarity, advanced analytics, and robust durability, making it an ideal choice for both indoor and outdoor security applications.
Camera Functions
Audio
Auto Gain Control
Auto White Balance
BLC
Day/Night Vision
3D DNR
Flickerless
Mirror
Motion Detection
On Screen Display Menu
ONVIF
Privacy Masking
Vandal Resistant
Weather Resistant
WDR
Camera Features
| Built-in 2.4mm fixed lens | Loitering, Directional detection, Fog detection, Digital auto tracking, Sound classification, Heatmap, People counting, Queue management, Tampering, Motion detection, Handover |
| Max. 60fps@all resolutions (H.265/H.264) | Dual SD slots (Max. 512GB), WiseStream II support |
| Day & Night (ICR), WDR (150dB) | IP67/IP66, NEMA 4X, IK10 |
Additional Hanwha Vision Products
SKU  | XNO-6010R |
|---|---|
| Features | Audio, Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Flickerless, Mirror, Motion Detection Tracking, On Screen Display Menu, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range |
| Manufacturer | Hanwha Vision |
| NDAA | Compliant |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | 0~60 Feet |
| Resolution | 2 Megapixel |
| Lens Type | Fixed |
| Lens Size | 2.4mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.265 |
| Durability | Vandal Resistant, Weather Resistant |
| Voltage | PoE |
| Automatic Gain Control (AGC) | Off / Low / Middle / High |
| Dimensions (W x H) | Ø70 x 301.5mm (Ø2.76" x 11.87") |
| Electronic Shutter | Minimum / Maximum / Anti flicker (2 ~ 1/12,000sec) |
| Image Device | 1/2.8" 2M CMOS |
| Image Pixels Total | 1,945(H) x 1,109(V) 2.16M |
| Image Pixels-Effective | 1,945(H) x 1,097(V) 2.13M |
| Minimum Scene Illumination | Color : 0.055Lux (F2.0, 1/30sec), B/W : 0Lux (IR LED on) |
| Operating Humidity | Less than 90% RH |
| Operating Temperature | -30°C ~ +55°C (-22°F ~ +131°F) |
| OSD Menu | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek |
| Power Consumption | Max. 8.8W (12VDC), Max 9.7W (PoE) |
| Privacy Zone | Off / On (32ea, Polygonal) - Color : Grey / Green / Red / Blue / Black / White, Mosaic |
| Protocols | TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour |
| S/N Ratio | 50dB |
| Scanning System | Progressive Scan |
| Video Output | CVBS : 1.0 Vpp / 75Ω composite |
| Weatherproof | IP67 |
| Digital Noise Reduction | SSNRV (2D+3D noise filter) (Off / On) |
| Mirror | Off / On, Hallway view : 90Ëš/270Ëš |
| Motion Detection Tracking | Off / On (8ea, 8point polygonal zones), Handover |
| Back Light Compensation | Off / BLC / HLC (Masking / Dimming), WDR |
| Automatic White Balance | ATW / AWC / Manual / Indoor / Outdoor (Included mercury & Sodium) |
| IR Distance | 15m/49.21ft |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Flickerless | Yes |
| Motion Detection Tracking | Yes |
| On Screen Display Menu | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| Mirror | Yes |
| ONVIF | Yes |
