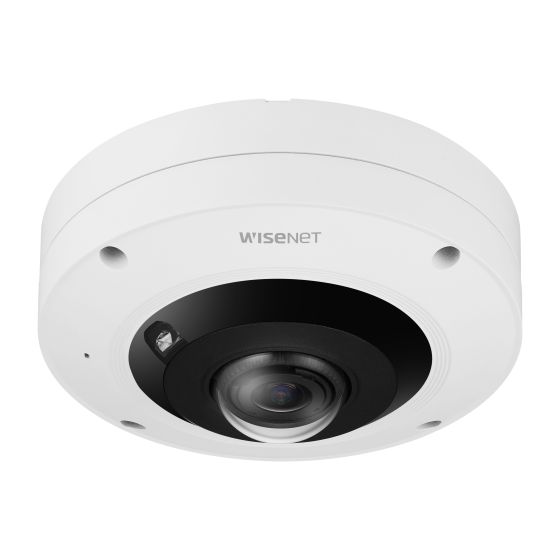

Hanwha Vision XNF-9013RV X series 12 Megapixel Sensor AI IR Outdoor Fisheye Camera with 1.08mm Lens

Name: Hanwha Vision XNF-9013RV X series 12 Megapixel Sensor AI IR Outdoor Fisheye Camera with 1.08mm Lens
Brand: Hanwha Vision
SKU: XNF-9013RV
Price: 861.13 USD
Availability: InStock

SKU

XNF-9013RV

Be the first to review this product

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Hanwha Vision XNF-9013RV X series 12 Megapixel Sensor AI IR Outdoor Fisheye Camera with 1.08mm Lens XNF-9013RV by Hanwha Vision

Model No

XNF-9013RV

$861.13

Add to Quote

Volume
Discounts

Free System
Design

Lifetime
Tech Support

Free Shipping
Over $450*

Add to Wishlist Add to Compare

Product Highlights

Wisenet Fisheye cameras are a perfect solution for situational awareness for large areas where you need complete coverage with no blindspots. Easily dewarp the image on-the-fly while recording the full fisheye image. No need to worry about a PTZ positioned in the wrong area!
AI Engine for forensic search and analytic event false alert reduction, Classified object type: Person/Face/Vehicle/License plate - Support Detection Shot
3008 x 3008 resolution, 30fps
1.08mm Stereographic type lens, enhanced resolution for the peripheral regions (187°X187°) W/ simple focus
Built-in IR for up coverage up to 42' with Wise IR II multi-zone IR management

Add to Wishlist Add to Compare

Speak to an expert

Call: 800.955.5201 | Request A Call | Live Chat | Message Support

Details

X series 12 Megapixel Sensor AI IR Outdoor Fisheye Camera with 1.08mm Lens

The XNF-9013RV from Hanwha Vision is a x series 12 megapixel sensor AI IR 360° outdoor fisheye camera with 1.08mm lens. This advanced camera offers complete coverage with no blind spots, leveraging AI technology for enhanced security and monitoring capabilities.

Camera Functions

Audio

Auto Gain Control

Auto White Balance

BLC

Day/Night Vision

3D DNR

Flickerless

Mirror

Motion Detection

ONVIF

Privacy Masking

Vandal Resistant

Weather Resistant

WDR

Camera Features


Wisenet Fisheye cameras are a perfect solution for situational awareness for large areas where you need complete coverage with no blindspots. Easily dewarp the image on-the-fly while recording the full fisheye image. No need to worry about a PTZ positioned in the wrong area!	Analytics events based on AI engine: Object detection (Person/Face/Vehicle/License plate), IVA (Virtual line/Area, Enter/Exit, Loitering, direction, intrusion)
AI Engine for forensic search and analytic event false alert reduction, Classified object type: Person/Face/Vehicle/License plate - Support Detection Shot	Analytics events: Defocus detection, Motion detection, Tampering, Fog detection, Audio detection, Sound classification
3008 x 3008 resolution, 30fps	Business Intelligence Based on AI engine: People counting, Queue management, Heatmap
1.08mm Stereographic type lens, enhanced resolution for the peripheral regions (187°X187°) W/ simple focus	Dual SD cards
Built-in IR for up coverage up to 42' with Wise IR II multi-zone IR management	Adjustable IR distance with WisePower: PoE+mode-13m, PoE mode-8m
Triple Codec: H.265, H.264 and MJPEG multiple streaming	Supports 12v DC
On board dewarping, Digital PTZ	IP66/IK10/NEMA4X
Fisheye, Single panorama, Double panorama, Quad view	Direct connect female shielded RJ45 connector for easy installation without pigtail
Multiple virtual channels for easy dewarping views	USB & analog video output for easy installation
WiseStream III compression technology	Hard-coated dome cover for durability
extreme WDR by scene Analysis and Local contrast enhancement	TPM 2.0 (FIPS 140-2 certified), Secure OS/boot/storage, Verified FW forgery

Specifications

SKU	XNF-9013RV
Features	Audio, Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Flickerless, Mirror, Motion Detection Tracking, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range
Manufacturer	Hanwha Vision
Camera Signal	Network IP
Connection Type	Wired
Infrared Distance	0~60 Feet
Resolution	12 Megapixel
Lens Type	Fixed
Lens Size	1.08mm
Mount Type	Ceiling, Wall
Compression Method	H.264, M-JPEG, H.265
Durability	Vandal Resistant, Weather Resistant
Voltage	PoE+, 12vDC, PoE
Automatic Gain Control (AGC)	Off / Max Gain / Manual
Dimensions (W x H)	Ø160x72mm (6.23x2.84")
Electronic Shutter	Minimum / Maximum / Anti flicker (1/5~1/12,000sec) Prefer shutter control(Based on AI engine)
Image Device	1/2.3" 12MP CMOS
Minimum Scene Illumination	Color: 0.39 Lux (F2.2, 1/30sec), BW : 0Lux (IR LED on)
Operating Humidity	Less than 95% RH
Operating Temperature	-40°C ~ +60°C (-40°F ~ +140°F)
Power Consumption	PoE: Max 12.95W, typical 9.4W, 12VDC: Max 12.9W, typical 9.0W PoE+: Max 23.0W, typical 9.4W, 12VDC: Max 22.0W, typical 9.0W
Privacy Zone	32ea, polygonal zones - Color: Grey/Green/Red/Blue/Black/White - Mosaic
Protocols	IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP (TCP, UDP Unicast)
Weatherproof	IP66
Digital Noise Reduction	WiseNRⅡ(Based on AI engine), SSNRⅤ
Angle of View	H: 187° / V: 187° / D: 187°
Motion Detection Tracking	8ea, 8point polygonal zones
Back Light Compensation	BLC, HLC, WDR, SSDR
Automatic White Balance	ATW / Narrow ATW / AWC / Manual / Indoor / Outdoor
IR Distance	Wise IR, PoE : 8m/26.25ft, PoE+ : 13m/42.65ft
Audio	Yes
Auto Gain Control	Yes
Day/Night	Yes
Digital Noise Reduction	Yes
Automatic White Balance	Yes
Back Light Compensation	Yes
Flickerless	Yes
Motion Detection Tracking	Yes
Privacy Masking	Yes
Wide Dynamic Range	Yes
Mirror	Yes
ONVIF	Yes
