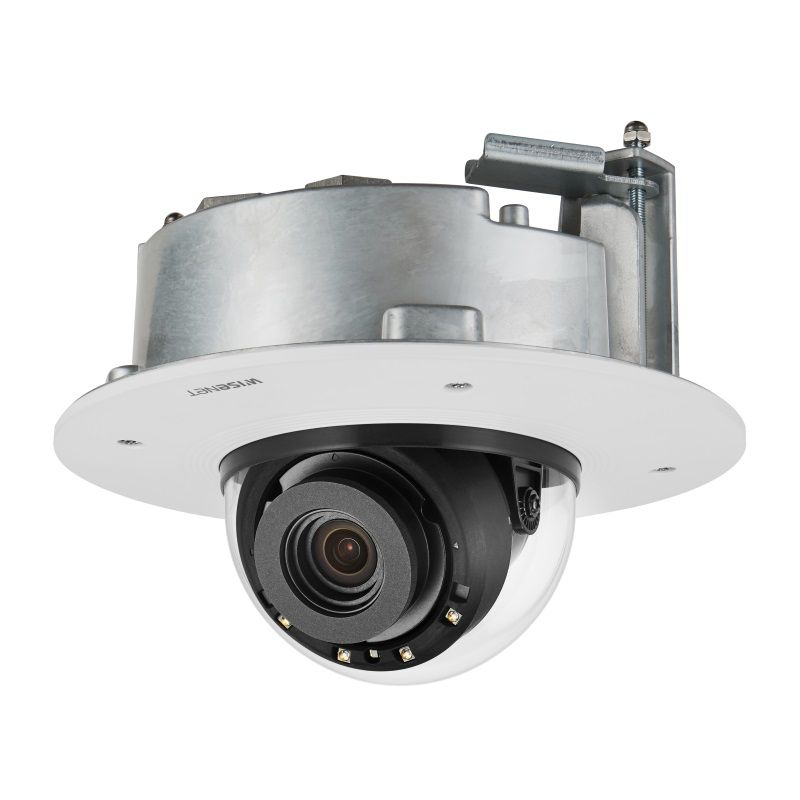

Hanwha Vision XND-8082RF 6 Megapixel Flush Mount IR Network Dome Camera, 2.8-8.4mm Lens
SKU
XND-8082RF
Model No
XND-8082RF
$1,007.50
Product Highlights
- 6MP resolution
- 2.8~8.4mm(3x) motorized varifocal
- [email protected] (Color), 0Lux (B/W, IR LED on)
- Max.30fps@6MP (H.265/H.264)
- IR viewable length 131ft (40m)
Speak to an expert
6 Megapixel Flush Mount IR Network Dome Camera, 2.8-8.4mm Lens

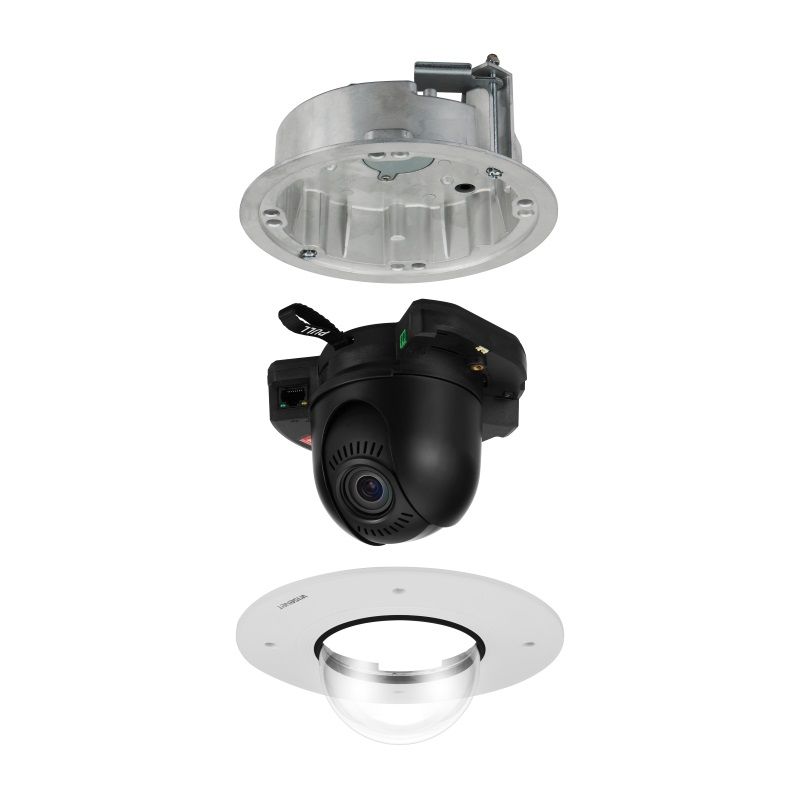

- The Hanwha Vision XND-8082RF is a cutting-edge 6 Megapixel flush mount IR network dome camera designed for superior surveillance performance. Featuring a motorized vari-focal lens and advanced video analytics, this camera ensures optimal monitoring in various lighting conditions. Its modular design allows for easy installation and configuration, while the robust cybersecurity features provide peace of mind for secure operations.
Camera Functions
Audio
Auto Gain Control
Auto White Balance
BLC
Day/Night Vision
3D DNR
Flickerless
Mirror
Motion Detection
On Screen Display Menu
ONVIF
Privacy Masking
Vandal Resistant
Camera Features
| 6MP resolution | DIS with built-in Gyro sensor |
| 2.8~8.4mm (3x) motorized varifocal | Video Analytics (Defocus detection, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection, Sound classification, Shock detection |
| [email protected] (Color), 0Lux (B/W, IR LED on) | Face/upper body detection, Fog detection, Motion detection, Digital auto tracking) |
| Max.30fps@6MP (H.265/H.264) | Dual SD slots (Maximum total capacity 512GB) |
| IR viewable length 131ft (40m) | Modular structure, PoE support |
| Day & Night (ICR), extreme WDR | IP52, Plenum rated, IK10 |
Additional Hanwha Vision Products
SKU  | XND-8082RF |
|---|---|
| Features | Audio, Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Flickerless, Mirror, Motion Detection Tracking, On Screen Display Menu, ONVIF, Privacy Masking, Vandal Resistant |
| Manufacturer | Hanwha Vision |
| NDAA | Compliant |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | 101 Feet + |
| Resolution | 6 Megapixel |
| Lens Type | Varifocal |
| Mount Type | In-Ceiling |
| Compression Method | H.264, M-JPEG, H.265 |
| Durability | Indoor, Vandal Resistant |
| Voltage | 12vDC, PoE |
| Dimensions (W x H) | Ø205x163mm(8.07x6.42") |
| Electronic Shutter | 1/5~1/12,000sec |
| Image Device | 1/2.8"CMOS |
| Minimum Scene Illumination | Color: 0.05Lux (F1.2, 1/30sec), B/W: 0Lux (IR LED On) |
| Operating Humidity | Less than 95% RH (non condensing) |
| Operating Temperature | -25°C ~ +60°C (-13°F ~ +140°F) |
| OSD Menu | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek |
| Power Consumption | PoE: Maximum 12.95W, typical 10.7W, 12VDC: Maximum 11.5W, typical 9.0W |
| Privacy Zone | 32ea, polygonal zones |
| Protocols | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP (TCP, UDP Unicast) |
| Video Output | RJ-45 (10/100/1000BASE-T) |
| Zoom Ratio | 3x |
| Angle of View | H: 114°(Wide)~40.2°(Tele) / V: 62.0°(Wide)~22.5°(Tele) / D:133.0°(Wide)~46.3°(Tele) |
| Motion Detection Tracking | 8ea, 8point Polygonal zones |
| Automatic White Balance | ATW / Narrow ATW / AWC / Manual / Indoor / Outdoor |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Flickerless | Yes |
| Motion Detection Tracking | Yes |
| On Screen Display Menu | Yes |
| Privacy Masking | Yes |
| Mirror | Yes |
| ONVIF | Yes |
