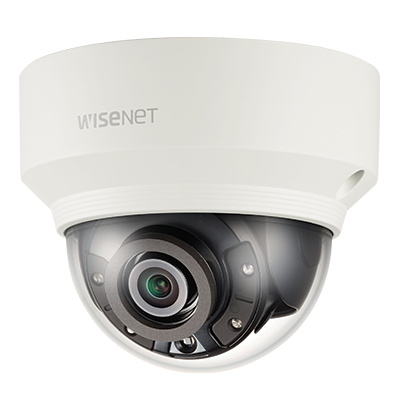

Hanwha Vision XND-8040R 5 Megapixel Network IR Dome Camera, 7mm Lens
SKU
XND-8040R
Model No
XND-8040R
$497.93
Product Highlights
- Max. 5megapixel (2560 x 1920) resolution
- Max. 30fps@all resolutions (H.265/H.264)
- H.265, H.264, MJPEG codec supported, Multiple streaming
- Day & Night (ICR), WDR (120dB), Defog
- Motion detection, Handover
Speak to an expert
5 Megapixel Network IR Dome Camera, 7mm Lens
- The Hanwha Vision XND-8040R is a high-performance 5 Megapixel network IR dome camera featuring a 7mm lens, designed for superior surveillance capabilities. With advanced imaging technologies and multiple smart detection features, this camera ensures optimal monitoring in various environments, delivering sharp, clear video even in low-light conditions.
Camera Functions
Audio
Auto Gain Control
Auto White Balance
BLC
Day/Night Vision
3D DNR
Flickerless
Mirror
Motion Detection
On Screen Display Menu
ONVIF
Privacy Masking
Vandal Resistant
WDR
Camera Features
| Built-in 7.0mm fixed lens | Motion detection, Handover |
| Max. 30fps@all resolutions (H.265/H.264) | Dual SD slots (Max. 512GB), WiseStream II support |
| Loitering, Directional detection, Fog detection, Digital auto tracking, Sound classification, Heatmap, People counting, Queue management, Tampering | IR viewable length 30m, IK08 |
Additional Hanwha Vision Products
SKU  | XND-8040R |
|---|---|
| Features | Audio, Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Flickerless, Mirror, Motion Detection Tracking, On Screen Display Menu, ONVIF, Privacy Masking, Vandal Resistant, Wide Dynamic Range |
| Manufacturer | Hanwha Vision |
| NDAA | Compliant |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | 61~100 Feet |
| Resolution | 5 Megapixel |
| Lens Type | Fixed |
| Lens Size | 7mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.265 |
| Durability | Vandal Resistant |
| Voltage | PoE |
| Automatic Gain Control (AGC) | Off / Low / Middle / High |
| Dimensions (W x H) | Ø110.0 x 90.0mm (Ø4.33" x 3.54") |
| Electronic Shutter | Minimum / Maximum / Anti flicker (2 ~ 1/12,000sec) |
| Image Device | 1/1.8" 6M CMOS |
| Image Pixels Total | 3,096(H) x 2,094(V) |
| Image Pixels-Effective | 2,616(H) x 1,976(V) |
| Minimum Scene Illumination | Color : 0.16Lux (F1.6, 1/30sec), B/W : 0Lux (IR LED on) |
| Operating Humidity | Less than 90% RH |
| Operating Temperature | -10°C ~ +55°C (+14°F ~ +131°F) |
| OSD Menu | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek |
| Power Consumption | Max. 8W (12VDC), Max. 9W (PoE) |
| Privacy Zone | Off / On (32ea, Polygonal) - Color : Grey / Green / Red / Blue / Black / White, Mosaic |
| Protocols | TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour |
| S/N Ratio | 50dB |
| Scanning System | Progressive Scan |
| Video Output | CVBS : 1.0 Vpp / 75Ω composite |
| Digital Noise Reduction | SSNRV (2D+3D noise filter) (Off / On) |
| Mirror | Off / On, Hallway view : 90Ëš/270Ëš |
| Angle of View | H : 50.7Ëš / V : 37.8Ëš / D : 63.8Ëš |
| Rotation Angle | 0° ~ 355° |
| Motion Detection Tracking | Off / On (8ea, 8point polygonal zones), Handover |
| Back Light Compensation | Off / BLC / HLC (Masking / Dimming), WDR |
| Automatic White Balance | ATW / AWC / Manual / Indoor / Outdoor (Included mercury & Sodium) |
| IR Distance | 30m/98.43ft |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Flickerless | Yes |
| Motion Detection Tracking | Yes |
| On Screen Display Menu | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| Mirror | Yes |
| ONVIF | Yes |
