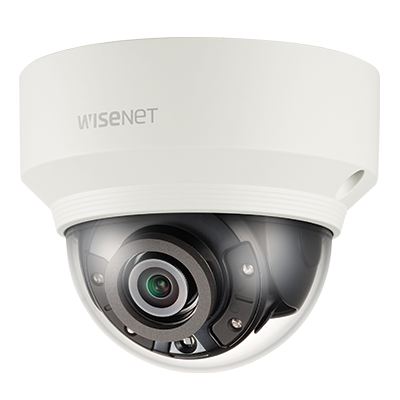

Hanwha Vision XND-8020R 5 Megapixel Network IR Dome Camera, 3.7mm Lens
SKU
XND-8020R
Model No
XND-8020R
$499.95
Product Highlights
- Max. 5 megapixel (2560 x 1920) resolution
- Max. 30fps@all resolutions (H.265/H.264)
- H.265, H.264, MJPEG codec supported, Multiple streaming
- Day & Night (ICR), WDR (120dB), Defog
- Motion detection, Handover
Speak to an expert
5 Megapixel Network IR Dome Camera, 3.7mm Lens
- The Hanwha Vision XND-8020R is a powerful 5 Megapixel network IR dome camera designed for high-resolution surveillance. With a built-in 3.7mm lens and advanced features like H.265 compression and a comprehensive set of detection capabilities, this camera provides exceptional image quality and intelligent monitoring to enhance security.
Camera Functions
Audio
Auto Gain Control
Auto White Balance
BLC
Day/Night Vision
3D DNR
Flickerless
Mirror
Motion Detection
On Screen Display Menu
ONVIF
Privacy Masking
Vandal Resistant
WDR
Camera Features
| Built-in 3.7mm fixed lens | Motion detection, Handover |
| Max. 30fps@all resolutions (H.265/H.264) | Dual SD slots (Max. 512GB), WiseStream II support |
| Loitering, Directional detection, Fog detection, Digital auto tracking, Sound classification, Heatmap, People counting, Queue management, Tampering | IR viewable length 30m, IK08 |
Additional Hanwha Vision Products
SKU  | XND-8020R |
|---|---|
| Features | Audio, Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Flickerless, Mirror, Motion Detection Tracking, On Screen Display Menu, ONVIF, Privacy Masking, Vandal Resistant, Wide Dynamic Range |
| Manufacturer | Hanwha Vision |
| NDAA | Compliant |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | 61~100 Feet |
| Resolution | 5 Megapixel |
| Lens Type | Fixed |
| Lens Size | 3.7mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.265 |
| Durability | Vandal Resistant |
| Voltage | PoE |
| Automatic Gain Control (AGC) | Off / Low / Middle / High |
| Dimensions (W x H) | Ø110.0 x 90.0mm (Ø4.33" x 3.54") |
| Electronic Shutter | Minimum / Maximum / Anti flicker (2 ~ 1/12,000sec) |
| Image Device | 1/1.8" 6M CMOS |
| Image Pixels Total | 3,096(H) x 2,094(V) |
| Image Pixels-Effective | 2,616(H) x 1,976(V) |
| Minimum Scene Illumination | Color : 0.16Lux (F1.6, 1/30sec), B/W : 0Lux (IR LED on) |
| Operating Humidity | Less than 90% RH |
| Operating Temperature | -10°C ~ +55°C (+14°F ~ +131°F) |
| OSD Menu | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek |
| Power Consumption | Max. 8W (12VDC), Max. 9W (PoE) |
| Privacy Zone | Off / On (32ea, Polygonal) - Color : Grey / Green / Red / Blue / Black / White, Mosaic |
| Protocols | TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour |
| S/N Ratio | 50dB |
| Scanning System | Progressive Scan |
| Video Output | CVBS : 1.0 Vpp / 75Ω composite |
| Digital Noise Reduction | SSNRV (2D+3D noise filter) (Off / On) |
| Mirror | Off / On, Hallway view : 90Ëš/270Ëš |
| Angle of View | H : 97.5Ëš / V : 71.9Ëš / D : 126.2Ëš |
| Rotation Angle | 0° ~ 355° |
| Motion Detection Tracking | Off / On (8ea, 8point polygonal zones), Handover |
| Back Light Compensation | Off / BLC / HLC (Masking / Dimming), WDR |
| Automatic White Balance | ATW / AWC / Manual / Indoor / Outdoor (Included mercury & Sodium) |
| IR Distance | 30m/98.43ft |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Flickerless | Yes |
| Motion Detection Tracking | Yes |
| On Screen Display Menu | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| Mirror | Yes |
| ONVIF | Yes |
