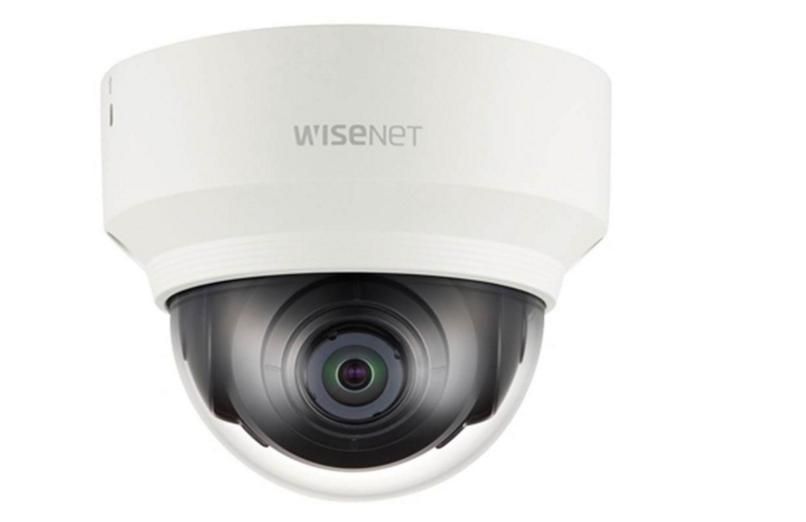

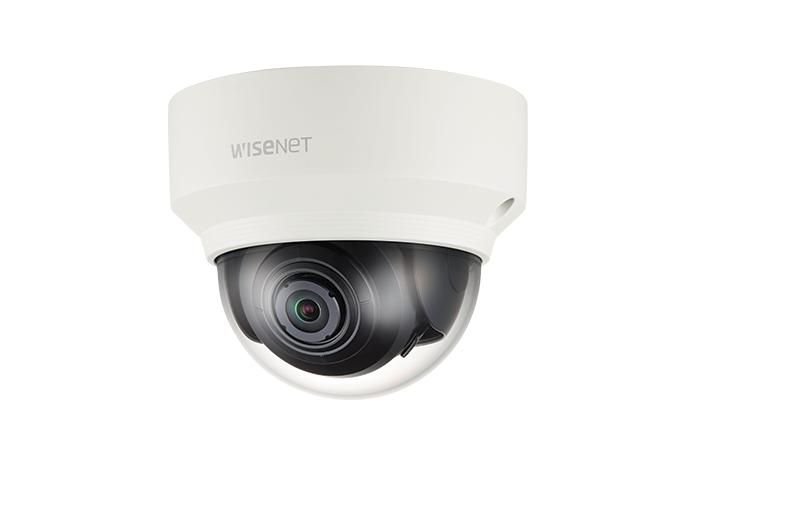

Hanwha Vision XND-6010 2 Megapixel Network IP Dome Camera, 2.4mm Lens
SKU
XND-6010
Model No
XND-6010
was $386.63 Special Price $378.99
Product Highlights
- Max. 2megapixel (1920 x 1080) resolution
- Built-in 2.4mm fixed lens
- Max. 60fps@all resolutions (H.265/H.264)
- H.265, H.264, MJPEG codec supported, Multiple streaming
- Day & Night (ICR), WDR (150dB), Defog
Speak to an expert
2 Megapixel Network IP Dome Camera, 2.4mm Lens
- The Hanwha Vision XND-6010 is a high-performance 2 megapixel network IP dome camera featuring a built-in 2.4mm lens. Designed for versatile surveillance applications, it delivers exceptional image quality with advanced features such as H.265 compression, powerful motion detection capabilities, and a range of intelligent analytics, making it an ideal choice for both indoor and outdoor monitoring.
Camera Functions
Audio
Auto Gain Control
Auto White Balance
BLC
Day/Night Vision
3D DNR
Mirror
Motion Detection
On Screen Display Menu
Onvif
Privacy Masking
Vandal Resistant
WDR
Camera Features
| Max. 2 megapixel (1920 x 1080) resolution | Loitering, directional detection, fog detection, audio detection, digital auto tracking, sound classification, heatmap, People counting, Queue management, Tampering |
| Built-in 2.4mm fixed lens | Motion detection, Handover |
| Max. 60fps@all resolutions (H.265/H.264) | SD/SDHC/SDXC memory slot (Max. 512GB) , PoE / 12V DC |
| H.265, H.264, MJPEG codec supported, multiple streaming | Hallway view, WiseStreamII support, IK08 |
| Day & Night (ICR) , WDR (150dB) , Defog | LDC support (Lens Distortion Correction) |
Additional Hanwha Vision Products
SKU  | XND-6010 |
|---|---|
| Features | Audio, Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Mirror, Motion Detection Tracking, On Screen Display Menu, ONVIF, Privacy Masking, Vandal Resistant, Wide Dynamic Range |
| Manufacturer | Hanwha Vision |
| NDAA | Compliant |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | 0~60 Feet |
| Resolution | 2 Megapixel |
| Lens Type | Fixed |
| Lens Size | 2.4mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.265 |
| Durability | Vandal Resistant |
| Voltage | PoE |
| Automatic Gain Control (AGC) | Off / Low / Middle / High |
| Dimensions (W x H) | Ø110.0 x 90.0mm (Ø4.33" x 3.54") |
| Electronic Shutter | Minimum / Maximum / Anti flicker (2 ~ 1/12,000sec) |
| Image Device | 1/2.8" 2M CMOS |
| Image Pixels Total | 1,945(H) x 1,109(V) 2.16M |
| Image Pixels-Effective | 1,945(H) x 1,097(V) 2.13M |
| Minimum Scene Illumination | Color : 0.055Lux (F2.0, 1/30sec), B/W : 0.0055Lux (F2.0, 1/30sec) |
| Operating Humidity | Less than 90% RH |
| Operating Temperature | -10°C ~ +55°C (+14°F ~ +131°F) |
| OSD Menu | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek |
| Power Consumption | Max. 5.5W (12VDC), Max. 6W (PoE) |
| Privacy Zone | Off / On (32ea, Polygonal) - Color : Grey / Green / Red / Blue / Black / White, Mosaic |
| Protocols | TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour |
| S/N Ratio | 50dB |
| Scanning System | Progressive Scan |
| Video Output | CVBS : 1.0 Vpp / 75Ω composite, 720 x 480(N), 720 x 576(P), for installation, USB : micro USB type B, 1280 x 720 for installation |
| Digital Noise Reduction | SSNRV (2D+3D noise filter) (Off / On) |
| Mirror | Off / On, Hallway view : 90Ëš/270Ëš |
| Angle of View | H : 139.0Ëš / V : 73.0Ëš / D : 167.0Ëš |
| Motion Detection Tracking | Off / On (8ea, 8point polygonal zones), Handover |
| Back Light Compensation | Off / BLC / HLC (Masking / Dimming), WDR |
| Automatic White Balance | ATW / AWC / Manual / Indoor / Outdoor (Included mercury & Sodium) |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Motion Detection Tracking | Yes |
| On Screen Display Menu | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| Mirror | Yes |
| ONVIF | Yes |
