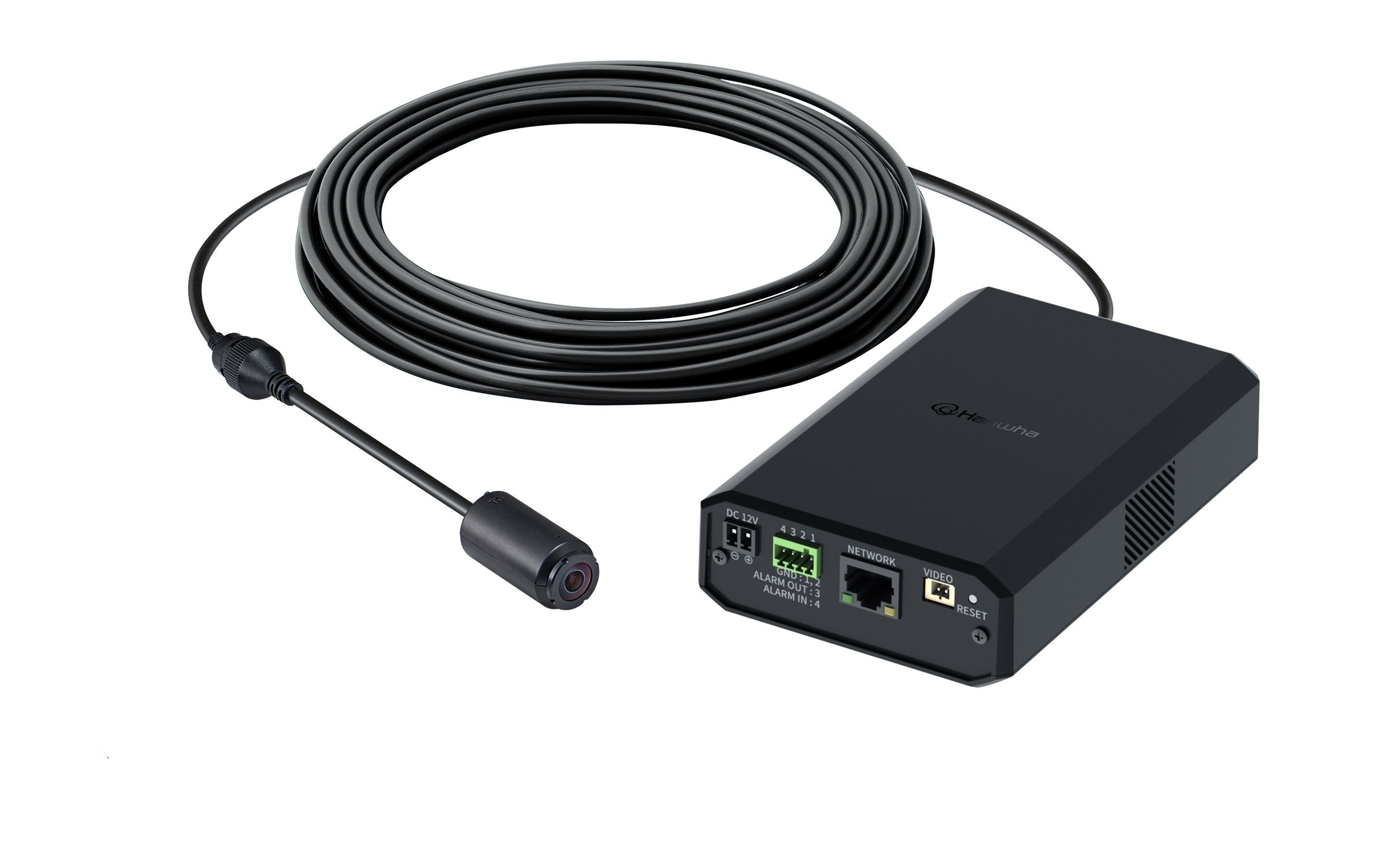

Hanwha Vision XNB-H6244A 2 Megapixel Network Mini Board Camera with 2.4mm Lens
SKU
XNB-H6244A
Model No
XNB-H6244A
$541.87
Product Highlights
- 2 Megapixel (1920 x 1080) resolution
- H.265, H.264, MJPEG codec support, Multiple streaming
- Max. 60fps@2MP (H.265 / H.264)
- extremeWDR (120dB), Defog, DIS, WiseStreamII
- Tampering, Loitering, Directional detection, Fog detection
Speak to an expert
2 Megapixel Network Mini Board Camera with 2.4mm Lens
- Introducing the Hanwha Vision XNB-H6244A, a cutting-edge 2 Megapixel Network Mini Board Camera designed for superior surveillance performance. Equipped with a 2.4mm lens offering a wide 138° field of view, this camera delivers stunning Full HD video at 60fps. Its advanced features include WiseStream II technology for efficient bandwidth usage, exceptional 120dB WDR for challenging lighting conditions, and robust analytics capabilities that enhance security monitoring, making it an ideal choice for various applications.
Camera Functions
Audio
Auto Gain Control
Auto White Balance
BLC
Day/Night Vision
3D DNR
Mirror
Motion Detection
ONVIF
Privacy Masking
WDR
Camera Features
| 2 Megapixel (1920 x 1080) resolution | Audio detection, Heatmap, Sound classification |
| H.265, H.264, MJPEG codec support, Multiple streaming | Queue management, Face detection, People counting |
| Max. 60fps@2MP (H.265 / H.264) | Motion detection, Handover |
| extremeWDR (120dB) , Defog, DIS, WiseStreamII | Kit includes: XNB-6002 main unit, SLA-T2415A lens, & STB-2000 ATM bracket |
| Tampering, Loitering, Directional detection, Fog detection |
Additional Hanwha Vision Products
SKU  | XNB-H6244A |
|---|---|
| Features | Audio, Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Mirror, Motion Detection Tracking, ONVIF, Privacy Masking, Wide Dynamic Range |
| Manufacturer | Hanwha Vision |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Resolution | 2 Megapixel |
| Lens Type | Fixed |
| Lens Size | 2.4mm |
| Mount Type | Bracket Required |
| Compression Method | H.264, MPEG-4, M-JPEG, H.265 |
| Durability | Indoor |
| Voltage | 12vDC, PoE |
| Automatic Gain Control (AGC) | Off / Max Gain / Manual |
| Dimensions (W x H) | 131.1 x 28 x 86mm (5.16" x 1.10" x 3.39") |
| Electronic Shutter | Minimum / Maximum / Prefer shutter / Anti flicker(2~1/12,000sec) |
| Image Device | 1/2.8" 2MP CMOS |
| Operating Humidity | Less than 90% RH |
| Operating Temperature | 10°C ~ +55°C (+14°F ~ +131°F) |
| Power Consumption | Max. 6.5W (12V DC), Max. 6W (PoE) |
| Privacy Zone | 32ea, 4point Quadrangle zones - Color: Gray, Green, Red, Blue, Black, White - Mosaic |
| Protocols | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP, SRTP(TCP, UDP Unicast) |
| Weatherproof | Indoor |
| Digital Noise Reduction | SSNRⅤ, WiseNR |
| Rotation Angle | Flip, Mirror, Hallway view(90°/270°) |
| Motion Detection Tracking | 8ea, 8point Polygonal zones |
| Back Light Compensation | BLC, HLC, WDR, SSDR |
| Automatic White Balance | ATW / Narrow ATW / AWC / Manual / Indoor / Outdoor |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Motion Detection Tracking | Yes |
| Wide Dynamic Range | Yes |
| Mirror | Yes |
| ONVIF | Yes |
