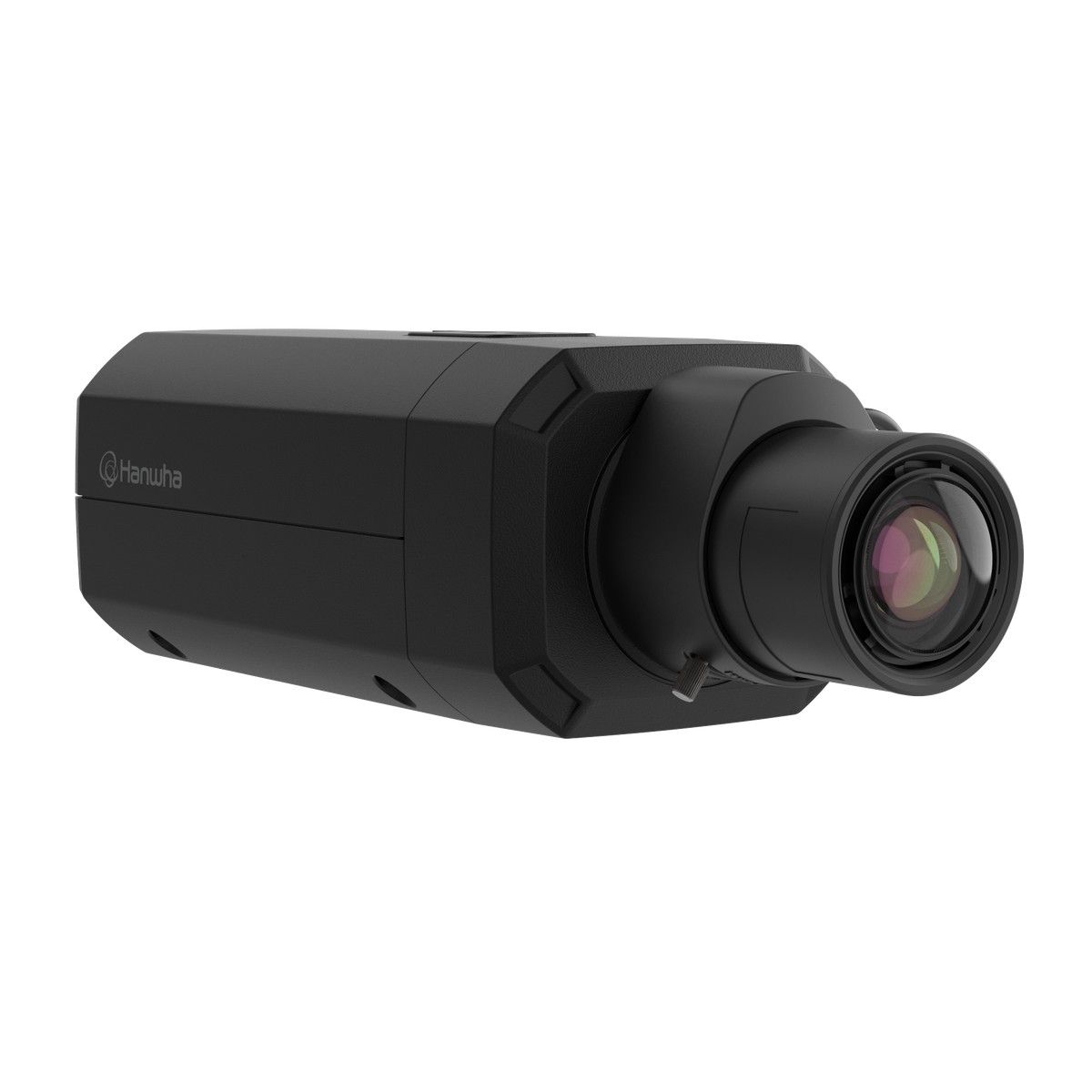

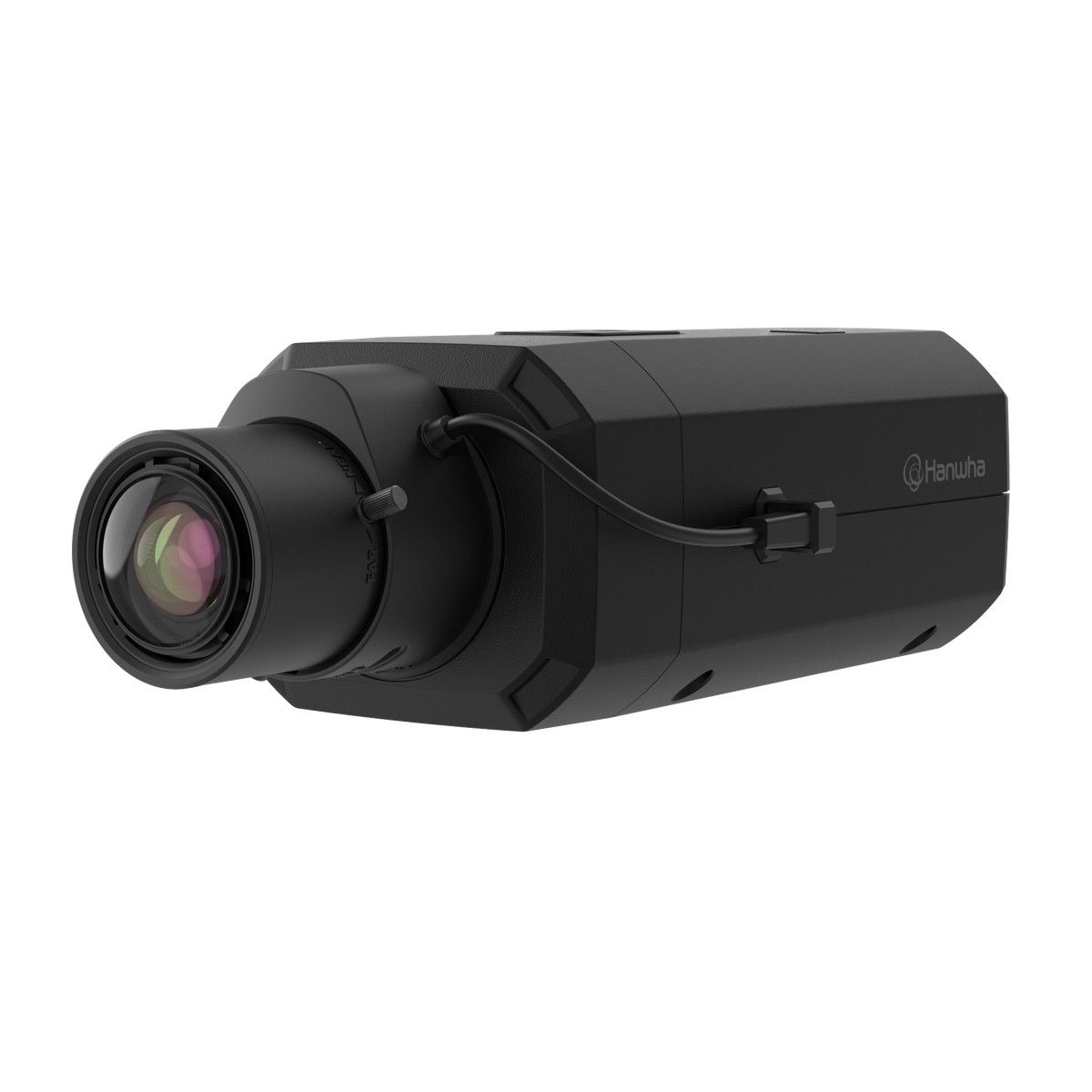

Hanwha Vision XNB-A9004 8 Megapixel Network AI Box Camera
SKU
XNB-A9004
Model No
XNB-A9004
$849.41
Product Highlights
- 8MP resolution
- Dual NPU for AI-based Image enhancement
- H.265/H.264: Max. 30fps/25fps(60Hz/50Hz)
- MJPEG: Max. 30fps (@8MP Max. 5fps)
- Analytics events based on AI engine : Object detection (Person/Face/Vehicle/License plate), IVA (Virtual line/Area, Enter/Exit, Loitering
- Direction, Intrusion), Slip&Fall detection, Face mask detection, Social distancing detection, Motion detection
Speak to an expert
8 Megapixel Network AI Box Camera
- The Hanwha Vision XNB-A9004 is an advanced 8 megapixel AI-powered network box camera built for high-detail surveillance and intelligent monitoring applications. Delivering ultra-high-resolution imaging with AI analytics, this camera improves detection accuracy and situational awareness across large or sensitive environments. Its flexible box camera configuration supports varied lens options, making it ideal for enterprise, transportation, and industrial surveillance deployments.
Camera Functions
Audio
Auto Gain Control
Auto White Balance
BLC
Day/Night Vision
3D DNR
Flickerless
Mirror
Motion Detection
ONVIF
Privacy Masking
WDR
Facial Recognition
Camera Features
| 8MP resolution | Direction, Intrusion) , Slip&Fall detection, Face mask detection, Social distancing detection, Motion detection |
| Dual NPU for AI-based Image enhancement | Business intelligence based on AI engine: People/Vehicle/Crowd counting, Queue management, Heatmap |
| H.265/H.264: Max. 30fps/25fps (60Hz/50Hz) | Support BestShot and full attributes |
| MJPEG: Max. 30fps (@8MP Max. 5fps) | Support Dynamic Privacy Masking extremeWDR, WiseNRâ…¡ (Based on AI engine) , WiseStream (Based on AI engine) |
| Analytics events based on AI engine: Object detection (Person/Face/Vehicle/License plate) , IVA (Virtual line/Area, Enter/Exit, Loitering | Device certificate (Hanwha Vision Root CA) , Secure storage (Secure element with FIPS 140-3 level3/CC EAL6+ certified) , SBOM |
Additional Hanwha Vision Products
SKU  | XNB-A9004 |
|---|---|
| Features | Audio, Auto Gain Control, AI Analytics, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Flickerless, Mirror, Motion Detection Tracking, ONVIF, Privacy Masking, Wide Dynamic Range, Facial Recognition |
| Manufacturer | Hanwha Vision |
| NDAA | Compliant |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Resolution | 8 Megapixel |
| Mount Type | Bracket Required |
| Compression Method | H.264, M-JPEG, H.265 |
| Voltage | 12vDC, PoE |
| Automatic Gain Control (AGC) | Off, Max gain, Manual |
| Dimensions (W x H) | 81(W)x67(H)x165(D)mm(3.19x2.64x6.48") |
| Electronic Shutter | 2~1/30,000sec |
| Image Device | 1/1.8" CMOS |
| Minimum Scene Illumination | 0.004 |
| Operating Humidity | 0~95% RH(non-condensing) |
| Operating Temperature | -10°C~+55°C(+14°F~+131°F) |
| Power Consumption | Max. 10.7W |
| Digital Noise Reduction | WiseNRâ…¡(Based on AI engine), SSNRâ…¤ |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Flickerless | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| Mirror | Yes |
| ONVIF | Yes |
