Hanwha Vision XNB-9002 4K Network Box Camera

Name: Hanwha Vision XNB-9002 4K Network Box Camera
Brand: Hanwha Vision
SKU: XNB-9002
Price: 650.00 USD
Availability: InStock

SKU

XNB-9002

Be the first to review this product

Skip to the end of the images gallery

Skip to the beginning of the images gallery

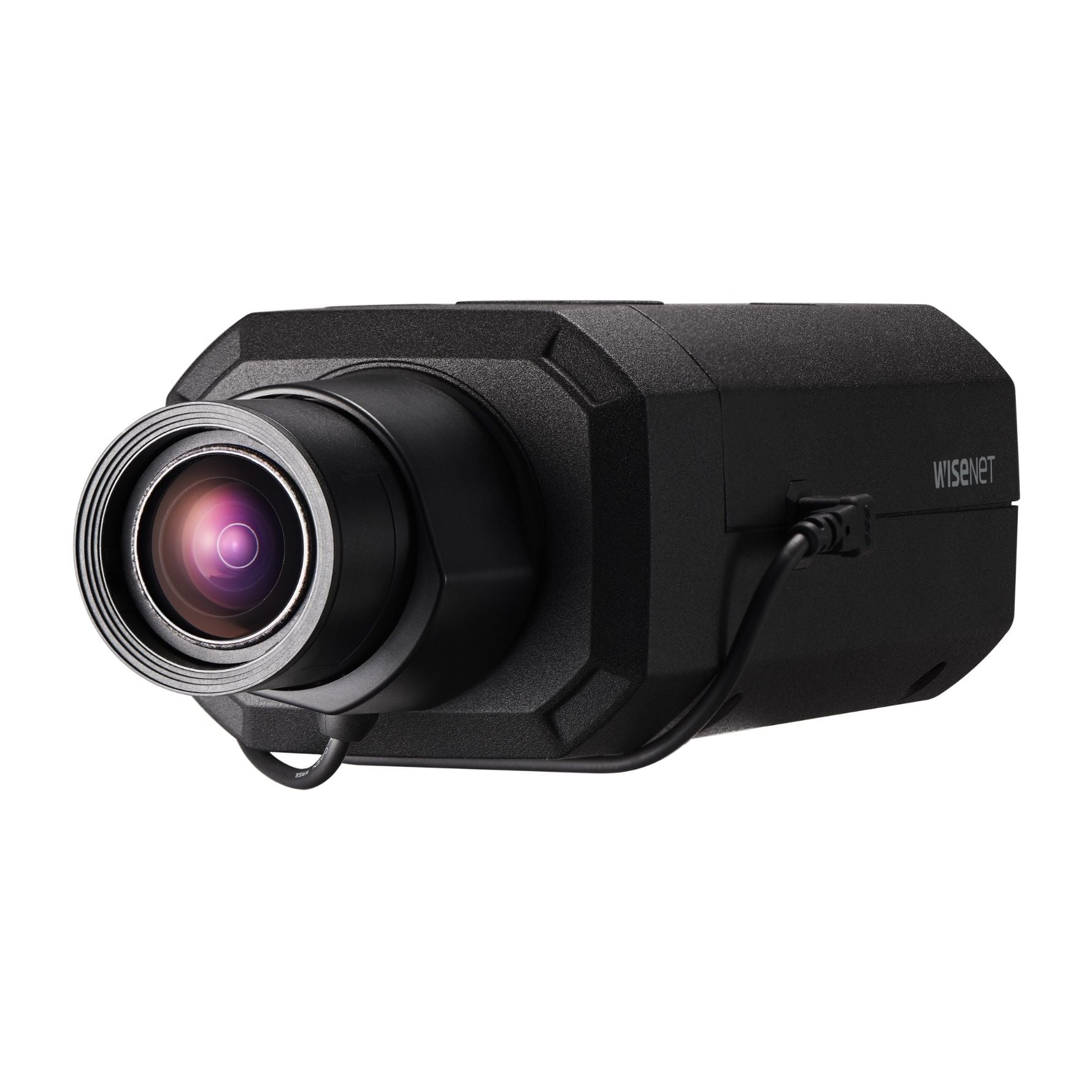

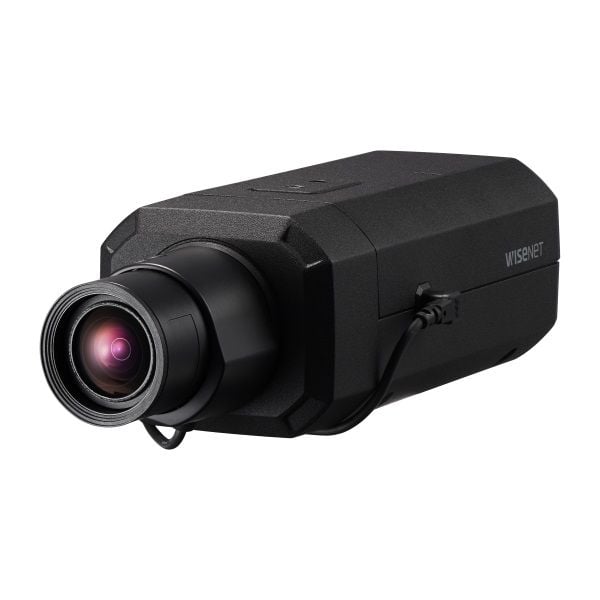

Hanwha Vision XNB-9002 4K Network Box Camera XNB-9002 by Hanwha Vision

Model No

XNB-9002

$650.00

Add to Quote

Volume
Discounts

Free System
Design

Lifetime
Tech Support

Free Shipping
Over $450*

Add to Wishlist Add to Compare

Product Highlights

4K resolution
[email protected] (Color), 0.005Lux(B/W)
30fps@4K (H.265/H.264)
Day & Night (ICR), extreme WDR
DIS with built-in Gyro sensor

Add to Wishlist Add to Compare

Speak to an expert

Call: 800.955.5201 | Request A Call | Live Chat | Message Support

Details

4K Network Box Camera

The XNB-9002 from Hanwha Vision is a state-of-the-art 4K network box camera, designed for superior surveillance and monitoring. Powered by Wisenet 7 technology, it offers impressive features such as advanced video analytics, a wide dynamic range, and easy installation options, making it an ideal choice for various security applications.

Camera Functions

Audio

Auto Gain Control

Auto White Balance

BLC

Day/Night Vision

3D DNR

Flickerless

Mirror

Motion Detection

On Screen Display Menu

ONVIF

Privacy Masking

4K Resolution

Camera Features


4K resolution	Video Analytics (Defocus detection, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection, Sound classification, Shock detection
[email protected] (Color), 0.005Lux (B/W)	Face/upper body detection, Fog detection, Motion detection, Digital auto tracking, PTZ handover
30fps@4K (H.265/H.264)	Dual SD slots (Maximum total capacity 512GB)
Day & Night (ICR), extreme WDR	WiseStream II support
DIS with built-in Gyro sensor

Specifications

SKU	XNB-9002
Features	Audio, Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Flickerless, Mirror, Motion Detection Tracking, On Screen Display Menu, ONVIF, Privacy Masking, 4K Resolution
Manufacturer	Hanwha Vision
NDAA	Compliant
Camera Signal	Network IP
Connection Type	Wired
Infrared Distance	Non Infrared
Resolution	3840 X 2160
Lens Type	Not Included
Mount Type	Bracket Required
Compression Method	H.264, H.265
Durability	Indoor
Voltage	12vDC, 24vAC, PoE
Dimensions (W x H)	81(W)x67(H)x165(D)mm (3.19x2.64x6.48")
Electronic Shutter	1/5~1/12,000sec
Image Device	1/2.8" CMOS
Minimum Scene Illumination	Color: 0.05Lux (F1.2, 1/30sec), B/W: 0.005Lux
Operating Humidity	Less than 95% RH (non condensing)
Operating Temperature	-10°C ~ +55°C(+14°F ~ +131°F)
OSD Menu	English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
Power Consumption	PoE: Maximum 12.95W, typical 8.2W, 12VDC: Maximum 11.5W, typical 7.5W, 24VAC: Maximum 13.5W, typical 8.9W
Privacy Zone	32ea, polygonal zones
Protocols	IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP (TCP, UDP Unicast)
Video Output	RJ-45 (10/100/1000BASE-T)
Motion Detection Tracking	8ea, 8point Polygonal zones
Automatic White Balance	ATW / Narrow ATW / AWC / Manual / Indoor / Outdoor
Audio	Yes
Auto Gain Control	Yes
Day/Night	Yes
Digital Noise Reduction	Yes
Automatic White Balance	Yes
Back Light Compensation	Yes
Flickerless	Yes
Motion Detection Tracking	Yes
On Screen Display Menu	Yes
Privacy Masking	Yes
Mirror	Yes
ONVIF	Yes
