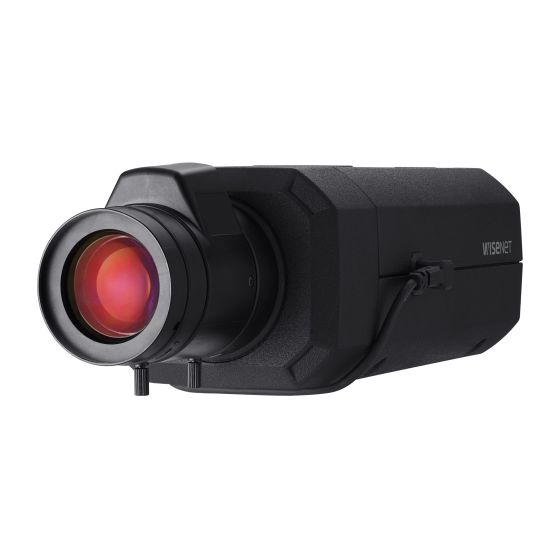

Hanwha Vision XNB-6003-KEX 2 Megapixel Network IP AI Box Camera, TAA Compliant
SKU
XNB-6003-KEX
Model No
XNB-6003-KEX
$556.51
Product Highlights
- 2MP resolution
- Color: 0.007 Lux (F1.2, 1/30sec, 30IRE), BW: 0.0007 Lux (F1.2, 1/30sec, 30IRE)
- Maximum 120 fps (H.265/H.264)
- Day & Night (ICR), extremeWDR (150dB)
- WiseNR(Based on AI engine), WiseStream III(Based on AI engine)
Speak to an expert
2 Megapixel Network IP AI Box Camera, TAA Compliant
- The Hanwha Vision XNB-6003-KEX is a TAA Compliant X-Plus series AI box camera powered by Wisenet 7, delivering 2MP resolution at an ultra-smooth 120fps. With extremeWDR (150dB), Day & Night (ICR), and DIS with built-in Gyro sensor, it ensures uncompromising clarity in any environment.
Driven by an advanced AI engine, it offers object detection (person, face, vehicle, license plate) and intelligent video analytics including virtual line, area monitoring, loitering, intrusion, and directional analysis. Additional event detection features include motion, tampering, defocus, fog, audio, sound classification, shock, and appear/disappear monitoring.
Designed for reliability and security, it supports dual micro SD cards (up to 512GB x2), FIPS 140-2 compliance, and versatile power options (PoE+/12VDC) with a metal-shielded RJ-45 port. Installation is simple with a USB port, making it ideal for mission-critical surveillance.
Camera Functions
Audio
Auto Gain Control
Auto White Balance
BLC
Day/Night Vision
3D DNR
Mirror
Motion Detection
ONVIF
Privacy Masking
WDR
Facial Recognition
Camera Features
| 2MP resolution | Analytics events based on AI engine (NPU) : Object detection (Person/Face/Vehicle - car, truck, bus, bicycle, motorcycle/License plate) |
| Color: 0.007 Lux (F1.2, 1/30sec, 30IRE) , BW: 0.0007 Lux (F1.2, 1/30sec, 30IRE) | IVA (Virtual line/Area, Enter/Exit, Loitering, Direction, Intrusion) |
| Maximum 120 fps (H.265/H.264) | Analytics events: Defocus detection, Motion detection, Tampering, Fog detection |
| Day & Night (ICR) , extremeWDR (150dB) | Audio detection, Sound classification, Shock detection, Appear/Disappear |
| WiseNR (Based on AI engine) , WiseStream III (Based on AI engine) |
Additional Hanwha Vision Products
SKU  | XNB-6003-KEX |
|---|---|
| Features | Audio, Auto Gain Control, AI Analytics, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Mirror, Motion Detection Tracking, ONVIF, Privacy Masking, Wide Dynamic Range, Facial Recognition |
| Manufacturer | Hanwha Vision |
| NDAA | Compliant |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Resolution | 2 Megapixel |
| Lens Type | Not Included |
| Mount Type | Bracket Required |
| Compression Method | H.264, M-JPEG, H.265 |
| Voltage | 12vDC, PoE |
| Automatic Gain Control (AGC) | Off, Max gain, Manual |
| Dimensions (W x H) | 81(W)x67(H)x165(D)mm(3.19x2.64x6.48") |
| Electronic Shutter | 2~1/12,000sec |
| Image Device | 1/2.8" CMOS |
| Operating Humidity | 0~90% RH(non-condensing) |
| Operating Temperature | -10°C~+55°C(+14°F~+131°F) |
| Power Consumption | PoE: Max 12.95W, typical 9.8W 12VDC: Max 19W, typical 9.5W |
| Protocols | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP (TCP, UDP Unicast) |
| Digital Noise Reduction | WiseNRâ…¡(Based on AI engine), SSNRâ…¤ |
| Motion Detection Tracking | 8ea, 8point polygonal zones |
| Back Light Compensation | BLC, HLC, WDR, SSDR |
| Automatic White Balance | ATW, NarrowATW, AWC, Manual, Indoor, Outdoor |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| Mirror | Yes |
| ONVIF | Yes |
There are no related videos.
Write Your Own Review
Manuals & Specifications
XNB-6003-KEX-Specsheet XNB-KEX-User-Manual XNB-KEX-Quick-Start-Guide
