Hanwha Vision XNB-6002 2 Megapixel Remote Head Camera Main Module
SKU
XNB-6002
Model No
XNB-6002
$298.74
Product Highlights
- 2 Megapixel (1920 x 1080) resolution
- H.265, H.264, MJPEG codec support, Multiple streaming
- 60fps@2MP (H.265 / H.264)
- extremeWDR (120dB), Defog, DIS
- Advanced video analytics and sound classification and business analytics

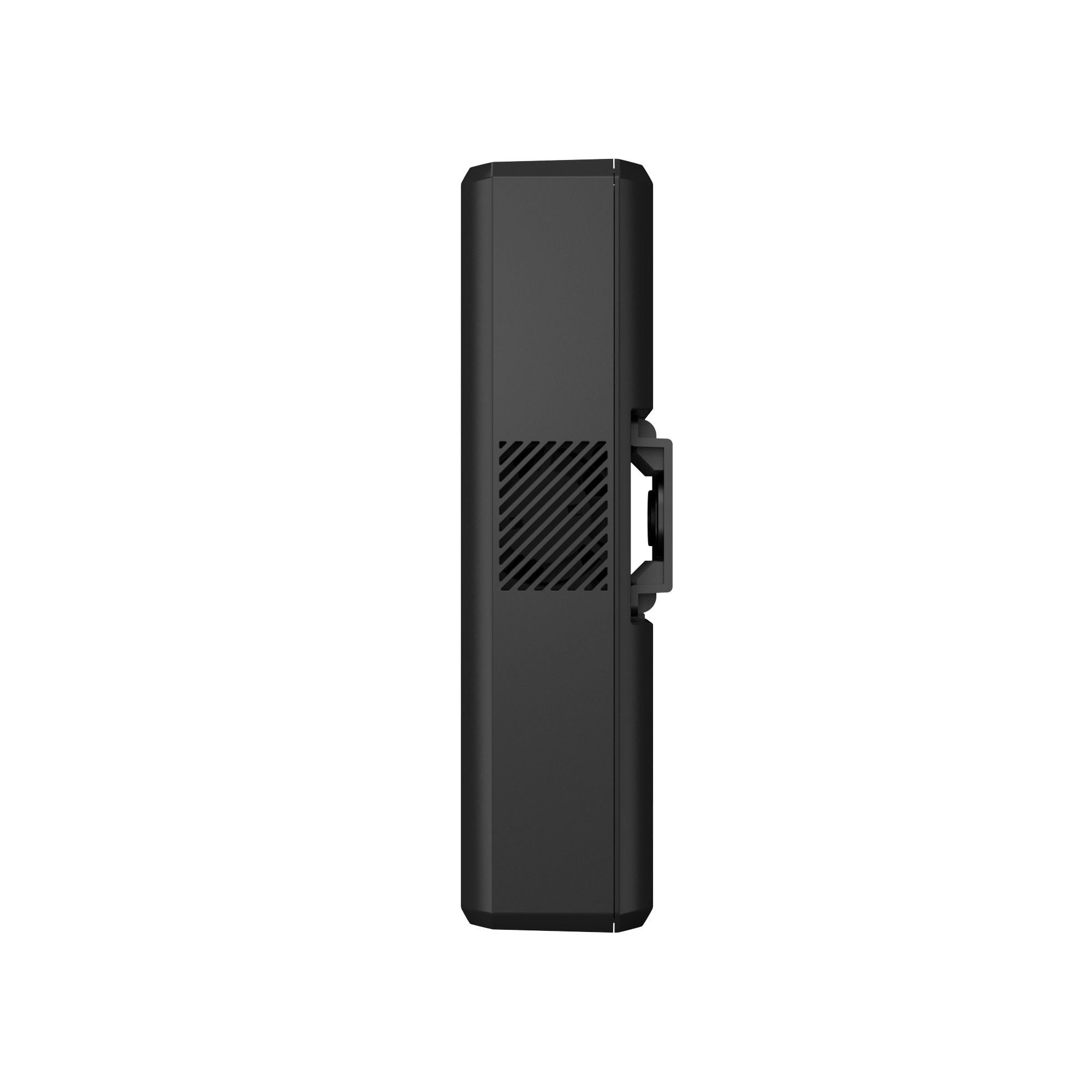

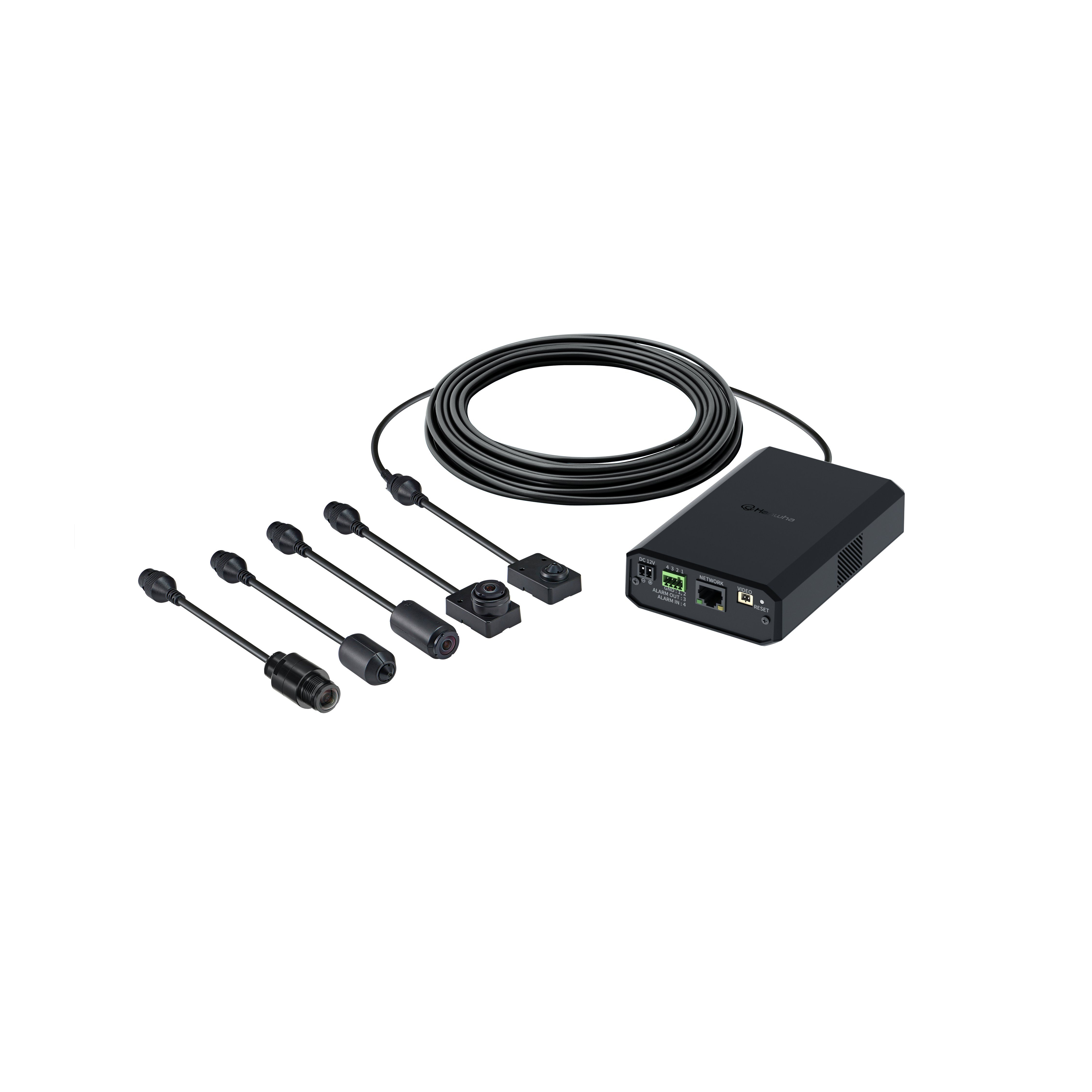

The XNB-6002 from Hanwha Vision is a 2 megapixel remote head camera mAIn module.
Features
- 2 Megapixel (1920 x 1080) resolution
- H.265, H.264, MJPEG codec support, Multiple streaming
- 60fps@2MP (H.265 / H.264)
- extremeWDR (120dB), Defog, DIS
- Advanced video analytics and sound classification and business analytics
- microSDXC Memory slot (Maximum 1 x 1TB), Hallway View, WiseStream II
- LDC, PoE / 12V DC, Bi-directional audio support
- TPM 2.0 (FIPS 140-2)
- Compatible lens modules (SLA-T2480A, SLA-T2480AV, SLA-T4680A, SLA-T4680AV)
SKU  |
XNB-6002 |
|---|---|
| Features |
Audio, Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Flickerless, Mirror, Motion Detection Tracking, ONVIF, Privacy Masking, Wide Dynamic Range |
| Manufacturer |
Hanwha Vision |
Camera Signal  |
Network IP |
| Connection Type |
Wired |
| Infrared Distance |
Non Infrared |
| Resolution |
2 Megapixel |
| Lens Type |
Not Included |
| Mount Type |
Bracket Required |
| Compression Method |
H.264, M-JPEG, H.265 |
| Durability |
Indoor |
| Voltage |
12vDC, PoE |
| Automatic Gain Control (AGC) |
Off / Max Gain / Manual |
| Dimensions (W x H) |
131.1 (W)x33.5 (H)x86 (D)mm (5.16x1.32x3.39") |
| Electronic Shutter |
Minimum / Maximum / Prefer shutter / Anti flicker(2~1/12,000sec) |
| Operating Humidity |
0~90% RH (non-condensing) |
| Operating Temperature |
-10°C~+55°C(+14°F~+131°F) |
| Power Consumption |
PoE: Max 10.5W, typical 6.9W 12VDC: Max 8.6W, typical 5.5W Power redundancy failover |
| Privacy Zone |
32ea, 4point Quadrangle zones - Color: Gray, Green, Red, Blue, Black, White - Mosaic |
| Protocols |
IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP, SRTP(TCP, UDP Unicast) |
| Digital Noise Reduction |
SSNRâ…¤, WiseNR |
| Motion Detection Tracking |
8ea, 8point Polygonal zones |
| Back Light Compensation |
BLC, HLC, WDR, SSDR |
| Automatic White Balance |
ATW / Narrow ATW / AWC / Manual / Indoor / Outdoor |
| Audio | Yes |
| Auto Gain Control |
Yes |
| Day/Night |
Yes |
| Digital Noise Reduction |
Yes |
| Automatic White Balance |
Yes |
| Back Light Compensation |
Yes |
| Flickerless |
Yes |
| Motion Detection Tracking |
Yes |
| Privacy Masking |
Yes |
| Wide Dynamic Range |
Yes |
| Mirror |
Yes |
| ONVIF |
Yes |
