Panasonic WV-X4170 9 Megapixel Network Indoor 360° Camera, 1.4mm Lens

SKU
WV-X4170

Panasonic Model WV-X4170

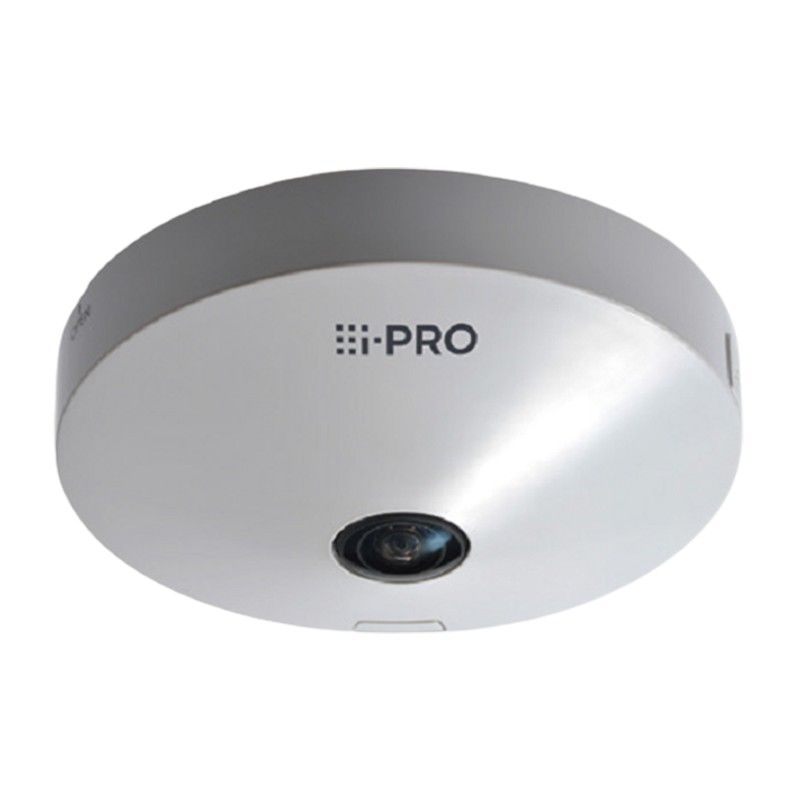

Panasonic WV-X4170 9 Megapixel Network Indoor 360° Camera, 1.4mm Lens

  • 9MP
  • 1.4mm
Free shipping
Model No
WV-X4170
$991.00
Volume Discounts Volume
Discounts
Free System Design Free System
Design
Lifetime Tech Support Lifetime
Tech Support
Free Shipping Over $450* Free Shipping
Over $450*
Product Highlights
  • 9 Megapixel fisheye images up to 30 fps
  • iA (intelligent Auto)
  • Super Dynamic 108dB
  • H.265 Smart Coding
  • FIPS 140-2 Level 1 compliant

Overview

Panasonic WV-X4170 captures the highest quality images in even very challenging and dynamic environments. In particular, the image of the person's face or object at the edge of the fisheye is clear with less distortion. Intelligent Auto (iA) monitors scene dynamics and motion to adjust key camera settings automatically in real-time reducing distortion such as motion blur on moving objects. Adopting H.265 Smart Coding technology, bandwidth efficiency is intelligently increased for longer recording and less storage. Out of the box, the camera supports full data encryption streaming and is compliant to FIPS 140-2 Level 1 standards to keep your video secured.

Panasonic WV-X4170 + Camera Features

  • 9 Megapixel: Capture high-resolution images at up to 30 fps, ensuring crystal clear footage for monitoring and analysis.
  • iA (Intelligent Auto): Automatically adjusts key settings in real-time based on scene dynamics, reducing distortion and motion blur.
  • Super Dynamic 108dB: Enhances the visibility of scenes with significantly different lighting by providing clear images in challenging environments.
  • H.265 Smart Coding: Increases bandwidth efficiency, allowing for longer recording times and less storage space requirements without sacrificing quality.
  • FIPS 140-2 Level 1 compliant: Ensures that your video data is secured and encrypted, meeting high security standards for sensitive environments.

Panasonic WV-X4170 + Detailed Camera Specifications

Camera TypeNetwork Indoor Fisheye Camera
Resolution9 Megapixels
Lens Size1.4mm
Frame RateUp to 30 fps
Dynamic RangeSuper Dynamic 108dB
Video CompressionH.265 Smart Coding
Security ComplianceFIPS 140-2 Level 1

Built-in Functions

  • Auto Gain Control
  • Day/Night
  • Digital Noise Reduction
  • Automatic White Balance
  • Back Light Compensation
  • Motion Detection Tracking
  • On Screen Display Menu
  • Privacy Masking
  • ONVIF

Specifications

SKU  WV-X4170
Features  Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Motion Detection Tracking, On Screen Display Menu, ONVIF, Privacy Masking
Manufacturer  Panasonic
Camera Signal     Network IP
Connection Type  Wired
Infrared Distance    Non Infrared
Resolution    9 Megapixel
Lens Type    Fixed
Mount Type  Ceiling, Wall
Compression Method    H.264, JPEG, H.265
Durability    Indoor
Voltage  48vDC, PoE
Dimensions (W x H)  ø150 mm × 49.5 mm (H) {ø5-29/32 inches × 1-15/16 inches (H)}
Electronic Shutter    Max.16/30s to Max. 1/10000s
Image Device    1/2 type CMOS image sensor
Minimum Scene Illumination  Color : 0.3 lx, BW : 0.2 lx (F1.9, Maximum shutter : Off (1/30 s), AGC : 11)
Operating Humidity    10% to 90 % (no condensation)
Operating Temperature    0 °C to +40 °C (32 °F to 104 °F)
OSD Menu    English, Italian, French, German, Spanish, Portuguese, Russian, Chinese, Japanese
Power Consumption  7.2 W
Privacy Zone    On / Off (up to 8 zones available)
Protocols  IPv6 : TCP/IP, UDP/IP, HTTP, HTTPS, FTP, SMTP, DNS, NTP, SNMP, DHCPv6, RTP, MLD, ICMP, ARP, IEEE 802.1X, DiffServ IPv4 : TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTP, RTP/RTCP, FTP, SMTP, DHCP, DNS, DDNS, NTP, SNMP, UPnP, IGMP, ICMP, ARP, IEEE 802.1X, DiffSe
Angle of View    Horizontal : 183° Vertical : 183°
Motion Detection Tracking    On / Off, 4 areas available
