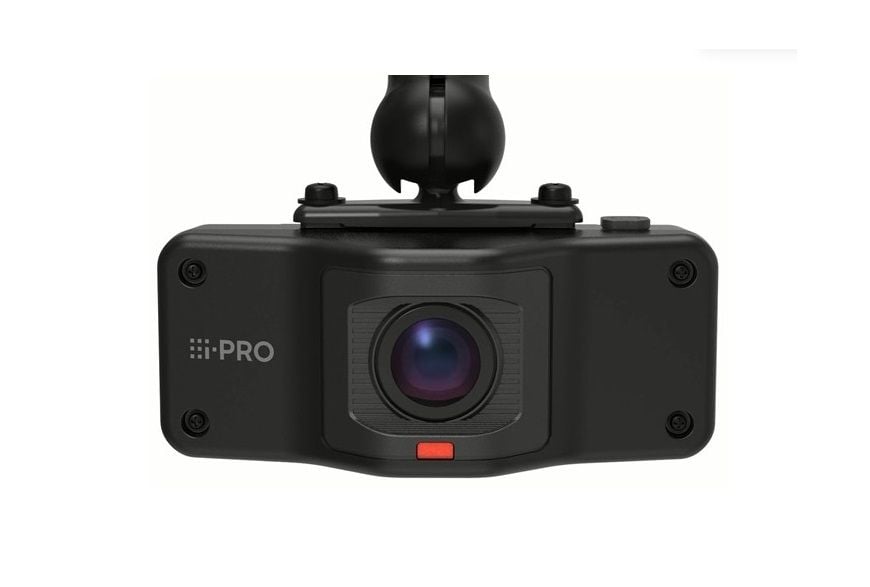

Panasonic WV-VCF41P 4K Sensor Panoramic Front Camera
SKU
WV-VCF41P
Model No
WV-VCF41P
$1,720.00
Product Highlights
- Panoramic 150° Field of View for full windshield coverage
- 4K Image Sensor for the Ultra HD image quality
- Enhanced lens and video processing for minimal edge distortion
- License Plate readability maintained within a majority of the horizontal region
- Single Button for Recording/Stop with recording light indicator
Speak to an expert
The new i-PRO WV-VCF41P 4K Sensor Panoramic Front Camera harnesses the power of the advanced AmbarellaTM AI Vision processor for AI Edge applications. i-PRO reduces your storage requirements by focusing on the view you need in front of the vehicle. This extremely wide panoramic view captures high resolution video evidence that other cameras miss.
Panasonic WV-VCF41P Camera Features
- Panoramic Field of View: 150° field of view ensures full windshield coverage, providing an extensive perspective of your environment.
- Ultra HD Image Quality: Equipped with a 4K image sensor, delivering ultra-high-definition video that enhances clarity and detail.
- Minimal Edge Distortion: Enhanced lens and video processing technology significantly reduces edge distortion for clearer visuals.
- License Plate Readability: Maintains license plate readability across the majority of the horizontal view, ensuring critical details are captured.
- Easy Operation: Features a single button for recording and stopping, complete with a recording light indicator for effortless user experience.
Panasonic WV-VCF41P Detailed Specifications
| Field of View | 150° Panoramic |
| Resolution | 4K (Ultra HD) |
| Lens Type | Wide Angle |
| Recording Control | Single Button with Indicator |
| Distortion Correction | Advanced Video Processing |
| License Plate Visibility | Maintained in the majority of horizontal region |
SKU  | WV-VCF41P |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Day/Night |
| Manufacturer | Panasonic |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Lens Type | Fixed |
| Lens Size | 3.1mm |
| Compression Method | H.264, H.265 |
| Voltage | PoE |
| Automatic Gain Control (AGC) | On Low/Mid/High, Of |
| Dimensions (W x H) | 4.60”(W) x 1.85”(H) x 1.18” (D) |
| Image Device | 1/1.8 CMOS Image Sensor |
| IR LEDs | Front and Rear to indicate recording (configurable) |
| Operating Humidity | 10% to 90% (no condensation) |
| Operating Temperature | -10°C to 50°C, 14°F to 122°F |
| Power Consumption | PoE DC 48V 180mA/Approx. 8.6W (Class 0 Device) |
| Scanning System | Progressive |
| Angle of View | Horizontal: 150° | Vertical: 40° |
| Automatic White Balance | Auto White Balance |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Automatic White Balance | Yes |
