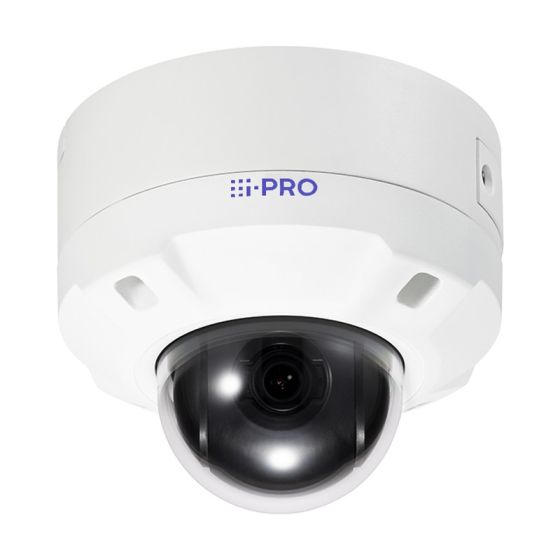

Panasonic WV-U65300-ZY 2 Megapixel Network Outdoor PTZ Camera with 3.1X Lens
SKU
WV-U65300-ZY
Model No
WV-U65300-ZY
$1,397.60
Product Highlights
- 2MP (1080p) 1920x1080
- 3.1x optical zoom
- Intelligent Auto
- Super Dynamic 144dB
- Color night vision (0.001 to 0.01 lx)
Speak to an expert
U-Series launch gives customers PTZ’s that meet top security certifications (FIPS 140-2 level 3) while also providing a unique blend of imaging performance, reliability and affordability
Panasonic WV-U65300-ZY Camera Features
- Highly durable pan-tilt drive unit: PAN,TILT drive endurance (1 million cycles) to reduce maintenance frequency, ultimately saving on service costs and ensuring consistent performance.
- Easy installation: Both pigtail or gromet options available, allowing flexibility to adapt to various installation environments. Easy Kitting features that streamline the setup process save valuable time.
- High security standard: Highest level of security with digital certificates from GlobalSign® and FIPS 140-2 level3-certified hardware to ensure data integrity and protection against unauthorized access.
Product Features
- 2MP (1080p) 1920x1080 for high-resolution imaging.
- 3.1x optical zoom allows for closer inspection of areas without losing clarity.
- Intelligent Auto feature optimizes settings for varying light conditions.
- Super Dynamic 144dB enhances visibility in high-contrast lighting.
- Color night vision capabilities (0.001 to 0.01 lx) ensure reliable surveillance day and night.
- Durable Pan/Tilt gear mechanism promotes longevity and reduces wear.
- IP66, IK10 certified ensures durability against weather and vandalism.
- Built-in FIPS 140-2 Level 3 Certified Secure Element (Edge Lock® SE050F NXP® Semiconductors) for enhanced security.
- NDAA Compliant ensuring adherence to U.S. government purchasing guidelines.
Panasonic WV-U65300-ZY Detailed Specifications
| Camera Type | 2 Megapixel Network Outdoor PTZ |
| Resolution | 1920 x 1080 (1080p) |
| Optical Zoom | 3.1x |
| Dynamic Range | Super Dynamic 144dB |
| Night Vision | Color night vision (0.001 to 0.01 lx) |
| Durability Ratings | IP66, IK10 |
| Security Certification | FIPS 140-2 Level 3 |
| Installation Options | Pigtail or Grommet |
| Compliance | NDAA Compliant |
SKU  | WV-U65300-ZY |
|---|---|
| Features | Audio, Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Motion Detection Tracking, ONVIF, Privacy Masking |
| Manufacturer | Panasonic |
| NDAA | Compliant |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | Non Infrared |
| Resolution | 2 Megapixel |
| Lens Type | Motorized Zoom |
| Lens Size | 3.1X |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, M-JPEG, JPEG, H.265 |
| Durability | Vandal Resistant, Weather Resistant |
| Voltage | 12vDC, 48vDC, PoE |
| Automatic Gain Control (AGC) | The level can be set in the range of 0 to 11. |
| Dimensions (W x H) | ø155 mm x 134 mm (H) {ø6-3/32 inches x 5-9/32 inches (H)} |
| Electronic Shutter | [60 fps Mode] 1/60 Fix to 1/10000 Fix, [30 fps/15 fps mode] 1/30 Fix to 1/10000 Fix [50 fps Mode] 1/50 Fix to 1/10000 Fix, [25 fps/12.5 fps mode] 1/25 Fix to 1/10000 Fix |
| Image Device | Approx. 1/2.8 type CMOS image sensor |
| Minimum Scene Illumination | Color: 0.01 lx(50IRE, F1.3, 1/30s), Color: 0.001 lx(50IRE, F1.3, 16/30s), BW: 0.004 lx (50IRE, F1.3, 1/30s), BW: 0.0003 lx (50IRE, F1.3, 16/30s) |
| Operating Humidity | 10 to 100 % (no condensation) |
| Operating Temperature | -30 °C to +55 °C (-22 °F to +131 °F) (Power On range: -20 °C to +55 °C {-4 °F to +131 °F}) Maximum temperature according to NEMA TS2(2.2.7): 74 °C(165°F) |
| Power Consumption | DC12 V, PoE (IEEE802.3af), DC12 V: 890 mA / Approx. 10.7 W, PoE DC 48 V: 250 mA / Approx.12.0 W (Class 0 device) |
| Privacy Zone | On / Off, Up to 32 zones available |
| Weatherproof | IP66, IP67 |
| Digital Noise Reduction | The level can be set in the range of 0 to 255. |
| Angle of View | [16: 9 mode] Horizontal: 36° (TELE) – 113° (WIDE), Vertical: 20° (TELE) – 60° (WIDE), [ 4: 3 mode] Horizontal: 26° (TELE) – 82° (WIDE), Vertical: 20° (TELE) – 60° (WIDE) |
| Motion Detection Tracking | On / Off, 4 areas available |
| Back Light Compensation | BLC (Back light compensation) / HLC (High light compensation) / Off The level can be set in the range of 0 to 31 (only when Super dynamic / Intelligent Auto: Off) |
| Automatic White Balance | ATW1 / ATW2 / AWC |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| ONVIF | Yes |
