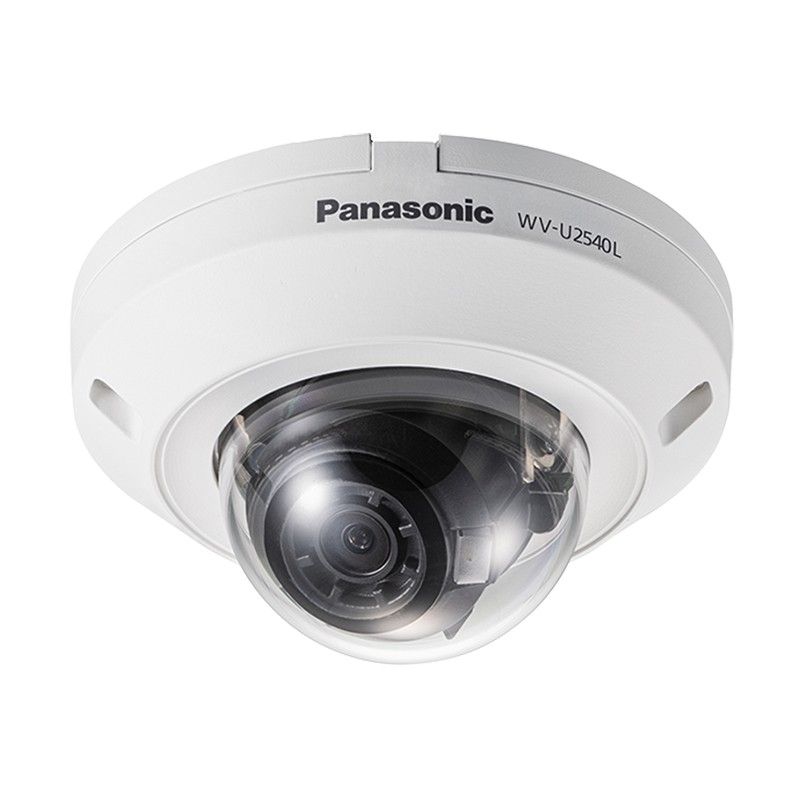

Panasonic WV-U2540L 4 Megapixel Outdoor IR Network Dome Camera with 3.2mm Lens
SKU
WV-U2540L
Model No
WV-U2540L
$348.25
Product Highlights
- 4-megapixel images up to 30fps
- iA (intelligent Auto)
- Super Dynamic 102dB
- Color night vision (0.019 to 0.3 lx)
- H.265 Smart Coding
Speak to an expert
Panasonic WV-U2540L captures the highest quality 4MP resolution images in even very challenging and dynamic environments. Intelligent Auto (iA) monitors scene dynamics and motion to adjust key camera settings automatically in real-time reducing distortion such as motion blur on moving objects. By adopting H.265 Smart Coding technology, bandwidth efficiency is intelligently increased for longer recording and less storage.
Features
- 4-megapixel images: Up to 30fps for clear and detailed video quality, ensuring high-performance monitoring.
- iA (Intelligent Auto): Automatically adjusts camera settings based on scene conditions, reducing motion blur and enhancing image quality.
- Super Dynamic 102dB: Exceptional dynamic range provides clear images in high-contrast lighting environments.
- Color night vision: Operates in low-light conditions (0.019 to 0.3 lx) for continuous surveillance.
- H.265 Smart Coding: Optimizes bandwidth usage for efficient streaming and longer recording times.
- Corridor mode: Allows 90 degrees or 270 degrees image rotation to maximize coverage in narrow areas.
Panasonic WV-U2540L Camera Specifications
| Image Sensor | 4MP MOS Sensor |
| Lens | 3.2mm Fixed Lens |
| Video Compression | H.265/H.264 |
| Max Frame Rate | 30fps at 4MP |
| Minimum Illumination | 0.019 lx (Color) |
| Dynamic Range | 102dB Super Dynamic |
| Operating Temperature | -10°C to +50°C |
| Dimensions | Ø150mm x 105mm |
| Weight | Approx. 1.3 kg |
SKU  | WV-U2540L |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Digital Zoom, Motion Detection Tracking, On Screen Display Menu, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range |
| Manufacturer | Panasonic |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | 61~100 Feet |
| Resolution | 4 Megapixel |
| Lens Type | Fixed |
| Lens Size | 3.2mm |
| Mount Type | Ceiling, Wall |
| Compression Method | JPEG, H.265 |
| Durability | Vandal Resistant, Weather Resistant |
| Voltage | PoE |
| Dimensions (W x H) | ø109 mm (W) x 62 mm (H) {ø4-9/32 inches × 2-7/16 inches (H)} Dome radius 30.5 mm {1-3/16 inches} |
| Electronic Shutter | [30fps mode] Max. 1/10000 s to Max. 16/30 s, [25fps mode] Max. 1/10000 s to Max. 16/25 s |
| Image Device | Approx. 1/2.7 type CMOS image sensor |
| Minimum Scene Illumination | Color: 0.3 lx, BW: 0.12 lx (50IRE, F2.0, Maximum shutter: Off (1/30s), AGC: 11), BW: 0 lx (50IRE, F2.0, Maximum shutter: OFF (1/30 s), AGC: 11, when the IR LED is lit), Color: 0.019 lx, BW: 0.0075 lx (50IRE, F2.0, Maximum shutter: max. 16/30s, AGC: 11) |
| Operating Humidity | 10 to 100 % (no condensation) |
| Operating Temperature | -30°C to +50°C (-22°F to +122°F) {Power On range: -20°C to +50°C (-4°F to +122°F)} |
| OSD Menu | On / Off, Up to 20 characters (alphanumeric characters, marks) |
| Power Consumption | Approx. 5.3 W |
| Privacy Zone | On / Off, Up to 8 zones available |
| Protocols | IPv6: TCP/IP, UDP/IP, HTTP, HTTPS, SMTP, DNS, NTP, SNMP, DHCPv6, RTP, MLD, ICMP, ARP, IEEE 802.1X, DiffServ, IPv4: TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTP, RTP/RTCP, SMTP, DHCP, DNS, DDNS, NTP, SNMP, UPnP, IGMP, ICMP, ARP, IEEE 802.1X, DiffServ |
| Weatherproof | IP66 |
| Digital Noise Reduction | The level can be set in the range of 0 to 255. |
| Angle of View | Horizontal: 100°, Vertical: 54° |
| Motion Detection Tracking | On / Off, 4 areas available |
| Automatic White Balance | ATW1/ ATW2/ AWC |
| IR Distance | 20m/65ft |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Motion Detection Tracking | Yes |
| On Screen Display Menu | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| ONVIF | Yes |
| Digital Zoom | Yes |
