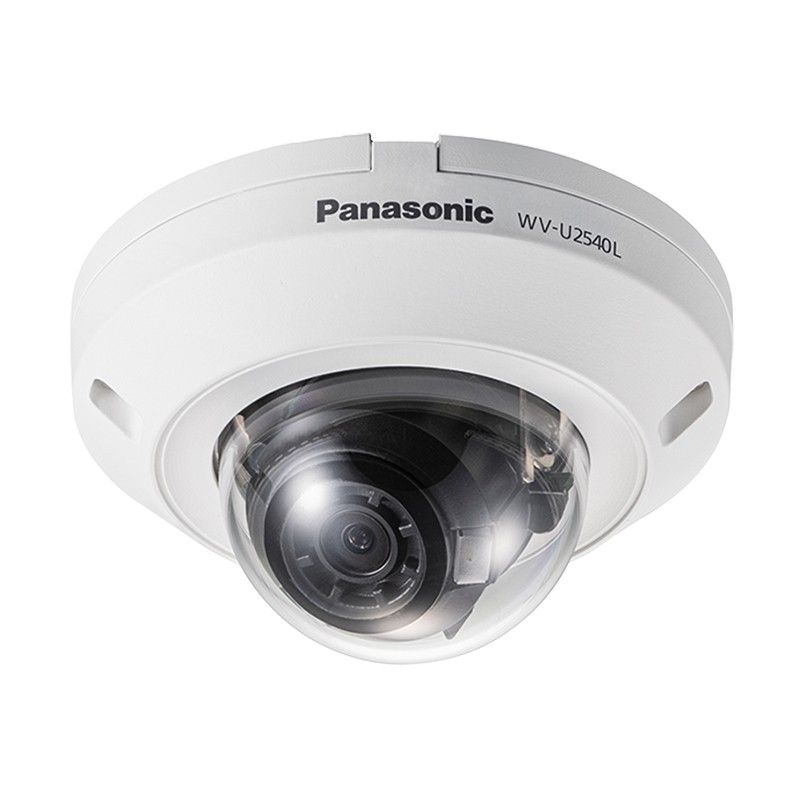

Panasonic WV-U2540L-RB 4MP Outdoor Dome Network Camera with 3.2mm Lens - REFURBISHED
SKU
WV-U2540L-RB
Model No
WV-U2540L-RB
$474.14
Product Highlights
- Approx. 4-megapixel up to 30fps
- iA (intelligent Auto)
- Super Dynamic 102dB
- Color night vision (0.019 to 0.3 lx)
- H.265 Smart Coding
Speak to an expert
Introducing the Panasonic WV-U2540L-RB 4MP Outdoor Dome Network Camera, a high-performance surveillance solution designed to capture crystal-clear images in diverse settings. This refurbished model retains all original functions and comes with a full 1-year warranty, ensuring reliability and performance comparable to new equipment. Its advanced features include intelligent auto adjustments and H.265 Smart Coding, making it an ideal choice for those needing efficient, high-quality video surveillance.
Panasonic WV-U2540L-RB Camera Features
- Extreme image quality: Captures detailed 4MP images, even in low light, ensuring reliable evidence under all conditions.
- Intelligent Auto technology: Automatically adjusts camera settings in real-time to minimize motion blur, optimizing image clarity for moving subjects.
- Super Dynamic 102dB: Enhances image quality in backlit situations, effectively managing scenes with high contrast.
- Environmental durability: IP66 and IK10 rated, ideal for outdoor use and resistant to harsh weather conditions.
- H.265 Smart Coding: Maximizes bandwidth efficiency, allowing for longer recording times and reduced storage space.
Detailed Camera Specifications
| Camera Resolution | Approx. 4MP up to 30fps |
| Intelligent Auto (iA) | Yes |
| Dynamic Range | Super Dynamic 102dB |
| Color Night Vision | 0.019 to 0.3 lx |
| Bandwidth Compression | H.265 Smart Coding |
| Corridor Mode | 90 degrees or 270 degrees image rotation |
| Compliance Ratings | IP66, IK10 |
| Warranty | 1 year manufacturer's warranty |
SKU  | WV-U2540L-RB |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Motion Detection Tracking, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range |
| Manufacturer | Panasonic |
| Connection Type | Wired |
Infrared Distance  | 61~100 Feet |
| Resolution | 4 Megapixel |
| Lens Type | Fixed |
| Lens Size | 3.2mm |
| Mount Type | Ceiling, Wall |
| Compression Method | JPEG, H.265 |
| Durability | Vandal Resistant, Weather Resistant |
| Voltage | PoE |
| Dimensions (W x H) | ø109 mm (W) x 62 mm (H) {ø4-9/32 inches × 2-7/16 inches (H)} Dome radius 30.5 mm {1-3/16 inches} |
| Electronic Shutter | [30fps mode] Max. 1/10000 s to Max. 16/30 s, [25fps mode] Max. 1/10000 s to Max. 16/25 s |
| Image Device | Approx. 1/2.7 type CMOS image sensor |
| Image Pixels-Effective | Approx. 5.2 megapixels, 2688(H)×1944(V) |
| Minimum Scene Illumination | Color: 0.3 lx, BW: 0.12 lx (50IRE, F2.0, Maximum shutter: Off (1/30s), AGC: 11), BW: 0 lx (50IRE, F2.0, Maximum shutter: OFF (1/30 s), AGC: 11, when the IR LED is lit), Color: 0.019 lx, BW: 0.0075 lx (50IRE, F2.0, Maximum shutter: max. 16/30s, AGC: 11) |
| Operating Humidity | 10 to 100 % (no condensation) |
| Operating Temperature | -30 °C to +50 °C (-22 °F to +122 °F) {Power On range: -20 °C to +50 °C (-4°F to +122 °F)} |
| Power Consumption | PoE (IEEE802.3af compliant) Device: DC48 V 110 mA, Approx. 5.3 W (Class 2 device) |
| Privacy Zone | On / Off (up to 8 zones available) |
| Weatherproof | IP66 |
| Digital Noise Reduction | The level can be set in the range of 0 to 255. |
| Angle of View | [16: 9 mode] *[4:3 mode] is not supported. Horizontal: 100°, Vertical: 54° |
| Motion Detection Tracking | On / Off, 4 areas available |
| Back Light Compensation | BLC/ HLC/ Off, The level can be set in the range of 0 to 31. The level can be set in the range of 0 to 31. (only when Super Dynamic/ Intelligent auto: Off) |
| Automatic White Balance | ATW1/ ATW2/ AWC |
| IR Distance | 20m/65ft |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| ONVIF | Yes |
There are no related videos.
Write Your Own Review
Manuals & Specifications
WV-U2540L-RB-Specsheet WV-U2540L-RB-Installation-Guide WV-U2540L-RB-Basic-Information WV-U2540L-RB-Operating-Instructions
