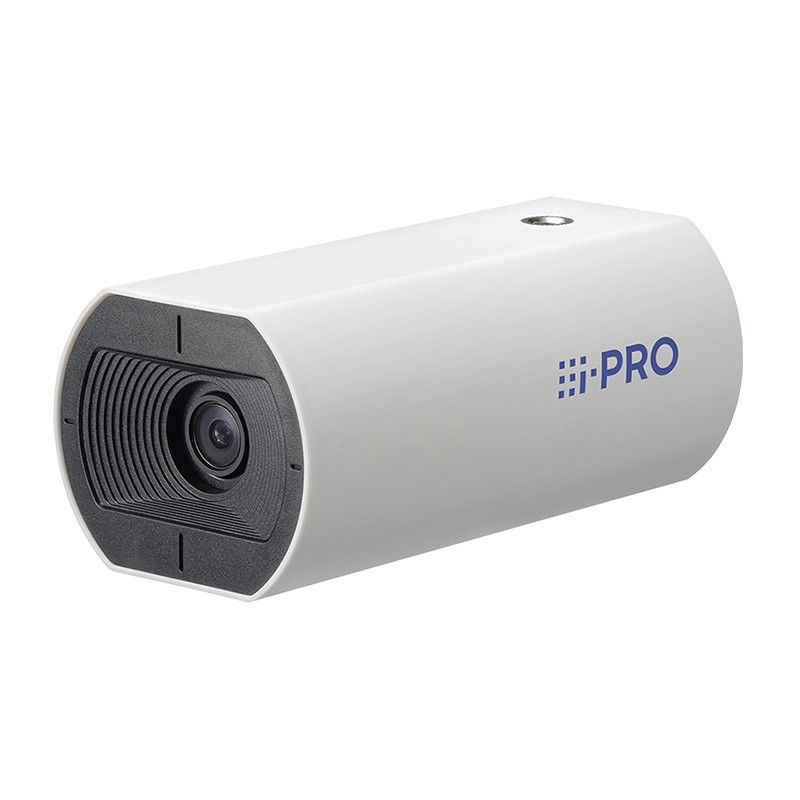

Panasonic WV-U1130A 2 Megapixel Network Indoor Box Camera with 3.2mm Lens

SKU
WV-U1130A
Model No
WV-U1130A
$304.95
Volume Discounts Volume
Discounts
Free System Design Free System
Design
Lifetime Tech Support Lifetime
Tech Support
Free Shipping Over $450* Free Shipping
Over $450*
Product Highlights
  • 2MP (1080p) 1080p up to 30fps
  • iA (intelligent Auto)
  • Super Dynamic 120dB
  • Color night vision (0.006 to 0.1 lx)
  • H.265 Smart Coding

The WV-U1130A from Panasonic is a 2 megapixel network Indoor box camera with a 3.2mm lens. The new U series is an entry model that achieves high quality and reliability at an affordable price to meet the needs of a wide range of customers. The compact and slim design allows it to be installed in various locations. It newly supports ONVIF G / S / T profile and H.265 / H.264, and can be widely used for connecting various VMS and recorders. It also comes pre-installed with secure certificates, enabling device authentication and end-to-end communication encryption to counter the threat of advanced cyberattacks.

Panasonic WV-U1130A Camera Features

  • 2MP Resolution: Captures sharp and clear 1080p images at up to 30fps for high-quality surveillance video.
  • iA (Intelligent Auto): Automatically adjusts camera settings for optimal performance in varying lighting conditions.
  • Super Dynamic 120dB: Provides enhanced image quality in challenging lighting situations, ensuring visibility in both bright and dark areas.
  • Color Night Vision: Offers improved night vision capabilities, with performance as low as 0.006 to 0.1 lux.
  • H.265 Smart Coding: Reduces bandwidth and storage requirements while maintaining excellent video quality.
  • Corridor Mode: Allows for 90 degrees or 270 degrees image rotation to optimize monitoring in narrow spaces.

Panasonic WV-U1130A Detailed Specifications

ModelWV-U1130A
Resolution2 Megapixels (1080p)
Lens3.2mm
Frame RateUp to 30fps
Dynamic Range120dB Super Dynamic
Night Vision Sensitivity0.006 to 0.1 lx
Video CompressionH.265 / H.264
ONVIF SupportG/S/T Profile
Security FeaturesPre-installed secure certificates for device authentication
SKU  WV-U1130A
Features  Audio, Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Motion Detection Tracking, On Screen Display Menu, ONVIF, Privacy Masking
Manufacturer  Panasonic
Camera Signal     Network IP
Connection Type  Wired
Infrared Distance    Non Infrared
Resolution    2 Megapixel
Lens Type    Fixed
Lens Size    3.2mm
Mount Type  Bracket Required
Compression Method    H.264, JPEG, H.265
Durability    Indoor
Voltage  PoE
Automatic Gain Control (AGC)    Level can be set in the range of 0 to 11.
Dimensions (W x H)  59 mm (W) x 49 mm (H) x 116 mm (D) {2-5/16 inches (W) x 1-15/16 inches (H) x 4-9/16 inches (D)} (excluding side cover)
Electronic Shutter    [30fps mode] Max. 1/10000 s to Max. 16/30 s, [25fps mode] Max. 1/10000 s to Max. 16/25 s
Image Device    1/3 type CMOS image sensor
Minimum Scene Illumination  Color : 0.1 lx, BW: 0.04 lx (50IRE, F2.0, Maximum shutter: Off (1/30s), AGC: 11), Color : 0.006 lx, BW: 0.0025 lx (50IRE, F2.0, Maximum shutter: max. 16/30s, AGC: 11)
Operating Humidity    10 to 90 % (no condensation)
Operating Temperature    -10 °C to +50 °C (+14 °F to +122 °F) {Power On range: 0 °C to +50 °C (+32°F to +122 °F)}
OSD Menu    English, Italian, French, German, Spanish, Portuguese, Russian, Chinese, Japanese
Power Consumption  Approx. 3.8 W
Privacy Zone    On / Off (up to 8 zones available)
Digital Noise Reduction    Level can be set in the range of 0 to 255.
Angle of View    [16 : 9 mode] Horizontal : 102°, Vertical : 55°, [ 4 : 3 mode] Horizontal : 83°, Vertical : 61°
Rotation Angle0° (Off)/ 90°/ 180° (Upside-down)/ 270°
Motion Detection Tracking    On / Off, 4 areas available
Automatic White Balance    ATW1/ ATW2/ AWC
AudioYes
Auto Gain Control    Yes
Day/Night    Yes
Digital Noise Reduction    Yes
Automatic White Balance    Yes
Back Light Compensation    Yes
Motion Detection Tracking    Yes
On Screen Display Menu    Yes
Privacy Masking    Yes
ONVIF  Yes
