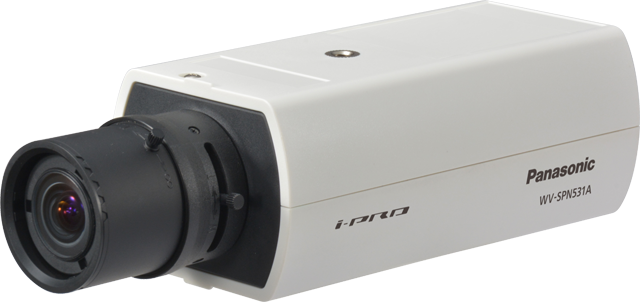

Panasonic WV-SPN531A Super Dynamic Full HD Network Camera, Lens Not Included
SKU
WV-SPN531A
Model No
WV-SPN531A
$565.60
Product Highlights
- 1080p Full HD images up to 60 fps*1
- Approximate 1/3 inches, high sensitivity MOS image sensor
- Super high resolution at Full HD/1,920 x 1,080 created by high sensitivity MOS image sensor
- Multiple H.264 (High profile) streams (max. 4 streams) and JPEG streams ensure simultaneous real time monitoring and high resolution recording
- Maximum Screen Size is 2,048 x 1,536* @30 fps, H.264
Speak to an expert
The Panasonic WV-SPN531A is a super dynamic Full HD network camera designed for superior image quality and enhanced monitoring capabilities. With advanced features such as high sensitivity MOS image sensor, multiple streaming capabilities, and smart coding technology, this camera ensures precise video recording and efficient storage management, making it ideal for various surveillance needs.
Panasonic WV-SPN531A Camera Features
- 1080p Full HD resolution: Captures stunning images at up to 60 fps for smooth and clear video footage.
- High sensitivity MOS sensor: Achieves optimal performance in low-light conditions, providing clear images even at 0.04 lux (Color).
- Multiple streaming options: Supports up to 4 H.264 streams for real-time monitoring and high-resolution recording simultaneously.
- Advanced dynamic range: Enhanced Super Dynamic and ABS technologies deliver 133 dB for a wider dynamic range, improving image quality in challenging lighting.
- Smart coding technology: Efficiently encodes video by reducing unnecessary data, saving bandwidth and storage space.
- Flexible zoom capabilities: 2x and 4x digital zoom controlled via browser for detailed image examination.
- Privacy mask functionality: Masks up to 8 areas to protect sensitive locations from being recorded.
- Audio support: Full duplex bi-directional audio enables two-way communication between monitoring and camera sites.
- Intelligent software integration: Can support new intelligent extension software for enhanced functionalities.
- Fog and highlight compensation: Standard features to enhance image clarity in foggy conditions and in situations with strong light sources.
Detailed Specifications for Panasonic WV-SPN531A
| Camera Type | Network camera |
| Resolution | Full HD (1,920 x 1,080) |
| Frame Rate | Up to 60 fps at 1080p |
| Image Sensor | High sensitivity 1/3 inch MOS |
| Minimum Illumination | 0.04 lux (Color), 0.01 lux (B/W) |
| Dynamic Range | 133 dB |
| Video Compression | H.264 and JPEG |
| Storage Options | SDXC/SDHC/SD memory card slot |
| Audio | Full duplex bi-directional audio |
| Power Supply | 24V AC or PoE |
| Operating Temperature | -10°C to +50°C (14°F to 122°F) |
SKU  | WV-SPN531A |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Digital Zoom, Flickerless, Motion Detection Tracking, On Screen Display Menu, ONVIF, Privacy Masking, Weather Resistant, Wide Dynamic Range |
| Manufacturer | Panasonic |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | Non Infrared |
| Resolution | 2.07 Megapixel |
| Lens Type | Not Included |
| Mount Type | Bracket Required |
| Compression Method | H.264, JPEG |
| Durability | Indoor, Weather Resistant |
| Voltage | 12vDC, 48vDC, PoE |
| Automatic Gain Control (AGC) | On (Low) / On (Mid) / On (High) / Off |
| Dimensions (W x H) | 75 mm (W) x 57 mm (H) x 146 mm (D) {2-15/16 inches (W) x 2-1/4 inches (H) x 5-47/64 inches (D)} (excluding lens / power cord plug) |
| Electronic Shutter | OFF(1/60), 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000,1/10000 |
| Image Device | Approx. 1/3 type MOS image sensor |
| Minimum Scene Illumination | Color : 0.04 lx, BW : 0.01 lx (F1.4, Maximum shutter : Max. 1/30s, AGC : High), Color : 0.003 lx, BW : 0.0007 lx (F1.4, Maximum shutter : Max. 16/30s, AGC : High) *1 |
| Operating Humidity | 10 to 90 % (no condensation) |
| Operating Temperature | -10 °C to +50 °C (14 °F to 122 °F) |
| OSD Menu | English, Italian, French, German, Spanish, Portuguese, Russian, Chinese, Japanese |
| Power Consumption | DC 12 V : 500 mA / Approx. 6.0 W PoE (IEEE802.3af compliant) DC 48 V : 120 mA / Approx. 5.8 W (Class 2 device) |
| Privacy Zone | On / Off (up to 8 zones available) |
| Protocols | IPv6 : TCP/IP, UDP/IP, HTTP, HTTPS, RTP, FTP, SMTP, DNS, NTP, SNMP, DHCPv6, MLD, ICMP, ARP, IPv4 : TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTP, RTP/RTCP,FTP, SMTP, DHCP, DNS, DDNS, NTP, SNMP, UPnP, IGMP, ICMP, ARP |
| Scanning System | Progressive scan |
| Signal System | NTSC, PAL |
| Digital Noise Reduction | High / Low |
| Motion Detection Tracking | On / Off, 4 areas, Sensitivity : 15 steps, Detection size : 10 steps |
| Automatic White Balance | AWC (2,000 - 10,000 K), ATW1 (2,700 - 6,000 K), ATW2 (2,000 - 6,000 K) |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Flickerless | Yes |
| Motion Detection Tracking | Yes |
| On Screen Display Menu | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| ONVIF | Yes |
| Digital Zoom | Yes |
