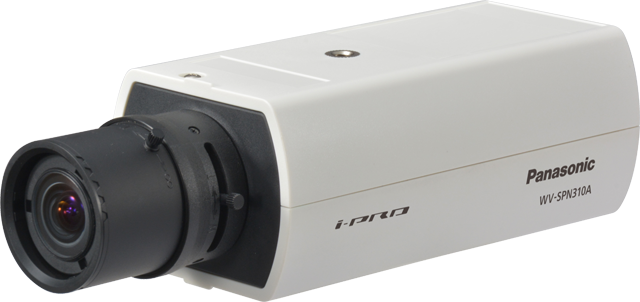

Panasonic WV-SPN310A 1 Megapixel Indoor Fixed Box Camera

SKU
WV-SPN310A
Model No
WV-SPN310A
$399.55
Volume Discounts Volume
Discounts
Free System Design Free System
Design
Lifetime Tech Support Lifetime
Tech Support
Free Shipping Over $450* Free Shipping
Over $450*
Product Highlights
  • 720p HD images up to 60 fps
  • Approximate 1/3 inches, high sensitivity MOS image sensor
  • Maximum Screen Size is 1,980 x 1,080* @30 fps, H.264
  • Internet mode : H.264 images can be transmitted over HTTP protocol
  • Multi-language : English / Italian / French / German / Spanish / Portuguese / Russian / Chinese / Japanese

The Panasonic WV-SPN310A is an exceptional 1 Megapixel Indoor Fixed Box Camera designed for high-definition video surveillance. With its advanced Super Dynamic technology and impressive image quality, this camera ensures clear and detailed recordings at up to 60 frames per second. Ideal for both indoor and outdoor settings, it offers features such as multiple streaming capabilities and privacy masking functionalities, making it the perfect choice for security needs.

Panasonic WV-SPN310A Camera Features

  • 720p HD Resolution: Provides high-quality video at 60 fps for clear and smooth image rendering.
  • High Sensitivity MOS Sensor: The 1/3 inches sensor enhances low-light performance, delivering better image quality in diverse lighting conditions.
  • Multiple H.264 Streams: Supports up to 4 simultaneous streams for real-time monitoring and high-resolution recording, ensuring seamless surveillance.
  • Super Dynamic Technology: Achieves 133 dB dynamic range, enhancing image detail in high-contrast environments.
  • Smart Coding Technology: Includes features like GOP control and Auto VIQS, minimizing data usage while maintaining quality and saving on storage costs.
  • Variable Image Quality on Specified Areas (VIQS): Retains higher quality in designated areas and reduces quality in others to optimize bandwidth and storage.
  • Cropping Function: Allows simultaneous viewing of the full image and specific cropped areas, enhancing versatility in monitoring.
  • Face Super Dynamic Technology: Ensures clarity in facial images for identification in security applications.
  • Selectable Light Control Modes: Reduces flicker during different lighting conditions, ensuring consistent video quality.
  • Digital Zoom: Offers 2x to 4x zooming capabilities, enabling detailed surveillance without physical adjustments.
  • Video Motion Detection: Features programmable detection areas with adjustable sensitivity for proactive monitoring.
  • Privacy Zones: Masks private areas to maintain confidentiality in sensitive locations.
  • Alarm Sources Integration: Triggers various actions upon alarm detection, ensuring responsive security management.
  • Prioritized Stream Control: Maintains frame rates when multiple devices access the camera, enhancing performance under load.
  • Face Detection: Identifies faces and provides tracking information for enhanced alertness.
  • Fog Compensation: Improves visibility in foggy conditions, ensuring clarity for accurate monitoring.
  • High Light Compensation: Corrects images affected by strong light sources, like headlights, to provide clear visuals.
  • Bit Rate Control: Manages network traffic flexibly through adjustable bit rate settings according to camera usage.
  • Multi-language Support: Offers operating options in various languages for broader accessibility.
  • Security Protocols: Supports SSL and DDNS for secure remote access and management.

Panasonic WV-SPN310A Detailed Specifications

Image Sensor1/3 inch High Sensitivity MOS
Resolution1280 x 720 (720p) at 60 fps
Dynamic Range133 dB
Streaming CapabilityUp to 4 H.264 streams
Zoom Capacity2x, 4x digital zoom
Privacy MaskingUp to 8 zones
DimensionsNot specified
Power SupplyNot specified
Network ProtocolsHTTP, SSL, DDNS
Operating TemperatureNot specified
WeightNot specified
SKU  WV-SPN310A
Features  Auto Gain Control, Automatic White Balance, Day/Night, Digital Noise Reduction, Digital Zoom, Flickerless, Motion Detection Tracking, On Screen Display Menu, ONVIF, Weather Resistant, Wide Dynamic Range
Manufacturer  Panasonic
Camera Signal     Network IP
Connection Type  Wired
Infrared Distance    Non Infrared
Resolution    1 Megapixel
Lens Type    Not Included
Mount Type  Bracket Required
Compression Method    H.264, JPEG
Durability    Indoor, Weather Resistant
Voltage  12vDC, 48vDC, PoE
Automatic Gain Control (AGC)    On (Low) / On (Mid) / On (High) / Off
Dimensions (W x H)  75 mm (W) x 57 mm (H) x 146 mm (D)
Electronic Shutter    Off(1/60), 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000,1/10000
Image Device    Approx. 1/3 type MOS image sensor
Minimum Scene Illumination  Color : 0.01lx, BW : 0.008 lx (F1.4, Maximum shutter : Max. Off(1/30s), AGC: High) Color : 0.0007 lx, BW : 0.0005 lx (F1.4, Maximum shutter : Max. 16/30s, AGC: High)
Operating Humidity    10 to 90 % (no condensation)
Operating Temperature    -10 °C to +50 °C (14 °F to 122 °F)
OSD Menu    English, Italian, French, German, Spanish, Portuguese, Russian, Chinese, Japanese
Power Consumption  DC12 V : 380 mA / Approx. 4.6 W
Privacy Zone    On / Off (up to 8 zones available)
Protocols  IPv6 : TCP/IP, UDP/IP, HTTP, HTTPS, RTP, FTP, SMTP, DNS, NTP, SNMP, DHCPv6, MLD, ICMP, ARPIPv4 : TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTP, RTP/RTCP,FTP, SMTP, DHCP, DNS, DDNS, NTP, SNMP, UPnP, IGMP, ICMP, ARP
Scanning System    Progressive scan
Signal System    NTSC, PAL
Video Output    VBS: 1.0 V [p-p] / 75 Ω, composite, RCA jack
Digital Noise Reduction    High / Low
Motion Detection Tracking    On / Off, 4 areas, Sensitivity : 15 steps, Detection size : 10 steps
Automatic White Balance    AWC (2,000 - 10,000 K), ATW1 (2,700 - 6,000 K), ATW2 (2,000 - 6,000 K)
AudioYes
Auto Gain Control    Yes
Day/Night    Yes
Digital Noise Reduction    Yes
Automatic White Balance    Yes
Flickerless    Yes
Motion Detection Tracking    Yes
On Screen Display Menu    Yes
Wide Dynamic Range    Yes
ONVIF  Yes
Digital ZoomYes
