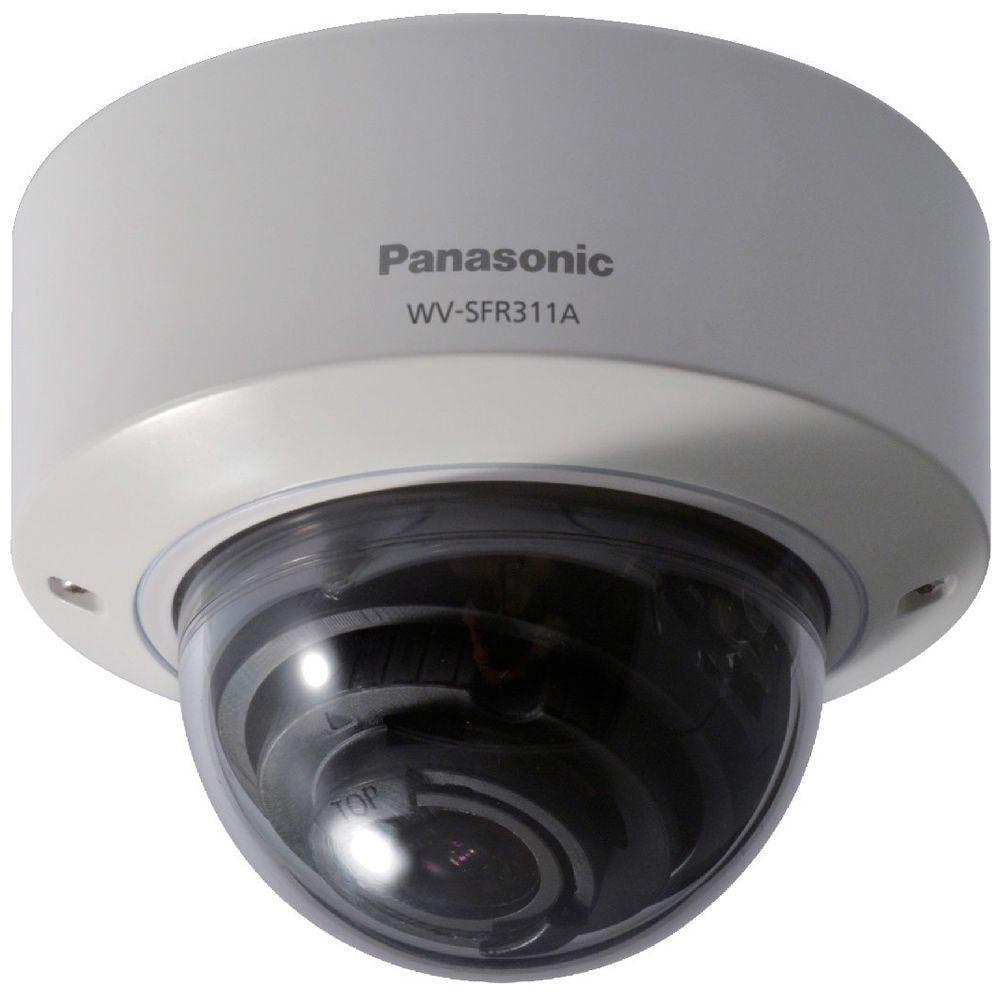

Panasonic WV-SFR311A 1 Megapixel Indoor Vandal Dome Network Camera

SKU
WV-SFR311A
Model No
WV-SFR311A
$482.94
Volume Discounts Volume
Discounts
Free System Design Free System
Design
Lifetime Tech Support Lifetime
Tech Support
Free Shipping Over $450* Free Shipping
Over $450*
Product Highlights
  • 720p HD images up to 60 fps
  • Approximate 1/3 inches, high sensitivity MOS image sensor
  • Maximum Screen Size is 1,980 x 1,080* @30 fps, H.264
  • High sensitivity with Day/Night function: 0.01 lx (Color), 0.003 lx (B/W) at F1.6
  • New camera attachment bracket allows an easy camera installation toward all four directions

The Panasonic WV-SFR311A is a high-definition 1 Megapixel indoor vandal dome network camera that delivers remarkable performance with 720p HD images up to 60 fps. Equipped with advanced features such as Super Dynamic technology, intelligent encoding, and enhanced low-light capabilities, this camera is designed for versatile monitoring in various environments while ensuring high reliability and efficient data management.

Panasonic WV-SFR311A Camera Features

  • 720p HD images up to 60 fps: Provides clear and smooth video quality ideal for monitoring busy areas.
  • High sensitivity MOS image sensor: Approximate 1/3 inches sensor enhances low-light performance, making it suitable for night surveillance.
  • Multiple stream options: Supports up to 4 H.264 streams and JPEG streams for simultaneous monitoring and recording.
  • Enhanced dynamic range: Super Dynamic and ABS technologies deliver 133 dB wider dynamic range, improving image quality in challenging lighting conditions.
  • Smart coding technology: Efficient encoding reduces data size and network bandwidth, optimizing storage and performance.
  • Day/Night function: Exceptional low-light performance with 0.01 lx color and 0.003 lx black and white sensitivity.
  • Easy installation: New camera attachment bracket allows for 360-degree adjustment for flexible mounting options.
  • Auto Back Focus (ABF): Simplifies installation and ensures accurate focus for optimal image quality.
  • Customizable image quality: VIQS technology prioritizes image quality in designated areas while lowering it in others to save bandwidth.
  • Cropping function: Capture multiple designated areas simultaneously, allowing tailored monitoring of specific locations.
  • Face Super Dynamic technology: Ensures clear facial images, enhancing identification capabilities.
  • Lens distortion compensation: Adjustable 256 steps minimize lens distortion for improved image clarity.
  • Select light control modes: Automatically compensates for flicker in various lighting conditions for consistent image quality.
  • Zoom capabilities: 2x optical zoom and adjustable digital zoom options enhance detail recognition in critical areas.
  • Video motion detection: Configurable detection areas and sensitivity ensure precise motion alerts.
  • Privacy Zone masking: Mask up to 8 private areas to protect sensitive spaces from being recorded.
  • Alarm integration: Multiple alarm sources trigger notifications and recording actions, enhancing security response.
  • Full duplex audio: Facilitates interactive communication between monitoring and camera locations.
  • Prioritized stream control: Ensures consistent frame rate by prioritizing video streams during high-demand scenarios.
  • Improved dome cover: Enhances image clarity and lens tilting range for better surveillance angles.
  • Intelligent extension software: Optional software allows additional smart features to enhance functionality.
  • Fog compensation feature: Standard feature that ensures clarity during foggy conditions.
  • High Light Compensation (HLC): Reduces glare from strong light sources to maintain image quality.
  • Super Chroma Compensation (SCC): Improves color reproducibility even in dim conditions for more accurate visuals.
  • Flexible network traffic management: H.264 bit rate control allows tailored network settings for optimal performance.
  • Internet connectivity: H.264 images can be easily transmitted over HTTP for remote access.
  • Multi-language support: Offers various language options for user interface customization.
  • Vandal resistant design: Built for high reliability in public spaces, ensuring long-lasting protection.

Detailed Specifications for Panasonic WV-SFR311A

ModelWV-SFR311A
Image SensorApprox. 1/3 inch High Sensitivity MOS
Video Resolution720p (1280 x 720) up to 60 fps
Dynamic Range133 dB (Super Dynamic and ABS)
Low Light Performance0.01 lx (Color), 0.003 lx (B/W)
Zoom Options2x optical zoom, digital zoom up to 4x
StreamingMultiple H.264 streams (up to 4) and JPEG
Alarm Sources3 terminal inputs, VMD, Panasonic command
AudioFull duplex bi-directional audio
Power SupplyPoE compliant and DC input options
WeightApprox. 1.5 kg
Dimensions140mm (diameter) x 98mm (height)
Operating Temperature-10°C to +50°C
Protection RatingVandal resistant
SKU  WV-SFR311A
Features  Auto Gain Control, Automatic White Balance, Day/Night, Digital Noise Reduction, Digital Zoom, Flickerless, Motion Detection Tracking, On Screen Display Menu, ONVIF, Vandal Resistant, Weather Resistant
Manufacturer  Panasonic
Camera Signal     Network IP
Connection Type  Wired
Infrared Distance    Non Infrared
Resolution    1 Megapixel
Lens Type    Varifocal
Lens Size    2.8-10mm
Mount Type  Ceiling, Wall
Compression Method    H.264, JPEG
Durability    Indoor, Vandal Resistant, Weather Resistant
Voltage  12vDC, 48vDC, PoE
Automatic Gain Control (AGC)    On (Low, Mid, High) / Off
Dimensions (W x H)  ø129.5 mm x 102.5 mm (H) {ø5-3/32 inches x 4-1/32 inches (H)}, Dome radius 41.5 mm {1-5/8 inches}
Electronic Shutter    Off(1/60), 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000
Image Device    Approx. 1/3 type CMOS image sensor
Minimum Scene Illumination  Color: 0.01 lx, BW: 0.003 lx (F1.6, Maximum shutter : Max. 1/30s, Gain : On(High))Color: 0.0007 lx, BW: 0.0002 lx(F1.6, Maximum shutter : Max. 16/30s, Gain : On(High)
Operating Humidity    10 to 90 % (no condensation)
Operating Temperature    -10°C to +50°C (14 °F to 122 °F)
OSD Menu    English, Italian, French, German, Spanish, Portuguese, Russian, Chinese, Japanese
Power Consumption  DC12 V / 370 mA / Approx. 4.5 W, DC48 V / 90 mA / Approx. 4.3 W
Privacy Zone    On/ Off (up to 8 zones available)
Protocols  IPv6 : TCP/IP, UDP/IP, HTTP, HTTPS, RTP, FTP, SMTP, DNS, NTP, SNMP, DHCPv6, MLD, ICMP, ARPIPv4 : TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTP, RTP/RTCP, FTP, SMTP, DHCP, DNS, DDNS, NTP, SNMP, UPnP, IGMP, ICMP, ARP
Scanning System    Progressive
Signal System    NTSC, PAL
Video Output    1.0 V [p-p] / 75 Ω, composite, o3.5 mm monaural mini jack
Digital Noise Reduction    High / Low
Motion Detection Tracking    4 areas, Sensitivity : 15 steps, Detection size : 10 steps
Automatic White Balance    AWC (2,000 - 10,000 K), ATW1 (2,700 - 6,000 K), ATW2 (2,000 - 6,000 K)
AudioYes
Auto Gain Control    Yes
Day/Night    Yes
Digital Noise Reduction    Yes
Automatic White Balance    Yes
Flickerless    Yes
Motion Detection Tracking    Yes
On Screen Display Menu    Yes
ONVIF  Yes
Digital ZoomYes
