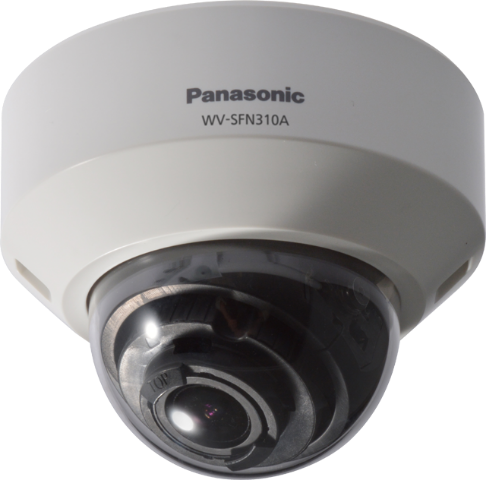

Panasonic WV-SFN310A 1 Megapixel Super Dynamic HD Dome Network Camera Electric D/N
SKU
WV-SFN310A
Model No
WV-SFN310A
$406.07
Product Highlights
- 720p HD images up to 60 fps
- Approximate 1/3 inches, high sensitivity MOS image sensor
- Maximum Screen Size is 1,980 x 1,080 @30 fps, H.264
- Multiple H.264 (High profile) streams (max. 4 streams) and JPEG streams ensure simultaneous real time monitoring and high resolution recording
- Enhanced Super Dynamic and ABS (Adaptive Black Stretch) technologies deliver 133 dB wider dynamic range compared to conventional cameras
Speak to an expert
The WV-SFN310A from Panasonic is a 720p Super Dynamic HD Dome Network Camera equipped with Smart Coding Technology, delivering exceptional image quality and advanced surveillance features. Designed for versatile and efficient monitoring, this camera ensures reliable performance, easy installation, and comprehensive detection capabilities, making it an ideal choice for both indoor and outdoor settings.
Panasonic WV-SFN310A Camera Features
- 720p HD Images: Provides clear video quality up to 60 fps for seamless monitoring.
- High Sensitivity MOS Sensor: Achieves excellent low-light performance (0.01 lx in color, 0.008 lx in B/W).
- Dynamic Range: Enhanced Super Dynamic and ABS technologies offer 133 dB dynamic range, outperforming conventional cameras.
- Smart Coding Technology: Reduces unnecessary video data, optimizing bandwidth usage and storage with advanced compression techniques.
- Flexibility in Installation: New camera attachment bracket and Auto Back Focus technology simplify installation in any orientation.
- Variable Image Quality: VIQS technology allows customized image quality settings for specific areas, reducing unnecessary data load.
- Additional Zoom Options: 2x optical and digital zoom enhance surveillance capabilities, ensuring detailed viewing.
- Privacy Zone Masking: Safeguard sensitive areas by masking up to 8 designated zones within the camera's field of view.
- Alarm Integration: Supports multiple alarm triggers for proactive security measures like notification and recording.
- Fog Compensation: Standard feature enhances visibility in adverse weather conditions.
- Multi-Language Support: User-friendly interface in various languages for global accessibility.
Detailed Specifications for Panasonic WV-SFN310A
| Camera Type | Dome Network Camera |
| Image Sensor | Approx. 1/3 inches MOS |
| Resolution | 720p (1280 x 720) |
| Max Frame Rate | 60 fps at 720p |
| Dynamic Range | 133 dB with Enhanced Super Dynamic |
| Low Light Sensitivity | 0.01 lx (Color), 0.008 lx (B/W) |
| Streaming | Multiple H.264 (max. 4 streams) and JPEG streams |
| Zoom | 2x optical zoom, 2x/4x digital zoom |
| Privacy Masking | Up to 8 areas |
| Alarm Inputs | 3 terminal inputs, VMD, and Panasonic alarm command support |
| Video Formats | H.264 and JPEG |
| Supported Protocols | HTTP, SSL, DDNS, etc. |
| Power Supply | PoE (Power over Ethernet) |
SKU  | WV-SFN310A |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Day/Night, Digital Noise Reduction, Motion Detection Tracking, ONVIF |
| Manufacturer | Panasonic |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | Non Infrared |
| Resolution | 1 Megapixel |
| Lens Type | Varifocal |
| Lens Size | 2.8-10mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, JPEG |
| Durability | Indoor |
| Voltage | 12vDC, 48vDC, PoE |
| Automatic Gain Control (AGC) | On (Low, Mid, High) / Off |
| Dimensions (W x H) | ø129.5 mm x 101 mm (H) {ø5-3/32 inches x 3-31/32 inches (H)} Dome radius 40 mm {1-9/16 inches} |
| Electronic Shutter | [1.3 mega pixel [16 : 9](60 fps mode)], Off(1/60), 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000,1/10000Other than [1.3 mega pixel [16 : 9](60 fps mode)], Off(1/30), 3/100, 3/120, 2/100, 2/120, 1/100, 1/120, 1/250,1/500,1/1000,1/2000, 1/4000, 1/10000 |
| Image Device | Approx. 1/3 type CMOS image sensor |
| Minimum Scene Illumination | Color: 0.01 lx, BW : 0.008 lx (F1.6, Maximum shutter : Max. Off (1/30s), Gain : On(High)), Color: 0.0007 lx, BW : 0.0005 lx (F1.6, Maximum shutter : Max. 16/30s, Gain : On(High)) |
| Operating Humidity | 10 to 90 % (no condensation) |
| Operating Temperature | -10°C to +50°C (14 °F to 122 °F) |
| OSD Menu | Multi-language: English / Italian / French / German / Spanish / Portuguese / Russian / Chinese / Japanese |
| Power Consumption | 4.5 W |
| Privacy Zone | On/ Off (up to 8 zones available) |
| Protocols | IPv6 : TCP/IP, UDP/IP, HTTP, HTTPS, RTP, FTP, SMTP, DNS, NTP,SNMP, DHCPv6, MLD, ICMP, ARPIPv4 : TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTP, RTP/RTCP, FTP, SMTP,DHCP, DNS, DDNS, NTP, SNMP, UPnP, IGMP, ICMP, ARP |
| Scanning System | Progressive scan |
| Digital Noise Reduction | High / Low |
| Angle of View | [16 : 9 mode] Horizontal : 28° (TELE) – 100° (WIDE), Vertical : 16° (TELE) – 54° (WIDE), [4 : 3 mode] Horizontal : 28° (TELE) – 100° (WIDE), Vertical : 21° (TELE) – 73° (WIDE) |
| Motion Detection Tracking | 4 areas, Sensitivity : 15 steps, Detection size : 10 steps |
| Automatic White Balance | AWC (2,000 - 10,000 K), ATW1 (2,700 - 6,000 K), ATW2 (2,000 - 6,000 K) |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Motion Detection Tracking | Yes |
| ONVIF | Yes |
