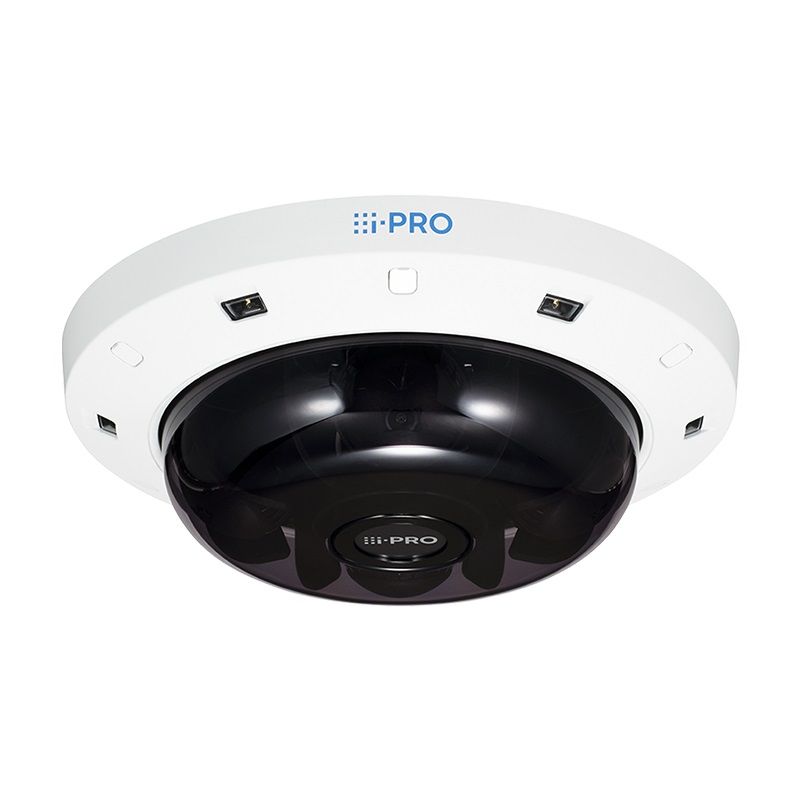

Panasonic WV-S8564LG 25 Megapixel Network IR Outdoor Dome Camera with 3.1mm Lens
SKU
WV-S8564LG
Model No
WV-S8564LG
$3,169.38
Product Highlights
- 4 x 6MP(25MP) 3328x1872 up to 15fps
- 360° coverage with one IP address
- Intelligent Auto (with AI Engine)
- Super Dynamic 120dB
- Color night vision (0.084 to 0.12 lx)
Speak to an expert
The Panasonic WV-S8564LG is an advanced 25 megapixel network IR outdoor dome camera designed for high-performance surveillance in AI analytics applications. With its lightweight structure, it simplifies installation while providing seamless coverage through 360/270-degree continuous images. Users can benefit from cutting-edge surveillance technologies that automatically identify people and vehicles, making it an ideal choice for enhancing security and efficiency.
Panasonic WV-S8564LG Camera Features
- High Resolution: 25 Megapixel capture (3328x1872) at up to 15fps for exceptional image clarity.
- Comprehensive Coverage: 360° coverage using a single IP address to minimize infrastructure requirements.
- Intelligent Auto: Employs advanced AI Engine for automatic scene adjustment and optimal performance.
- Super Dynamic Range: 120dB dynamic range for enhanced visibility in challenging lighting conditions.
- Color Night Vision: Operates down to 0.084 to 0.12 lux providing clear images even in low-light environments.
- Smart Coding: Reduces video file size without sacrificing quality utilizing advanced AI technology.
- Built-in IR LED: 360° infrared LED ensures visibility in complete darkness.
- Continuous View Assistance: 360/270-degree continuous views for comprehensive monitoring.
- Adjustable Tilt Angle: Wide range tilt angle adjustments for optimal camera positioning.
- ONVIF Compliance: Supports ONVIF® Profile G / M / S / T for interoperability with various systems.
- Security Certified: FIPS 140-2 level3 certified for enhanced security protocols.
Detailed Specifications for Panasonic WV-S8564LG
| Model | WV-S8564LG |
| Camera Type | Network IR Outdoor Dome |
| Resolution | 25 Megapixel (3328x1872) |
| Frame Rate | Up to 15fps |
| Coverage | 360° |
| Dynamic Range | 120dB Super Dynamic |
| Night Vision | Color night vision (0.084 to 0.12 lux) |
| IR LED | Built-in 360° IR LED |
| AI Features | Intelligent Auto and Smart Coding |
| Compliance | ONVIF® Profile G / M / S / T |
| Certification | FIPS 140-2 level3 |
SKU  | WV-S8564LG |
|---|---|
| Features | Audio, Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Motion Detection Tracking, On Screen Display Menu, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, 4K Resolution, Facial Recognition |
| Manufacturer | Panasonic |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | 61~100 Feet |
| Resolution | 25 Megapixel |
| Lens Type | Fixed |
| Lens Size | 3.1mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, JPEG, H.265 |
| Durability | Vandal Resistant, Weather Resistant |
| Voltage | PoE+ |
| Dimensions (W x H) | When using the attachment plate only : ø300 mm × 90 mm (H) {ø11-13/16 inches ×3-17/32 inches (H)} |
| Electronic Shutter | 15 fps mode: Max.1/10000s to Max.16/30s, 12.5 fps mode: Max.1/10000s to Max.16/25s |
| Image Device | 4 x 1/2.8 type CMOS image sensor |
| Minimum Scene Illumination | Color : 0.24 lx {30IRE, F1.44, 1/30 s}, Color : 0.34 lx {50IRE, F1.44, 1/30 s}, BW : 0.14 lx {50IRE, F1.44,1/30 s}, BW: 0 lx {50IRE, F1.44, 1/30 s with IR LED} |
| Operating Humidity | 10 to 100 % (no condensation) |
| Operating Temperature | -40 °C to +60 °C (-40 °F to 140 °F) |
| OSD Menu | English, Italian, French, German, Spanish, Portuguese, Russian, Chinese, Japanese |
| Power Consumption | Approx. 15 W |
| Privacy Zone | On / Off (up to 8 zones available) |
| Weatherproof | IP67, IP66 |
| Angle of View | Horizontal : 108°, Vertical : 56° |
| Rotation Angle | 0° (Off)/ 90°/ 180° (Upside-down)/ 270° |
| Motion Detection Tracking | On / Off, 4 areas available |
| Back Light Compensation | Off (only when Super dynamic |
| IR Distance | 30m/99 ft, 21m/69ft |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Motion Detection Tracking | Yes |
| On Screen Display Menu | Yes |
| Privacy Masking | Yes |
| ONVIF | Yes |
