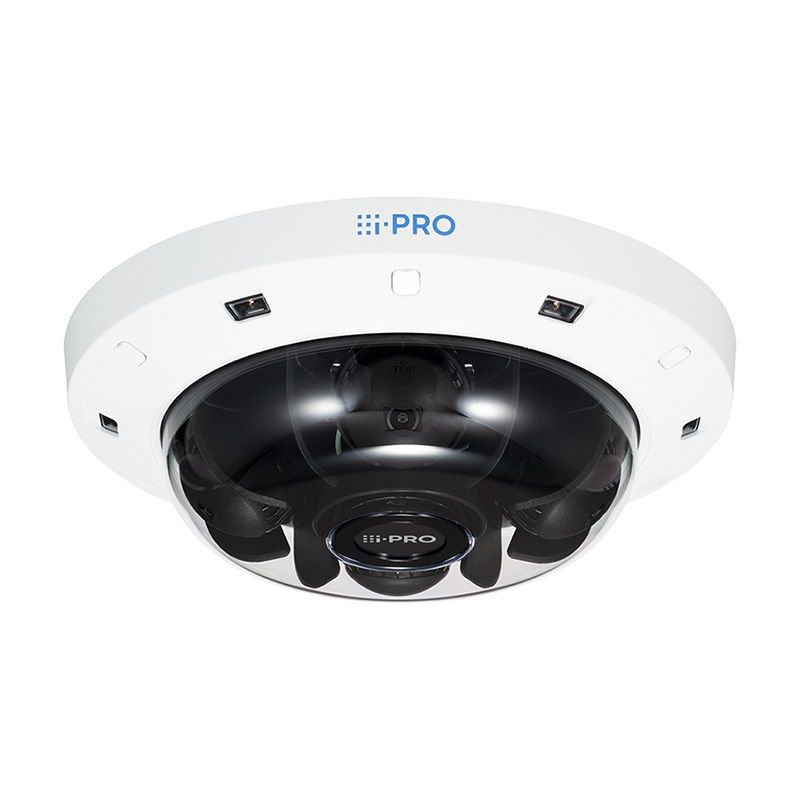

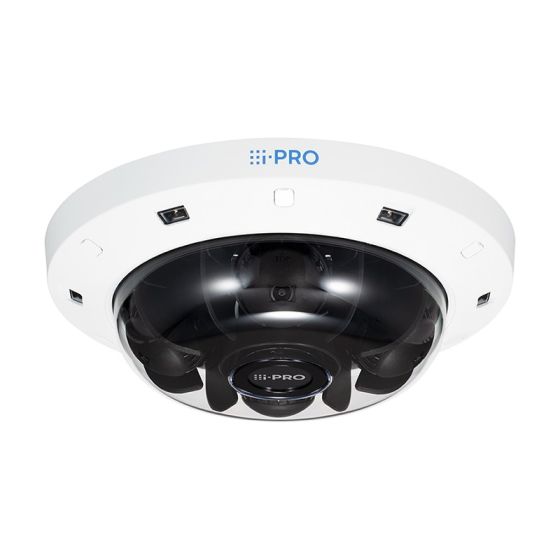

Panasonic WV-S8564L 25 Megapixel Network IR 4K Outdoor Dome Camera with 3.1mm Lens
SKU
WV-S8564L
Model No
WV-S8564L
$3,036.22
Product Highlights
- 4 x 6MP(25MP) 3328x1872 up to 15fps
- 360° coverage with one IP address
- Intelligent Auto (with AI Engine)
- Super Dynamic 120dB
- Color night vision (0.084 to 0.12 lx)
Speak to an expert
The WV-S8564L from Panasonic is a high-performance 25 megapixel network IR 4K outdoor dome camera equipped with a 3.1mm lens. This advanced camera features cutting-edge AI analytics applications designed for automatic identification of people and vehicles, ensuring swift integration of the latest surveillance technologies. Its lightweight and sleek design significantly reduces installation time, while providing exceptional 360/270-degree continuous imagery for comprehensive coverage.
Panasonic WV-S8564L Camera Features
- 4 x 6MP (25MP) Resolution: Delivers stunning clarity with a maximum resolution of 3328x1872 at up to 15fps, ensuring detailed image capture.
- 360° Coverage: Seamlessly covers vast areas with just one IP address, minimizing the need for multiple cameras.
- Intelligent Auto: Equipped with an AI Engine that adjusts settings automatically for optimal image quality in various conditions.
- Super Dynamic 120dB: Provides excellent wide dynamic range performance, enhancing visibility in challenging lighting conditions.
- Color Night Vision: Functioning effectively in low-light environments (0.084 to 0.12 lx), ensuring reliable surveillance day and night.
- Smart Coding: Utilizes AI Engine for intelligent video compression, optimizing storage while maintaining image quality.
- Built-in 360° IR LED: Ensures effective and reliable night surveillance with infrared illumination.
- Continuous View Assistance: Aids in providing uninterrupted 360/270-degree views for comprehensive situational awareness.
- Wide Range Tilt Angle Adjustment: Facilitates versatile camera positioning to cover various angles as needed.
- ONVIF® Compliance: Ensures interoperability with other security products and systems (ONVIF is a trademark of ONVIF, Inc).
- FIPS 140-2 Level 3 Certified: Meets rigorous security standards, making it suitable for government and sensitive environments.
Detailed Camera Specifications for Panasonic WV-S8564L
| Camera Type | Network IR Dome Camera |
| Resolution | 25 Megapixels (3328x1872) |
| Frame Rate | Up to 15fps |
| Lens Type | 3.1mm Lens |
| Coverage | 360° Coverage with One IP Address |
| AI Features | Intelligent Auto, Smart Coding |
| Dynamic Range | Super Dynamic 120dB |
| Night Vision | Color Night Vision (0.084 to 0.12 lx) |
| Infrared Capability | Built-in 360° IR LED |
| Installation | Lightweight and Easy to Install |
| Compliance | ONVIF® Profile G/M/S/T, FIPS 140-2 Level 3 |
SKU  | WV-S8564L |
|---|---|
| Features | Audio, Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Motion Detection Tracking, On Screen Display Menu, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, 4K Resolution, Facial Recognition |
| Manufacturer | Panasonic |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | 101 Feet + |
| Resolution | 25 Megapixel |
| Lens Type | Fixed |
| Lens Size | 3.1mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, M-JPEG, JPEG, H.265 |
| Durability | Vandal Resistant, Weather Resistant |
| Voltage | PoE+ |
| Dimensions (W x H) | When using the attachment plate only : ø300 mm × 90 mm (H) {ø11-13/16 inches ×3-17/32 inches (H)} |
| Electronic Shutter | 15 fps mode: Max.1/10000s to Max.16/30s, 12.5 fps mode: Max.1/10000s to Max.16/25s |
| Image Device | 4 x 1/2.8 type CMOS image sensor |
| Minimum Scene Illumination | Color : 0.084 lx {30IRE, F1.44, 1/30 s}, Color : 0.12 lx {50IRE, F1.44, 1/30 s}, BW : 0.05 lx {50IRE, F1.44,1/30 s}, BW: 0 lx {50IRE, F1.44, 1/30 s with IR LED} |
| Operating Humidity | 10 to 100 % (no condensation) |
| Operating Temperature | –40 °C to +60 °C {–40 °F to +140 °F} {Power on range : –20 °C to +60 °C (–4 °F to +140 °F)} Maximum temperature according to NEMA TS 2 (2.2.7): 74 °C(165 °F) |
| OSD Menu | English, Italian, French, German, Spanish, Portuguese, Russian, Chinese, Japanese |
| Power Consumption | Approx. 15 W |
| Privacy Zone | On / Off (up to 8 zones available) |
| Weatherproof | IP67, IP66 |
| Angle of View | Horizontal : 108°, Vertical : 56° |
| Rotation Angle | 0° (Off)/ 90°/ 180° (Upside-down)/ 270° |
| Motion Detection Tracking | On / Off, 4 areas available |
| IR Distance | 40m/131ft |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Motion Detection Tracking | Yes |
| On Screen Display Menu | Yes |
| Privacy Masking | Yes |
| ONVIF | Yes |
