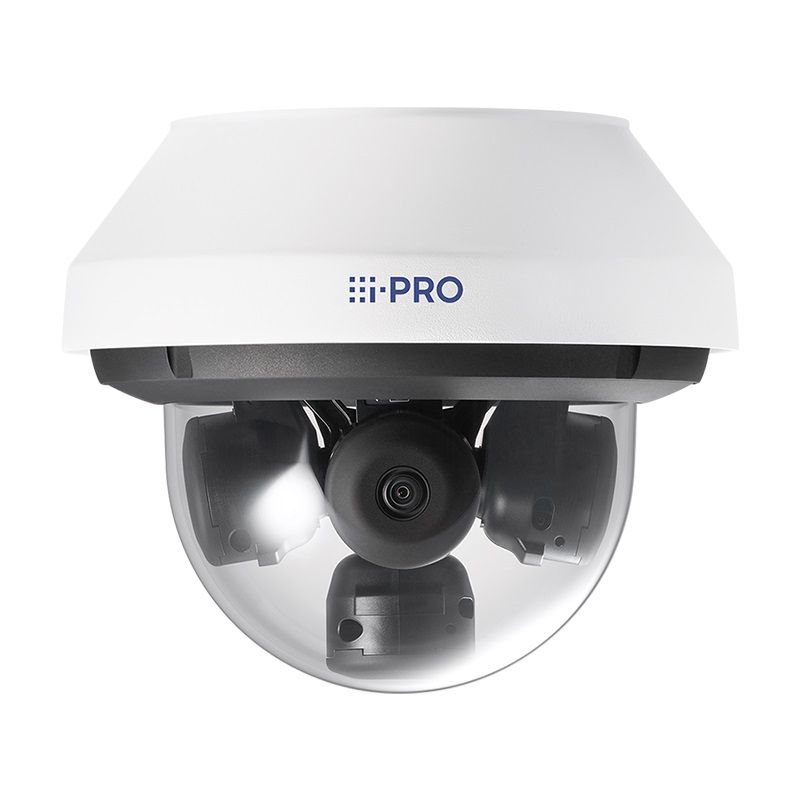

Panasonic WV-S8531N-2 8 Megapixel Network Outdoor Dome Camera with 2.9mm Lens
SKU
WV-S8531N-2
Model No
WV-S8531N-2
$4,942.12
Product Highlights
- 4 x FHD(8MP) 1920x1080 up to 30fps
- iA (intelligent Auto)
- Super Dynamic 120dB
- Color night vision (0.003 to 0.05 lx)
- H.265 Smart Coding
Speak to an expert
The WV-S8531N-2 from Panasonic is a cutting-edge 8 megapixel network outdoor dome camera featuring a 2.9mm lens. Designed for optimal performance in challenging environments, it delivers high-quality images, even in low light conditions, making it ideal for monitoring urban intersections. With intelligent features like Intelligent Auto (iA) and H.265 Smart Coding technology, this camera not only minimizes distortion but also enhances bandwidth efficiency, ensuring secure and reliable video streaming.
Panasonic WV-S8531N-2 Camera Features
- Resolution: 4 x FHD (8MP) 1920x1080 up to 30fps - Produces stunningly detailed images suitable for identification and analysis.
- Intelligent Auto (iA): Automatically adjusts key settings in real-time - Reduces motion blur and ensures optimal image quality during dynamic scenes.
- Super Dynamic 120dB: Enhanced dynamic range - Captures clear images in both bright highlights and deep shadows.
- Color Night Vision: Functionality in low light (0.003 to 0.05 lx) - Ensures visibility and detail capture in night-time conditions.
- H.265 Smart Coding: Greater bandwidth efficiency - Allows for longer recording times without sacrificing image quality.
- ClearSight Coating: Minimized lens distortion - Keeps the images clear and free from artifacts, enhancing overall visibility.
- Continuous View Assistance: Real-time monitoring support - Provides uninterrupted surveillance to help identify potential issues as they occur.
- Wide range tilt angle adjustment: Flexible installation options - Adapts to various monitoring needs and ensures comprehensive coverage of any area.
Panasonic WV-S8531N-2 Detailed Specifications
| Model | WV-S8531N-2 |
| Image Sensor | 8 Megapixel |
| Lens | 2.9mm |
| Video Format | H.265, Smart Coding |
| Low Light Performance | 0.003 to 0.05 lx |
| Dynamic Range | Super Dynamic 120dB |
| Frame Rate | Up to 30fps |
| Security Features | FIPS Publication 140-2 encryption |
SKU  | WV-S8531N-2 |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Motion Detection Tracking, On Screen Display Menu, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant |
| Manufacturer | Panasonic |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | Non Infrared |
| Resolution | 8 Megapixel |
| Lens Type | Fixed |
| Lens Size | 2.9mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, H.265 |
| Durability | Vandal Resistant, Weather Resistant |
| Voltage | PoE+ |
| Dimensions (W x H) | When using the attachment plate only : ø230 mm x 196 mm (H) {ø9-1/16 inches x 7-23/32 inches (H)}, Dome radius 80 mm {3-5/32 inches} |
| Electronic Shutter | 30 fps mode: Max.1/10000s to Max.16/30s, 25 fps mode: Max.1/10000s to Max.16/25s |
| Image Device | 1/2.8 type CMOS image sensor |
| Minimum Scene Illumination | Color : 0.05 lx, BW : 0.03 lx (50IRE, F2.0, Maximum shutter : Off (1/30s), AGC : 11), Color : 0.003 lx, BW : 0.002 lx (50IRE, F2.0, Maximum shutter : max. 16/30s, AGC : 11) *1 |
| Operating Humidity | 10 to 100 % (no condensation) |
| Operating Temperature | –40 °C to +60 °C {–40 °F to +140 °F} {Power On range : –20 °C to +60 °C (–4 °F to +140 °F)} |
| OSD Menu | English, Italian, French, German, Spanish, Portuguese, Russian, Chinese, Japanese |
| Power Consumption | Approx. 22 W |
| Privacy Zone | On / Off, up to 8 zones available |
| Weatherproof | IP66 |
| Angle of View | [16 : 9] Horizontal : 45 ° (TELE) – 104 ° (WIDE), Vertical : 25 ° (TELE) – 58 ° (WIDE) |
| Motion Detection Tracking | On / Off, 4 areas available |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Motion Detection Tracking | Yes |
| On Screen Display Menu | Yes |
| Privacy Masking | Yes |
| ONVIF | Yes |
