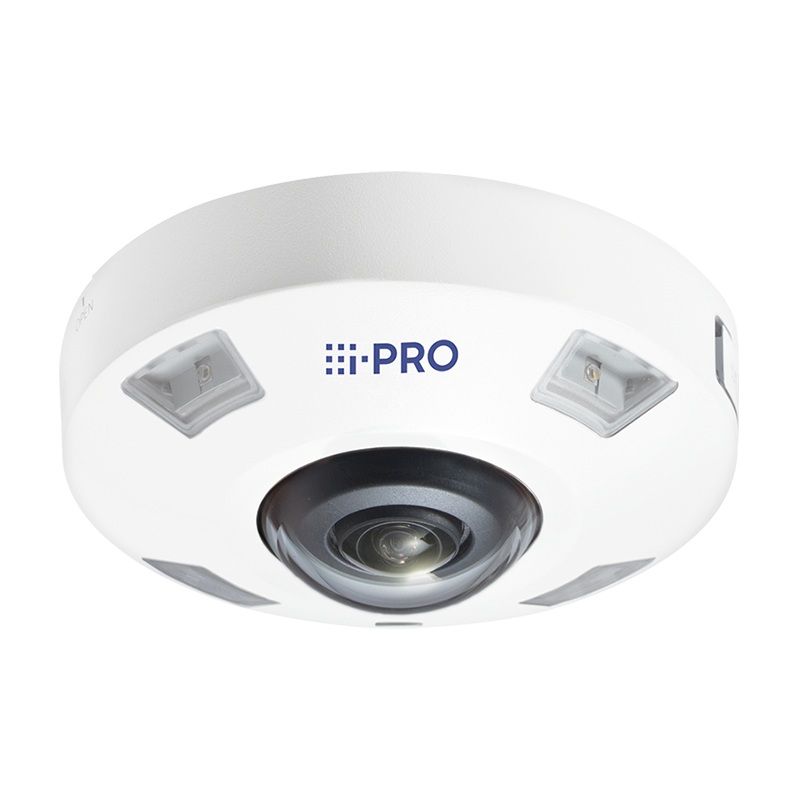

Panasonic WV-S4576LMA 12 Megapixel Network Security Camera with 1.4 mm Lens
SKU
WV-S4576LMA
Model No
WV-S4576LMA
$2,787.70
Product Highlights
- 12MP Outdoor 360-degree fisheye camera
- Up to 3 Edge AI analytic apps
- Built-in IR-LED(14m, 45ft)
- IP66, IK10 certified
- Built-in FIPS 140-2 Level 3 Certified Secure Element (Edge Lock® SE050F NXP® Semiconductors)
Speak to an expert
The WV-S4576LMA from Panasonic is a cutting-edge 12 Megapixel network security camera designed for exceptional video surveillance and advanced business intelligence. Featuring a 360-degree fisheye lens and sophisticated edge AI capabilities, this camera provides comprehensive coverage and significant analytics power for enhanced security solutions.
Panasonic WV-S4576LMA Camera Features
- 12MP Outdoor 360-degree fisheye camera: Offers high-resolution imagery for detailed surveillance across wide areas.
- Up to 3 Edge AI analytic apps: Enables real-time data processing for smarter security, allowing for advanced methods of detection and alerting.
- Built-in IR-LED (14m, 45ft): Ensures clear visibility in low-light conditions, maintaining surveillance effectiveness around the clock.
- IP66, IK10 certified: Guarantees durability and resistance against harsh weather conditions and vandalism, making it suitable for outdoor use.
- Built-in FIPS 140-2 Level 3 Certified Secure Element (Edge Lock® SE050F NXP® Semiconductors): Provides encryption for secure data transmission, enhancing cybersecurity for sensitive information.
- NDAA Compliant: Assures compliance with national security standards, making it a reliable choice for government and sensitive installations.
Detailed Camera Specifications for Panasonic WV-S4576LMA
| Camera Type | 12 Megapixel Network Security Camera |
| Lens Type | 1.4 mm Fisheye |
| Viewing Angle | 360 degrees |
| Analytics | Supports up to 3 Edge AI apps |
| IR Capability | Built-in IR-LED (14m, 45ft) |
| Weather Resistance | IP66 rated |
| Impact Resistance | IK10 certified |
| Secure Element | FIPS 140-2 Level 3 Certified (Edge Lock® SE050F) |
| Compliance | NDAA Compliant |
| Dimensions | Compact design suitable for seamless installation |
| Power Supply | DC power adapter included |
| Weight | Lightweight, enhancing installation flexibility |
SKU  | WV-S4576LMA |
|---|---|
| Features | Audio, Auto Gain Control, AI Analytics, Automatic White Balance, Back Light Compensation, Digital Noise Reduction, Motion Detection Tracking, On Screen Display Menu, ONVIF, Privacy Masking, Wide Dynamic Range |
| Manufacturer | Panasonic |
| NDAA | Compliant |
| Connection Type | Wired |
Infrared Distance  | 0~60 Feet |
| Resolution | 12 Megapixel |
| Lens Type | Fixed |
| Lens Size | 1.4mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, JPEG, H.265 |
| Durability | Vandal Resistant, Weather Resistant |
| Voltage | 12vDC, 48vDC, PoE |
| Dimensions (W x H) | When using the attachment plate only : ø154 mm × 60.3 mm (H) {ø6-1/16 inches × 2-3/8 inches (H)} Dome radius 35 mm {1-3/8 inches} |
| Electronic Shutter | max. 16/30s to Max. 1/10000s |
| Image Device | Approx. 1/2 type 12MP CMOS image sensor |
| Minimum Scene Illumination | 0.2 lx (30IRE, F1.9, 1/30s, AGC:11)*, 0.3 lx (50IRE, F1.9, 1/30s, AGC:11), 0.02 lx (50IRE, F1.9, 16/30s, AGC:11) |
| Operating Humidity | 10 to 100 % (no condensation) |
| Operating Temperature | -40 °C to +50 °C (-40 °F to 122 °F) / Off -40 °C to +60 °C (-40 °F to 140 °F) |
| Power Consumption | DC 12 V 1.1 A/Approx. 13.2 W , PoE (IEEE802.3af compliant, Alternative A), DC 48 V 270 mA/Approx. 12.95 W (Class 0 device) |
| Privacy Zone | On / Off, Up to 8 zones available |
| Weatherproof | IP66 |
| Angle of View | Horizontal : 183° Vertical : 183° |
| Motion Detection Tracking | On / Off, 4 areas available |
| Back Light Compensation | BLC, HLC |
| IR Distance | 14m/45ft |
| Audio | Yes |
| Auto Gain Control | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Motion Detection Tracking | Yes |
| On Screen Display Menu | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| ONVIF | Yes |
