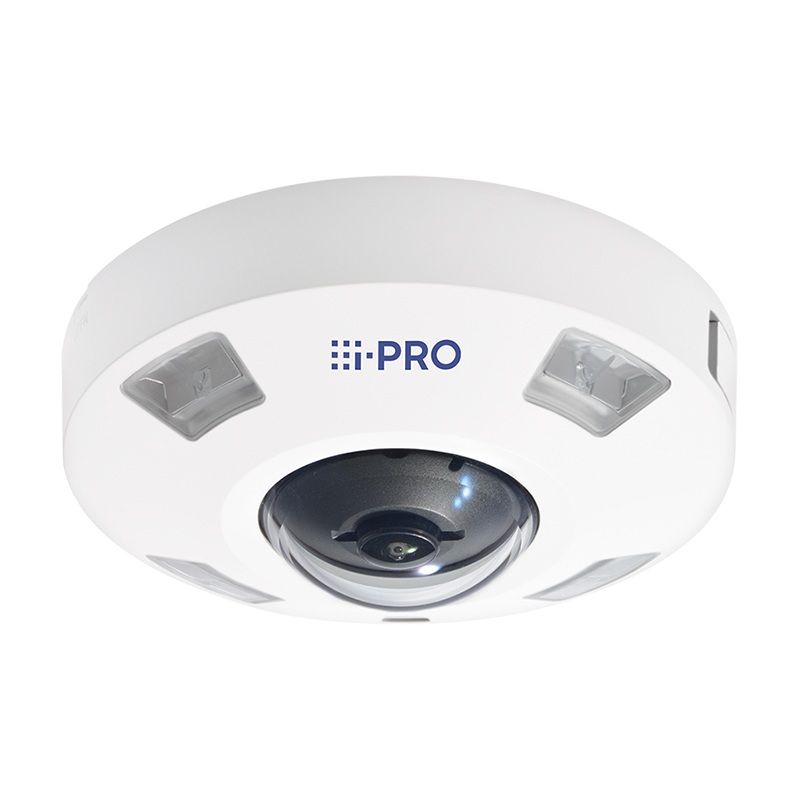

Panasonic WV-S4556LMA 5 Megapixel Network Outdoor Security Camera with 0.84 mm Lens
SKU
WV-S4556LMA
Model No
WV-S4556LMA
$1,654.98
Product Highlights
- 5MP Outdoor 360-degree fisheye camera
- Up to 3 Edge AI analytic apps
- Built-in IR-LED(14m, 45ft)
- IP66, IK10 certified
- Built-in FIPS 140-2 Level 3 Certified Secure Element (Edge Lock® SE050F NXP® Semiconductors)
Speak to an expert
The WV-S4556LMA from Panasonic is an advanced 5 Megapixel network outdoor security camera designed for comprehensive video surveillance and enhanced business intelligence. This camera not only provides high-resolution imagery, but also features cutting-edge Edge AI analytics, ensuring your security needs are met with precision and reliability.
Panasonic WV-S4556LMA Camera Features
- 5MP Outdoor 360-degree fisheye camera: Offers exceptionally wide coverage and detailed imaging, allowing for effective monitoring of large areas.
- Up to 3 Edge AI analytic apps: Enable automated analysis such as motion detection and person recognition, enhancing the efficiency of surveillance operations.
- Built-in IR-LED(14m, 45ft): Provides superior nighttime visibility, ensuring continuous monitoring even in low-light conditions.
- IP66, IK10 certified: Guarantees resistance to harsh weather and vandalism, making it suitable for outdoor installations.
- Built-in FIPS 140-2 Level 3 Certified Secure Element: Ensures secure data transmission and integrity, protecting sensitive information.
- NDAA Compliant: Meets regulatory standards, ensuring the highest level of trust and reliability in security systems.
Detailed Specifications for Panasonic WV-S4556LMA
| Camera Resolution | 5 Megapixels |
| Lens Type | 0.84 mm Fisheye Lens |
| Field of View | 360 degrees |
| Temperature Resistance | -30°C to +60°C |
| Power Supply | PoE (Power over Ethernet) |
| Weight | Approx. 2.5 kg |
SKU  | WV-S4556LMA |
|---|---|
| Features | Audio, Auto Gain Control, AI Analytics, Automatic White Balance, Back Light Compensation, Digital Noise Reduction, Motion Detection Tracking, On Screen Display Menu, ONVIF, Privacy Masking, Wide Dynamic Range |
| Manufacturer | Panasonic |
| NDAA | Compliant |
| Connection Type | Wired |
Infrared Distance  | 0~60 Feet |
| Resolution | 5 Megapixel |
| Lens Type | Fixed |
| Lens Size | 0.84mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, JPEG, H.265 |
| Durability | Vandal Resistant, Weather Resistant |
| Voltage | 12vDC, 48vDC, PoE |
| Dimensions (W x H) | When using the attachment plate : ø154 mm × 60.3 mm (H) {ø6-1/16 inches × 2-3/8 inches (H)} , Dome radius 35 mm {1-3/8 inches} |
| Electronic Shutter | max. 16/30s to Max. 1/10000s |
| Image Device | Approx. 1/3 type 5MP CMOS image sensor |
| Minimum Scene Illumination | 0.11 lx (30IRE, F2.4, 1/30s, AGC:11)*, 0.15 lx (50IRE, F2.4, 1/30s, AGC:11), 0.01 lx (50IRE, F2.4, 16/30s, AGC:11) |
| Operating Humidity | 10 to 100 % (no condensation) |
| Operating Temperature | -40 °C to +50 °C (-40 °F to 122 °F) / Off -40 °C to +60 °C (-40 °F to 140 °F) |
| Power Consumption | DC12 V 1.03 A, Approx. 12.4 W, DC48 V 260 mA, Approx. 12.5 W (Class 0 device) |
| Privacy Zone | On / Off, Up to 8 zones available |
| Weatherproof | IP66 |
| Angle of View | Horizontal : 186°, Vertical : 186° |
| Motion Detection Tracking | On / Off, 4 areas available |
| Back Light Compensation | BLC, HLC |
| IR Distance | 14m/45ft |
| Audio | Yes |
| Auto Gain Control | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Motion Detection Tracking | Yes |
| On Screen Display Menu | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| ONVIF | Yes |
There are no related videos.
Write Your Own Review
Manuals & Specifications
WV-S4556LMA-Specsheet WV-S4556LMA-Installation-Guide WV-S4556LMA-Operating-InstructionsTools & Calculators
