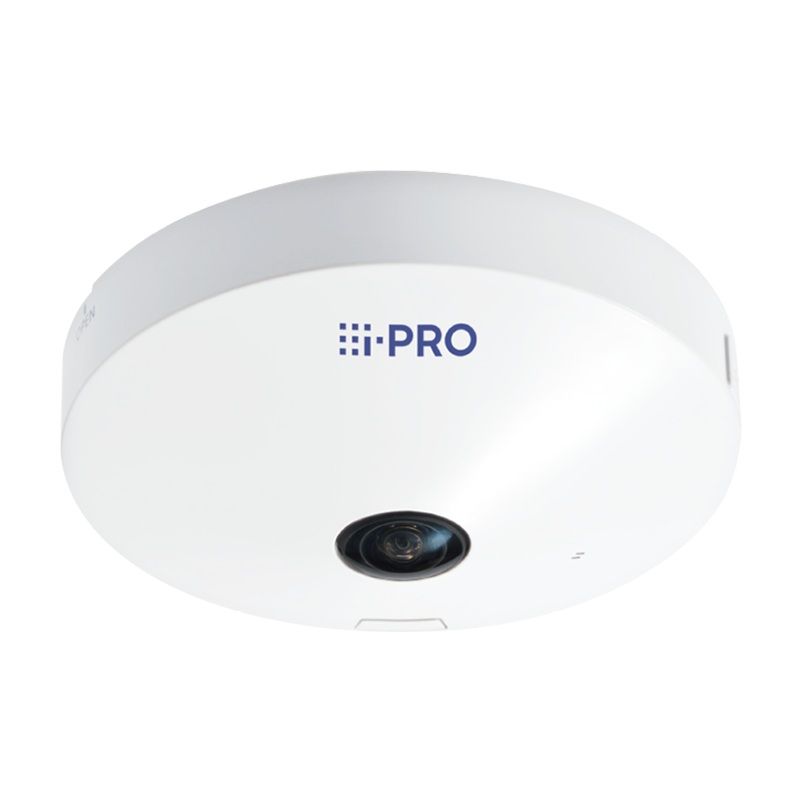

Panasonic WV-S4176A 12 Megapixel Network Security Camera with 1.4 mm Lens
SKU
WV-S4176A
Model No
WV-S4176A
$949.10
Product Highlights
- 12MP Indoor 360-degree fisheye camera
- Up to 3 Edge AI analytic apps
- Built-in FIPS 140-2 Level 3 Certified Secure Element (Edge Lock® SE050F NXP® Semiconductors)
- NDAA Compliant
Speak to an expert
The WV-S4176A from Panasonic is an innovative edge AI 360-degree fisheye camera designed for advanced video surveillance and business intelligence. With its high-resolution 12MP imaging capabilities and robust built-in security features, this camera provides exceptional clarity and reliable performance for indoor environments, ensuring optimal monitoring and analysis.
PANASONIC WV-S4176A Camera Features
- 12MP Indoor 360-degree fisheye camera: Offers unparalleled image quality and wide coverage, allowing for comprehensive surveillance with minimal blind spots.
- Up to 3 Edge AI analytic apps: Supports advanced analytics directly on the camera, enhancing incident detection and reducing the need for additional processing resources.
- Built-in FIPS 140-2 Level 3 Certified Secure Element: Ensures the highest level of data protection with an embedded secure element, safeguarding sensitive information from unauthorized access.
- NDAA Compliant: Meets the stringent requirements of the National Defense Authorization Act, ensuring reliability for government and critical infrastructure projects.
PANASONIC WV-S4176A Detailed Specifications
| Camera Type | 360-degree fisheye |
| Resolution | 12 Megapixels |
| Lens | 1.4 mm |
| AI Analytics | Up to 3 Edge AI apps supported |
| Security Compliance | FIPS 140-2 Level 3, NDAA Compliant |
SKU  | WV-S4176A |
|---|---|
| Features | Audio, Auto Gain Control, AI Analytics, Automatic White Balance, Back Light Compensation, Digital Noise Reduction, Motion Detection Tracking, On Screen Display Menu, ONVIF, Privacy Masking, Wide Dynamic Range |
| Manufacturer | Panasonic |
| NDAA | Compliant |
| Connection Type | Wired |
Resolution  | 12 Megapixel |
| Lens Type | Fixed |
| Lens Size | 1.4mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, JPEG, H.265 |
| Voltage | 12vDC, 48vDC, PoE |
| Dimensions (W x H) | ø150 mm × 49.5 mm (H) {ø5-29/32 inches × 1-15/16 inches (H)} |
| Electronic Shutter | max. 16/30s to Max. 1/10000s |
| Image Device | Approx. 1/2 type 12MP CMOS image sensor |
| Minimum Scene Illumination | 0.2 lx (30IRE, F1.9, 1/30s, AGC:11)*, 0.3 lx (50IRE, F1.9, 1/30s, AGC:11), 0.02 lx (50IRE, F1.9, 16/30s, AGC:11) |
| Operating Humidity | 10 to 90 % (no condensation) |
| Operating Temperature | -10 °C to +50 °C (14 °F to 122 °F) |
| Power Consumption | DC 12 V 680 mA/Approx. 8.2 W , PoE (IEEE802.3af compliant), DC 48 V 180 mA/Approx. 8.6 W (Class 0 device) |
| Privacy Zone | On / Off, Up to 8 zones available |
| Angle of View | Horizontal : 183°, Vertical : 183° |
| Motion Detection Tracking | On / Off, 4 areas available |
| Back Light Compensation | BLC, HLC |
| Audio | Yes |
| Auto Gain Control | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Motion Detection Tracking | Yes |
| On Screen Display Menu | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| ONVIF | Yes |
