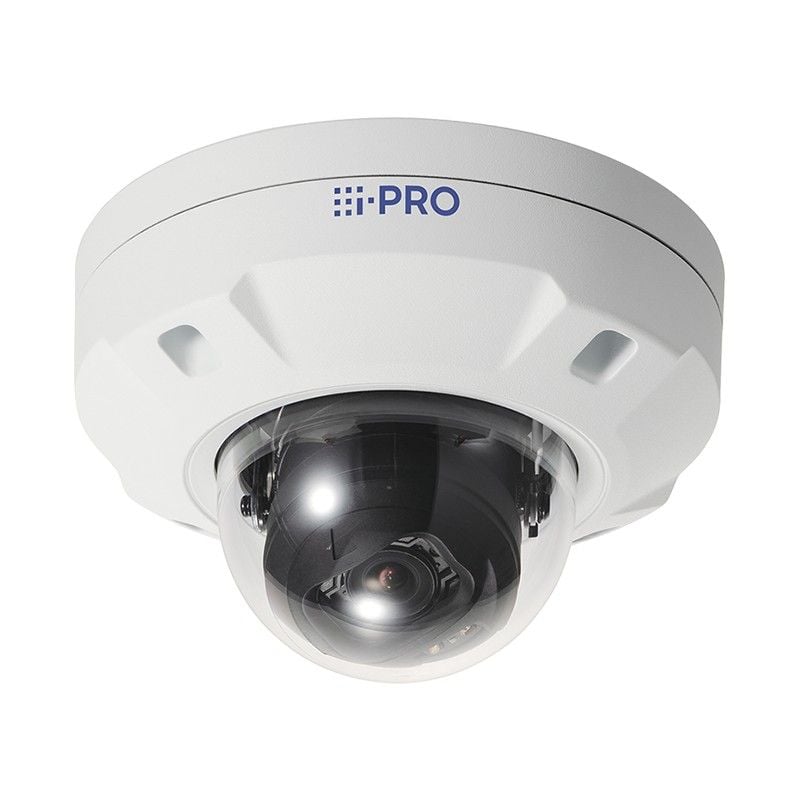

Panasonic WV-S2536LNA 2 Megapixel Network Camera with AI Engine, 2.9-9mm Lens
SKU
WV-S2536LNA
Model No
WV-S2536LNA
$856.78
Product Highlights
- 2MP Outdoor dome camera
- Up to 2 Edge AI analytic apps
- Built-in IR-LED(70m, 230ft)
- IP66, IK10 certified
- Built-in FIPS 140-2 Level 3 Certified
Speak to an expert
The WV-S2536LNA from Panasonic is a highly advanced 2 megapixel network camera designed for outdoor use, equipped with an AI engine and a versatile 2.9-9mm lens that ensures high performance and quality surveillance.
Panasonic WV-S2536LNA Key Features
- 2MP Outdoor Dome Camera: Provides high-resolution imaging to capture clear details, ensuring effective surveillance in various environments.
- Up to 2 Edge AI Analytic Apps: Enhances security capabilities by utilizing AI for advanced analytic functionalities, allowing for real-time threat detection and monitoring.
- Built-in IR-LED (70m, 230ft): Delivers exceptional night vision, enabling the camera to capture clear footage even in complete darkness, ensuring 24/7 surveillance.
- IP66, IK10 Certified: Offers robust protection against harsh weather conditions and vandal resistance, ensuring durability and reliability in outdoor settings.
- Built-in FIPS 140-2 Level 3 Certified: Meets strict security standards, providing assurance for secure data handling and transmission.
- SecureElement (EdgeLock® SE050F NXP® Semiconductors): Integrates advanced security features to protect sensitive data and unauthorized access, enhancing overall system integrity.
- NDAA Compliant: Ensures adherence to U.S. governmental regulations, making it a safe choice for federal installations and sensitive operations.
Detailed Camera Specifications
| Feature | Details |
|---|---|
| Model | WV-S2536LNA |
| Camera Type | Network Camera |
| Resolution | 2 Megapixels |
| Lens | 2.9-9mm |
| Night Vision Range | Up to 70m (230ft) |
| Protection Rating | IP66, IK10 |
| Security Compliance | NDAA Compliant |
| AI Capabilities | Up to 2 Edge AI Analytic Apps |
| Certification | FIPS 140-2 Level 3 |
SKU  | WV-S2536LNA |
|---|---|
| Features | Audio, Auto Gain Control, Automatic White Balance, Back Light Compensation, Digital Noise Reduction, Motion Detection Tracking, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant |
| Manufacturer | Panasonic |
| NDAA | Compliant |
| Connection Type | Wired |
Infrared Distance  | 101 Feet + |
| Resolution | 2 Megapixel |
| Lens Type | Varifocal |
| Lens Size | 2.9-9mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, H.265 |
| Durability | Vandal Resistant, Weather Resistant |
| Voltage | 12vDC, PoE |
| Automatic Gain Control (AGC) | The level can be set in the range of 0 to 11. |
| Dimensions (W x H) | ø154 mm x 105 mm (H) {ø6-1/16 inches x 4-1/8 inches (H)} |
| Electronic Shutter | [60 fps Mode] 1/60 Fix to 1/10000 Fix, [30 fps/15 fps mode] 1/30 Fix to 1/10000 Fix, [50 fps Mode] 1/50 Fix to 1/10000 Fix, [25 fps/12.5 fps mode] 1/25 Fix to 1/10000 Fix |
| Image Device | Approx. 1/2.8 type CMOS image sensor |
| Minimum Scene Illumination | Color : 0.007 lx (30IRE, F1.3, 1/30s) , Color : 0.009 lx (50IRE, F1.3, 1/30s), BW : 0.005 lx (50IRE, F1.3, 1/30s) , BW : 0 lx (50IRE, F1.3,1/30s with IR LED) |
| Operating Humidity | 10 to 100 % (no condensation) |
| Operating Temperature | -40 °C to +60 °C (-40 °F to 140 °F) |
| Power Consumption | DC48 V 190 mA, Approx. 9.1 W (Class 0 device) |
| Privacy Zone | On / Off, Up to 8 zones available |
| Weatherproof | IP66 |
| Digital Noise Reduction | The level can be set in the range of 0 to 255. |
| Angle of View | [16 : 9 mode] Horizontal : 36° (TELE) – 113° (WIDE), Vertical : 20° (TELE) – 60° (WIDE), [ 4 : 3 mode] Horizontal : 26° (TELE) – 82° (WIDE), Vertical : 20° (TELE) – 60° (WIDE) |
| Rotation Angle | 0 ° / 90 ° / 180 ° / 270 ° |
| Motion Detection Tracking | On / Off, 4 areas available |
| Back Light Compensation | BLC (Back light compensation) / HLC (High light compensation) / Off (only when Super dynamic / Intelligent Auto : Off |
| Automatic White Balance | ATW1 / ATW2 / AWC |
| IR Distance | 70m/230ft |
| Audio | Yes |
| Auto Gain Control | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| ONVIF | Yes |
