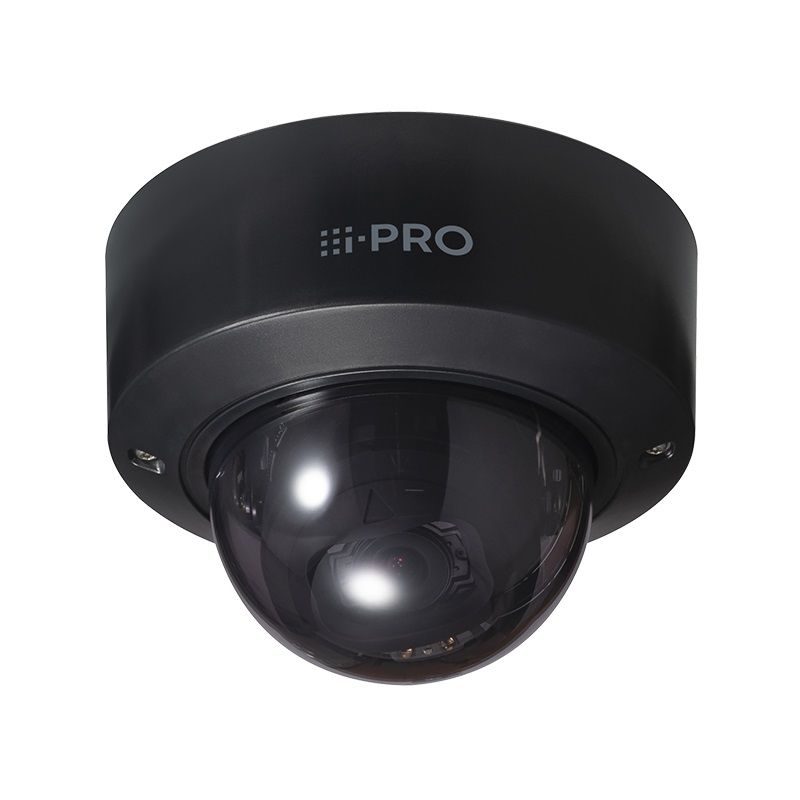

Panasonic WV-S2236LGA-B S-series 2 Megapixel Network Camera with AI Engine, 2.9 -9mm
SKU
WV-S2236LGA-B
Model No
WV-S2236LGA-B
$978.50
Product Highlights
- 2MP Indoor vandal dome camera
- Up to 2 Edge AI analytic apps
- Built-in IR-LED(50m, 164ft)
- IK10 certified
- NDAA Compliant
Speak to an expert
The Panasonic WV-S2236LGA-B S-series 2 Megapixel Network Camera is a high-performance indoor vandal dome camera that combines advanced AI technology with robust security features. This 1080P camera offers a motorized zoom lens, exceptional low-light performance with built-in IR-LED, and complies with stringent security standards, making it ideal for any surveillance application.
Panasonic WV-S2236LGA-B Camera Features
- 2MP Indoor vandal dome camera: Provides high-definition 1080P video for clear and detailed surveillance.
- Up to 2 Edge AI analytic apps: Enhances security capabilities by enabling real-time analytics directly at the edge.
- Built-in IR-LED (50m, 164ft): Ensures excellent visibility in low-light conditions, up to 50 meters, for uninterrupted monitoring.
- IK10 certified: Vandal-resistant design that withstands impacts for added durability and reliability.
- Built-in FIPS 140-2 Level 3 Certified Secure Element: Provides enhanced security with Edge Lock® SE050F, protecting sensitive data and communications.
- NDAA Compliant: Meets regulatory standards for security equipment, ensuring compliance and reliability for U.S. government projects.
Detailed Camera Specifications
| Camera Type | 2 Megapixel Indoor Vandal Dome |
| Video Resolution | 1080P |
| Lens Type | 2.9 - 9.0mm 3.1x Motorized Zoom |
| IR Range | Up to 50m (164ft) |
| Certifications | IK10, FIPS 140-2 Level 3, NDAA Compliant |
| Color | Black with Smoke Dome |
| Warranty | 5 Years |
| Firmware Requirements | Video Insight 7.9.x or higher |
SKU  | WV-S2236LGA-B |
|---|---|
| Features | Audio, Auto Gain Control, AI Analytics, Automatic White Balance, Back Light Compensation, Digital Noise Reduction, Motion Detection Tracking, On Screen Display Menu, ONVIF, Privacy Masking, Self Recording, Vandal Resistant, Wide Dynamic Range |
| Manufacturer | Panasonic |
| NDAA | Compliant |
| Connection Type | Wired |
Infrared Distance  | 101 Feet + |
| Resolution | 2 Megapixel |
| Lens Type | Varifocal |
| Lens Size | 2.9-9mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, M-JPEG, JPEG, H.265 |
| Durability | Indoor, Vandal Resistant |
| Voltage | 12vDC, PoE |
| Automatic Gain Control (AGC) | The level can be set in the range of 0 to 11. |
| Dimensions (W x H) | ø129.5 mm x 102.5 mm (H) {ø5-3/32 inches x 4-1/32 inches (H)} Dome radius 41.5 mm {1-5/8 inches} |
| Electronic Shutter | [60 fps Mode] 1/60 Fix to 1/10000 Fix, [30fps/15fps mode] 1/30 Fix to 1/10000 Fix, [50 fps Mode] 1/50 Fix to 1/10000 Fix, [25fps/12.5fps mode] 1/25 Fix to 1/10000 Fix |
| Image Device | Approx. 1/2.8 type CMOS image sensor |
| Minimum Scene Illumination | Color : 0.018 lx (30IRE, F1.3, 1/30s, AGC:11), 0.025 lx (50IRE, F1.3, 1/30s, AGC:11), 0.0016 lx (50IRE, F1.3, 16/30s, AGC:11) |
| Operating Humidity | 10 to 90 % (no condensation) |
| Operating Temperature | -10 °C to +50 °C (14 °F to 122 °F) |
| Power Consumption | DC12 V 720 mA, Approx. 8.6 W, DC48 V 180 mA, Approx. 8.7 W (Class 0 device) |
| Privacy Zone | On / Off, Up to 8 zones available |
| S/N Ratio | Max.144 dB |
| Digital Noise Reduction | The level can be set in the range of 0 to 255. |
| Angle of View | [16 : 9 mode] Horizontal : 36° (TELE) – 114° (WIDE), Vertical : 20° (TELE) – 60° (WIDE), [ 4 : 3 mode] Horizontal : 27° (TELE) – 82° ( WIDE), Vertical : 20° (TELE) – 60° (WIDE) |
| Rotation Angle | 0 ° / 90 ° / 180 ° / 270 ° |
| Motion Detection Tracking | On / Off, 4 areas available |
| Back Light Compensation | BLC (Back light compensation) / HLC (High light compensation) / Off (only when Super dynamic / Intelligent Auto : Off) |
| Automatic White Balance | ATW1 / ATW2 / AWC |
| IR Distance | 50m/164ft |
| Audio | Yes |
| Auto Gain Control | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Intelligent Infrared | Yes |
| Motion Detection Tracking | Yes |
| On Screen Display Menu | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| ONVIF | Yes |
