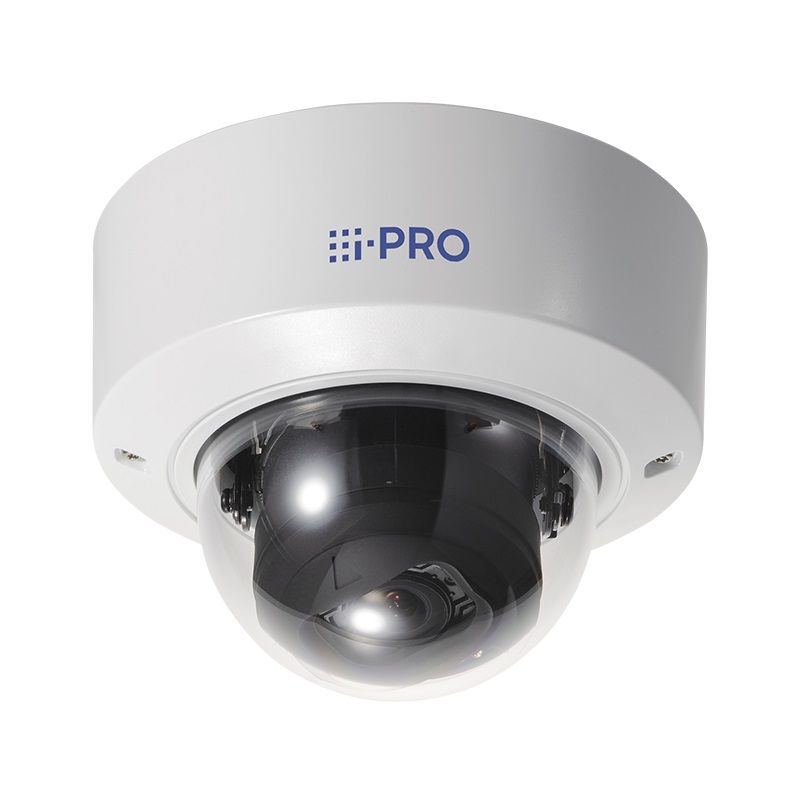

Panasonic WV-S2236LA S-series 2 Megapixel Network Camera with AI Engine, 2.9 -9mm
SKU
WV-S2236LA
Model No
WV-S2236LA
$710.08
Product Highlights
- 2MP Indoor vandal dome camera
- Up to 2 Edge AI analytic apps
- Built-in IR-LED(70m, 230ft)
- IK10 certified
- Built-in FIPS 140-2 L2 Level 3 Certified Secure Element (Edge Lock® SE050F NXP® Semiconductors)A Compliant
Speak to an expert
Panasonic WV-S2236LA S-series Camera Features
Experience the power of advanced surveillance with the Panasonic WV-S2236LA S-series 2 Megapixel Network Camera. This high-performance indoor vandal dome camera is equipped with an AI engine and a versatile 2.9-9mm motorized zoom lens, providing exceptional image quality in 1080P resolution. Designed for durability and security, it features advanced compression codecs, built-in infrared capabilities, and is IK10 rated for impact resistance, making it the perfect choice for both commercial and industrial applications.
Key Features
- 2MP Indoor Vandal Dome Camera: Delivers clear and sharp images at 1080P, ideal for monitoring and security.
- AI Engine: Supports up to 2 Edge AI analytic applications, enhancing threat detection and reducing false alarms.
- Built-in IR-LED: Provides visibility up to 70m (230ft) in complete darkness, ensuring 24/7 monitoring capability.
- IK10 Certified: Protects against vandalism and impact, ensuring durability and reliability in high-risk environments.
- FIPS 140-2 L2 Level 3 Compliant: Features built-in secure element (Edge Lock® SE050F NXP® Semiconductors), ensuring data integrity and privacy.
Detailed Specifications for Panasonic WV-S2236LA
| Camera Type | Indoor Vandal Dome |
| Megapixels | 2 MP |
| Lens Type | 2.9-9.0mm Motorized Zoom |
| IR Range | Up to 70m (230ft) |
| Impact Resistance | IK10 Certified |
| Compliance | FIPS 140-2 Level 3 |
| Warranty | 5 Years |
| Video Compression | H.265/H.264/MJPEG |
| Software Requirement | Video Insight 7.9.x or higher |
SKU  | WV-S2236LA |
|---|---|
| Features | Audio, Auto Gain Control, AI Analytics, Automatic White Balance, Back Light Compensation, Digital Noise Reduction, Motion Detection Tracking, On Screen Display Menu, ONVIF, Privacy Masking, Self Recording, Wide Dynamic Range |
| Manufacturer | Panasonic |
| Connection Type | Wired |
Infrared Distance  | 101 Feet + |
| Resolution | 2 Megapixel |
| Lens Type | Varifocal |
| Lens Size | 2.9-9mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, M-JPEG, JPEG, H.265 |
| Durability | Indoor |
| Voltage | 12vDC, PoE |
| Automatic Gain Control (AGC) | The level can be set in the range of 0 to 11. |
| Dimensions (W x H) | ø129.5 mm x 102.5 mm (H) {ø5-3/32 inches x 4-1/32 inches (H)} Dome radius 41.5 mm {1-5/8 inches} |
| Electronic Shutter | [60 fps Mode] 1/60 Fix to 1/10000 Fix, [30fps/15fps mode] 1/30 Fix to 1/10000 Fix, [50 fps Mode] 1/50 Fix to 1/10000 Fix, [25fps/12.5fps mode] 1/25 Fix to 1/10000 Fix |
| Image Device | Approx. 1/2.8 type CMOS image sensor |
| Minimum Scene Illumination | Color : 0.007 lx (30IRE, F1.3, 1/30s, AGC:11), 0.009 lx (50IRE, F1.3, 1/30s, AGC:11), 0.0006 lx (50IRE, F1.3, 16/30s, AGC:11) |
| Operating Humidity | 10 to 90 % (no condensation) |
| Operating Temperature | -10 °C to +50 °C (14 °F to 122 °F) |
| Power Consumption | DC12 V 720 mA, Approx. 8.6 W, DC48 V 180 mA, Approx. 8.7 W (Class 0 device) |
| Privacy Zone | On / Off, Up to 8 zones available |
| S/N Ratio | Max.144 dB |
| Digital Noise Reduction | The level can be set in the range of 0 to 255. |
| Angle of View | [16 : 9 mode] Horizontal : 36° (TELE) – 114° (WIDE), Vertical : 20° (TELE) – 60° (WIDE), [ 4 : 3 mode] Horizontal : 27° (TELE) – 82° (WIDE), Vertical : 20° (TELE) – 60° (WIDE) |
| Rotation Angle | 0 ° / 90 ° / 180 ° / 270 ° |
| Motion Detection Tracking | On / Off, 4 areas available |
| Back Light Compensation | BLC (Back light compensation) / HLC (High light compensation) / Off (only when Super dynamic / Intelligent Auto : Off) |
| Automatic White Balance | ATW1 / ATW2 / AWC |
| IR Distance | 70m/230ft |
| Audio | Yes |
| Auto Gain Control | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Intelligent Infrared | Yes |
| Motion Detection Tracking | Yes |
| On Screen Display Menu | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| ONVIF | Yes |
