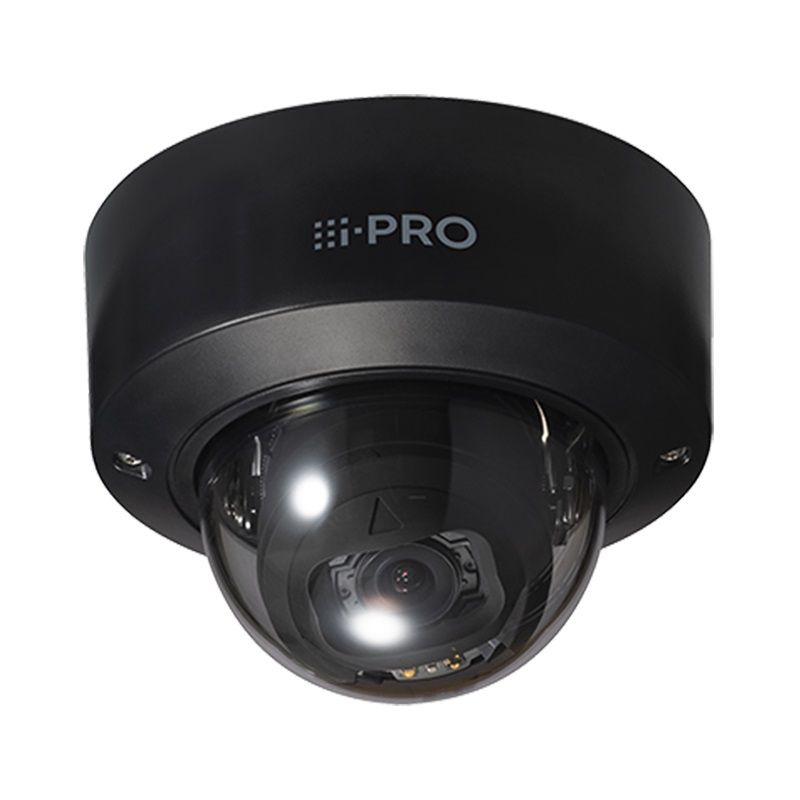

Panasonic WV-S2236LA-B S-series 2 Megapixel Network Camera with AI Engine, 2.9 -9mm
SKU
WV-S2236LA-B
Model No
WV-S2236LA-B
$978.50
Product Highlights
- 2MP Indoor vandal dome camera
- Up to 2 Edge AI analytic apps
- IK10 certified
- Built-in FIPS 140-2 Level 3 Certified Secure Element (Edge Lock® SE050F NXP® Semiconductors)
- NDAA Compliant
Speak to an expert
The Panasonic WV-S2236LA-B S-series 2 Megapixel Network Camera is equipped with advanced AI capabilities and a robust design, making it ideal for indoor surveillance. This 1080P vandal dome camera offers smart analytics, a versatile motorized zoom lens, and comprehensive compliance features, ensuring high security and usability in various environments.
Panasonic WV-S2236LA-B Camera Features
- 2MP Indoor Vandal Dome Camera: High-resolution imaging provides clear and detailed video footage, enhancing security monitoring.
- Up to 2 Edge AI Analytic Apps: Leverage advanced analytics for improved surveillance and actionable insights, maximizing security effectiveness.
- IK10 Certified: Vandal-resistant design ensures durability and long-term performance in challenging environments.
- FIPS 140-2 Level 3 Certified Secure Element: Ensures high-level data security and integrity, essential for sensitive surveillance applications.
- NDAA Compliant: Meets regulatory requirements, ensuring reliable and trustworthy operation within the U.S. Government sector.
Detailed Specifications for Panasonic WV-S2236LA-B
| Camera Type | 2 Megapixel Indoor Vandal Dome |
| Resolution | 1080P |
| Lens Type | 2.9-9.0mm 3.1x Motorized Zoom |
| Video Compression | H.265/H.264/MJPEG |
| IR LED | Included for low-light operation |
| Compliance | IK10, FIPS 140-2 Level 3, NDAA Compliant |
| Warranty | 5 Years |
| Software Requirement | Video Insight 7.9.x or higher |
| Color | Black |
| Model Type | Made-to-order |
SKU  | WV-S2236LA-B |
|---|---|
| Features | Audio, Auto Gain Control, AI Analytics, Automatic White Balance, Back Light Compensation, Digital Noise Reduction, Motion Detection Tracking, On Screen Display Menu, ONVIF, Privacy Masking, Self Recording, Vandal Resistant, Wide Dynamic Range |
| Manufacturer | Panasonic |
| NDAA | Compliant |
| Connection Type | Wired |
Infrared Distance  | 101 Feet + |
| Resolution | 2 Megapixel |
| Lens Type | Varifocal |
| Lens Size | 2.9-9mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, M-JPEG, JPEG, H.265 |
| Durability | Indoor, Vandal Resistant |
| Voltage | 12vDC, PoE |
| Automatic Gain Control (AGC) | The level can be set in the range of 0 to 11. |
| Dimensions (W x H) | ø129.5 mm x 102.5 mm (H) {ø5-3/32 inches x 4-1/32 inches (H)} Dome radius 41.5 mm {1-5/8 inches} |
| Electronic Shutter | [60 fps Mode] 1/60 Fix to 1/10000 Fix, [30fps/15fps mode] 1/30 Fix to 1/10000 Fix, [50 fps Mode] 1/50 Fix to 1/10000 Fix, [25fps/12.5fps mode] 1/25 Fix to 1/10000 Fix |
| Image Device | Approx. 1/2.8 type CMOS image sensor |
| Minimum Scene Illumination | Color : 0.007 lx (30IRE, F1.3, 1/30s, AGC:11), 0.009 lx (50IRE, F1.3, 1/30s, AGC:11), 0.0006 lx (50IRE, F1.3, 16/30s, AGC:11) |
| Operating Humidity | 10 to 90 % (no condensation) |
| Operating Temperature | -10 °C to +50 °C (14 °F to 122 °F) |
| Power Consumption | DC12 V 720 mA, Approx. 8.6 W, DC48 V 180 mA, Approx. 8.7 W (Class 0 device) |
| Privacy Zone | On / Off, Up to 8 zones available |
| S/N Ratio | Max.144 dB |
| Digital Noise Reduction | The level can be set in the range of 0 to 255. |
| Angle of View | [16 : 9 mode] Horizontal : 36° (TELE) – 114° (WIDE), Vertical : 20° (TELE) – 60° (WIDE), [ 4 : 3 mode] Horizontal : 27° (TELE) – 82° (WIDE), Vertical : 20° (TELE) – 60° (WIDE) |
| Rotation Angle | 0 ° / 90 ° / 180 ° / 270 ° |
| Motion Detection Tracking | On / Off, 4 areas available |
| Back Light Compensation | BLC (Back light compensation) / HLC (High light compensation) / Off (only when Super dynamic / Intelligent Auto : Off) |
| Automatic White Balance | ATW1 / ATW2 / AWC |
| IR Distance | 70m/230ft |
| Audio | Yes |
| Auto Gain Control | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Intelligent Infrared | Yes |
| Motion Detection Tracking | Yes |
| On Screen Display Menu | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| ONVIF | Yes |
