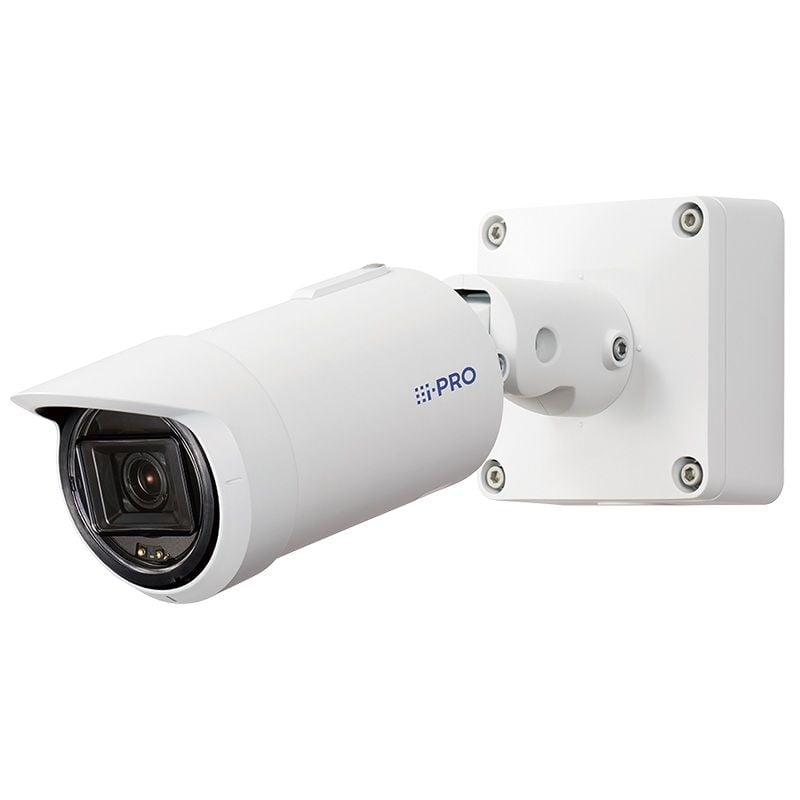

Panasonic WV-S1536LTA 2 Megapixel Network Outdoor Bullet Camera with 9-21 mm Lens
SKU
WV-S1536LTA
Model No
WV-S1536LTA
$1,016.09
Product Highlights
- 2MP Outdoor bullet camera
- Up to 2 Edge AI analytic apps
- Built-in IR-LED(70m, 230ft)
- IP66, IK10 certified
- Built-in FIPS 140-2 Level 3 Certified Secure Element (Edge Lock® SE050F NXP® Semiconductors)
Speak to an expert
The WV-S1536LTA from Panasonic is an S-series 2MP network camera with AI engine, designed for exceptional outdoor performance and security. Equipped with advanced features and robust design, this camera ensures high-quality surveillance with intelligent analytics to enhance safety and security.
Panasonic WV-S1536LTA + Camera Features
- 2MP Outdoor Bullet Camera: Delivers high-resolution video for clear image capture in various lighting conditions.
- Up to 2 Edge AI Analytic Apps: Allows integration of advanced AI applications for real-time data processing and enhanced security alerts.
- Built-in IR-LED (70m, 230ft): Provides superior night vision capabilities, ensuring visibility in complete darkness.
- IP66, IK10 Certified: Offers exceptional weather resistance and vandal-proof design, making it suitable for outdoor installation.
- Built-in FIPS 140-2 Level 3 Certified Secure Element: Ensures secure data transmission and storage with advanced encryption, protecting sensitive information.
- NDAA Compliant: Adheres to the latest security regulations, reflecting commitment to data protection and privacy.
Panasonic WV-S1536LTA + Detailed Specifications
| Camera Type | 2 Megapixel Network Outdoor Bullet Camera |
| Lens | 9-21 mm Lens |
| Resolution | 2MP |
| AI Capabilities | Up to 2 Edge AI analytic apps |
| Night Vision | Built-in IR-LED (70m, 230ft) |
| Weather Resistance | IP66 Certified |
| Vandal Resistance | IK10 Certified |
| Security Features | Built-in FIPS 140-2 Level 3 Secure Element |
| Compliance | NDAA Compliant |
SKU  | WV-S1536LTA |
|---|---|
| Features | Audio, AI Analytics, Automatic White Balance, Back Light Compensation, Digital Noise Reduction, Motion Detection Tracking, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range |
| Manufacturer | Panasonic |
| NDAA | Compliant |
| Connection Type | Wired |
Infrared Distance  | 101 Feet + |
| Resolution | 2 Megapixel |
| Lens Type | Varifocal |
| Lens Size | 9-21mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, M-JPEG, H.265 |
| Durability | Vandal Resistant, Weather Resistant |
| Voltage | 12vDC, PoE |
| Dimensions (W x H) | ø133 mm (W) x 133 mm (H) x 383 mm (D) {ø5-1/4 inches (W) x 5-1/4 inches (H) x 15-3/32 inches (D)} |
| Electronic Shutter | [60 fps Mode] 1/60 Fix to 1/10000 Fix, [30 fps/15 fps mode] 1/30 Fix to 1/10000 Fix [50 fps Mode] 1/50 Fix to 1/10000 Fix, [25 fps/12.5 fps mode] 1/25 Fix to 1/10000 Fix |
| Image Device | Approx. 1/2.8 type CMOS image sensor |
| IR LEDs | High / Middle / Low / Off, Maximum irradiation distance : 70 m {Approx. 230 ft} (30IRE) 50 m {Approx. 164 ft} (50IRE) |
| Minimum Scene Illumination | 0.007 lx (30IRE, F1.3, 1/30s, AGC:11)* 0.009 lx (50IRE, F1.3, 1/30s, AGC:11) 0.0006 lx (50IRE, F1.3, 16/30s, AGC:11)* |
| Operating Humidity | 10 to 100 % (no condensation) |
| Operating Temperature | -40 °C to +60 °C (-40 °F to 140 °F) |
| Power Consumption | DC12 V 900 mA, Approx. 10.8 W DC48 V 220 mA, Approx. 10.6 W (Class 0 device) |
| Privacy Zone | On / Off, Up to 8 zones available |
| Weatherproof | IP66 |
| Digital Noise Reduction | The level can be set in the range of 0 to 255. |
| Angle of View | [16 : 9 mode] Horizontal : 15° (TELE) – 36° (WIDE), Vertical : 9° (TELE) – 20° (WIDE) [ 4 : 3 mode] Horizontal : 11° (TELE) – 27° (WIDE), Vertical : 9° (TELE) – 20° (WIDE) |
| Motion Detection Tracking | On / Off, 4 areas available |
| Back Light Compensation | BLC, HLC |
| Automatic White Balance | ATW1/ ATW2/ AWC |
| IR Distance | 50m/164ft |
| Audio | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| ONVIF | Yes |
