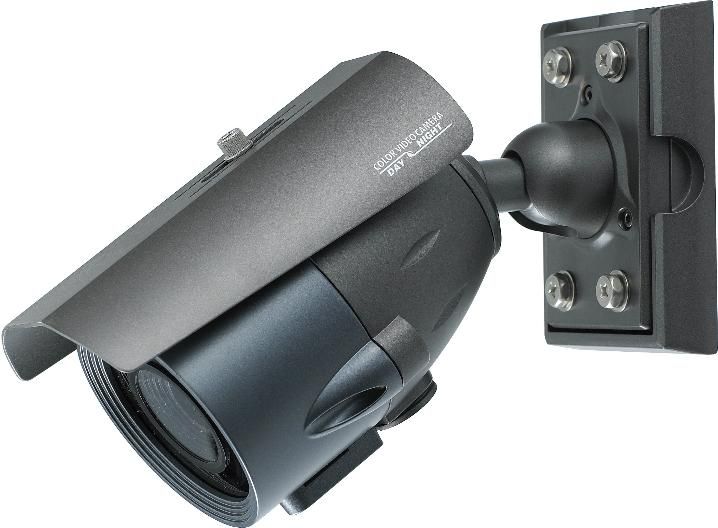

CNB WFM-24VF, Monalisa Weather-Proof IR Camera, 600TVL, 3.8-9.5MM Vari-Focal
SKU
wfm-24vf
Model No
WFM-24VF
$216.59
Product Highlights
- 1/3" High Sensitivity CCD
- Ultra High Resolution : 600 TV Lines(BW 650TV Lines)
- Built-in DC Iris Vari-focal Lens(f=3.8~9.5mm)
- TDN(ICR), DNR
- Built-in IR LEDs(66EA)
Speak to an expert
The CNB WFM-24VF is a top-tier Monalisa Weather-Proof IR Camera designed for optimal performance in various weather conditions. With its advanced features like a high sensitivity 1/3” CCD sensor and a flexible vari-focal lens, this camera delivers exceptional image clarity at 600 TV lines of resolution. It’s equipped with infrared LEDs for night vision and built-in advanced technologies such as DNR and TDN, ensuring reliable surveillance 24/7. Perfect for both indoor and outdoor environments, the WFM-24VF combines durability with high performance, making it an ideal choice for comprehensive security needs.
Key Features
- 1/3" High Sensitivity CCD: Captures clear images even in low light conditions.
- Ultra High Resolution: 600 TV Lines (BW 650 TV Lines): Ensures highly detailed imagery for better monitoring.
- Built-in DC Iris Vari-focal Lens (f=3.8~9.5mm): Offers adjustable zoom capabilities for different surveillance scenarios.
- TDN (ICR), DNR: Provides superior noise reduction and transitions between day and night modes seamlessly.
- Built-in IR LEDs (66EA): Enables clear night vision up to 164 feet.
- Min. Illumination: 0.00 Lux: Guarantees visibility in complete darkness for 24/7 monitoring.
- External Adjustment (Tele/Wide, Near/Far): Allows for precise focus adjustments on-site.
- Cable Back-Through Bracket: Enhances installation convenience and aesthetics.
- Built-in Fan: Maintains optimal operating temperature for better performance.
- Weather Proof Housing: Protects against elements, making it suitable for outdoor use.
- 24VAC/12VDC Dual Voltage: Versatile power options for easy integration.
CNB WFM-24VF Camera Specifications
| Camera Type | Monalisa Weather-Proof IR Camera |
| Resolution | 600 TV Lines (BW 650 TV Lines) |
| Sensor Type | 1/3” High Sensitivity CCD |
| Lens Type | DC Iris Vari-focal Lens (f=3.8~9.5mm) |
| Minimum Illumination | 0.00 Lux |
| IR LEDs | 66 LEDs |
| Night Vision Range | Up to 164 feet |
| Power Supply | 24VAC / 12VDC Dual Voltage |
| Weather Proof Rating | Yes |
| Special Features | External Adjustments, TDN (ICR), DNR, Built-in Fan |
SKU  | wfm-24vf |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Back Light Compensation, Digital Noise Reduction, Motion Detection Tracking, On Screen Display Menu, Privacy Masking, Weather Resistant |
| Manufacturer | CNB |
Camera Signal  | Analog |
| Resolution | 600 TVL |
| Sensor Option | 1/3" CCD |
| Lens Type | Varifocal |
| Lens Size | 3.8-9.5mm |
| Infrared Distance | 101 Feet + |
| Durability | Weather Resistant |
| Mount Type | Ceiling, Wall |
| Voltage | 12vDC, 24vAC |
| Electronic Shutter | 1/60~1/120,000 Sec. |
| Image Device | 1/3" High Sensitivity CCD |
| Image Pixels Total | 811(H) x 508(V) 410K |
| Image Pixels-Effective | 768(H) x 494(V) 380K |
| IR Distance | Max. 50m |
| IR Wavelength | 850nm |
| Minimum Scene Illumination | Day (0.05Lux), Night(0.00Lux, IR LED On) |
| Dimensions (W x H) | 92.5 x 104 x 165 mm |
| OSD Menu | English, Chinese |
| Power Consumption | Max. 10W/0.83A |
| Privacy Zone | On/Off (4 Programmable Zone) |
| S/N Ratio | More than 50dB(AGC Off) |
| Scanning Horizontal | 15.734 KHz |
| Scanning System | 2:1 Interlace |
| Scanning Vertical | 59.94 Hz |
| Signal System | NTSC |
| Video Output | 1.0V p-p (75?, Composite) |
| Digital Noise Reduction | Low, Middle, High, Off |
| Mirror | Horizontal |
| Backlight Compensation | Off, Low, Middle, High |
| Automatic White Balance | Auto |
| Auto Gain Control | On/Off (Dip Switch) |
| IR LEDs | 66EA |
| Motion Detection | On/Off (4 Programmable Zone) |
| Back Light Compensation | Yes |
| Automatic White Balance | Yes |
| Digital Noise Reduction | Yes |
| Mirror | Yes |
| On Screen Display Menu | Yes |
| Privacy Masking | Yes |
| Auto Gain Control | Yes |
| Motion Detection Tracking | Yes |
