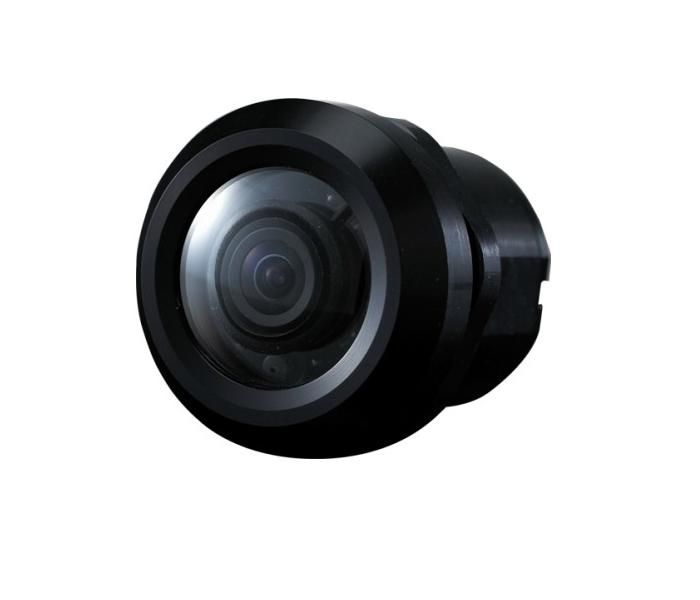

Weldex WDP-5437M2 2 Megapixel Full HD IP Flush Mount Camera, 3.7mm Lens

SKU
WDP-5437M2
Model No
WDP-5437M2
$388.70
Volume Discounts Volume
Discounts
Free System Design Free System
Design
Lifetime Tech Support Lifetime
Tech Support
Free Shipping Over $450* Free Shipping
Over $450*
Product Highlights
  • Sony IMX122 1/2.9 CMOS Full-HD SENSOR
  • Up to 30fps@1080p (H.264)
  • Progressive scan
  • Power over Ethernet (PoE)
  • IP69K

The Weldex WDP-5437M2 is a state-of-the-art 2 megapixel full HD IP flush mount camera equipped with a 3.7mm lens, designed to provide clear and detailed surveillance footage in various environments. With advanced features such as Power over Ethernet and built-in infrared LEDs for night vision, this camera ensures reliable performance and ease of installation.

Weldex WDP-5437M2 Camera Features

  • Sony IMX122 1/2.9” CMOS Full-HD SENSOR: Delivers exceptional image quality with vivid colors and rich details.
  • Up to 30fps@1080p (H.264): Ensures smooth video playback, capturing every moment efficiently.
  • Progressive scan: Reduces motion blur and enhances image clarity, ideal for fast-moving subjects.
  • Power over Ethernet (PoE): Simplifies installation by requiring only one cable for both power and data transmission.
  • IP69K: Withstands harsh conditions, being dust-tight and able to handle high-pressure water jets, perfect for outdoor use.
  • Built-in heater: Ensures reliable operation in low-temperature environments, preventing lens fogging.
  • Built-In LEDs: Provides excellent night vision capabilities, capturing clear images in low light.
  • 15G Vibration: Designed to endure heavy vibrations, ensuring durability in challenging settings.

Weldex WDP-5437M2 Detailed Specifications

ModelWDP-5437M2
Megapixels2 Megapixel
Lens Size3.7mm
Sensor TypeSony IMX122 1/2.9” CMOS
Max Frame Rate30fps@1080p
Video CompressionH.264
Scan TypeProgressive Scan
Power SourcePower over Ethernet (PoE)
Ingress ProtectionIP69K
Operating Temperature-30°C to 60°C
Shock Resistance15G Vibration
Night VisionBuilt-in LEDs
SKU  WDP-5437M2
Features  ONVIF, Weather Resistant
Manufacturer  Weldex
Camera Signal     Network IP
Connection Type  Wired
Infrared Distance    Non Infrared
Resolution    2 Megapixel
Lens Type    Fixed
Lens Size    3.7mm
Mount Type  Ceiling
Compression Method    M-JPEG
Durability    Weather Resistant
Voltage  9-28vDC
Automatic Gain Control (AGC)    Low / middle / high
Dimensions (W x H)  Diameter 54? x Length 53.4mm (Camera unit)
Electronic Shutter    Auto / flicker , NTSC : 1/30sec ~ 1/50,000sec , PAL : 1/25sec ~ 1/50,000sec
Image Device    Sony IMX122 1/2.9” CMOS Full-HD SENSOR
Minimum Scene Illumination  1.0Lux(Color), 0.5Lux(BW), 0.02Lux (Sens-up x60)
Operating Humidity    10 ~ 90% RH, non condensing
Operating Temperature    -40°C ~ +70°C
Power Consumption  Max 6.5W
Protocols  IPv4, TCP/IP, HTTP, HTTPS, UPnP, BONJOUR RTP/RTSP, SMTP, FTP, DHCP, NTP, DNS, DDNS, SNMP
S/N Ratio  More than 50dB
Scanning System    Progressive Scan
Signal System    NTSC , PAL
Weatherproof    IP66
Digital Noise Reduction    2DNR / 3DNR / SMART NR
Back Light Compensation  BLC / HSBLC / OFF
Automatic White Balance    AWB / Manual / Indoor / Outdoor
Auto Gain Control    Yes
Day/Night    Yes
Digital Noise Reduction    Yes
Automatic White Balance    Yes
Back Light Compensation    Yes
Heater & Fan    Yes
Motion Detection Tracking    Yes
ONVIF  Yes
