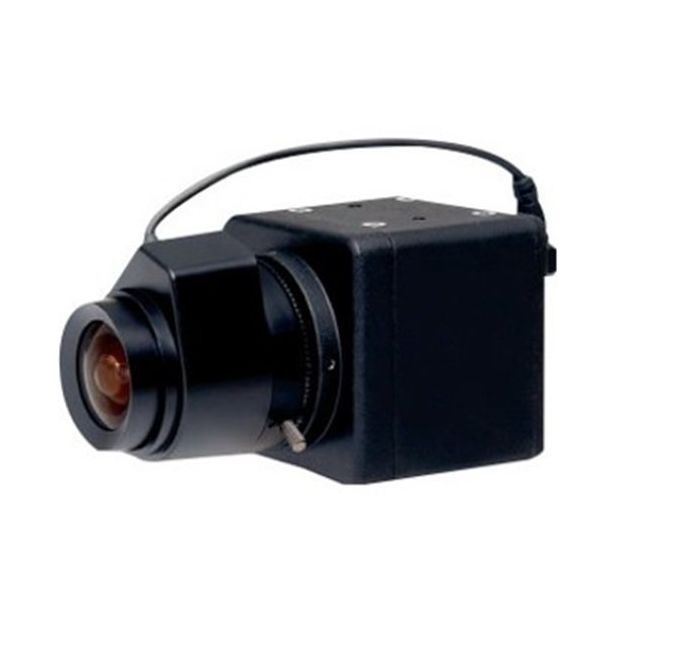

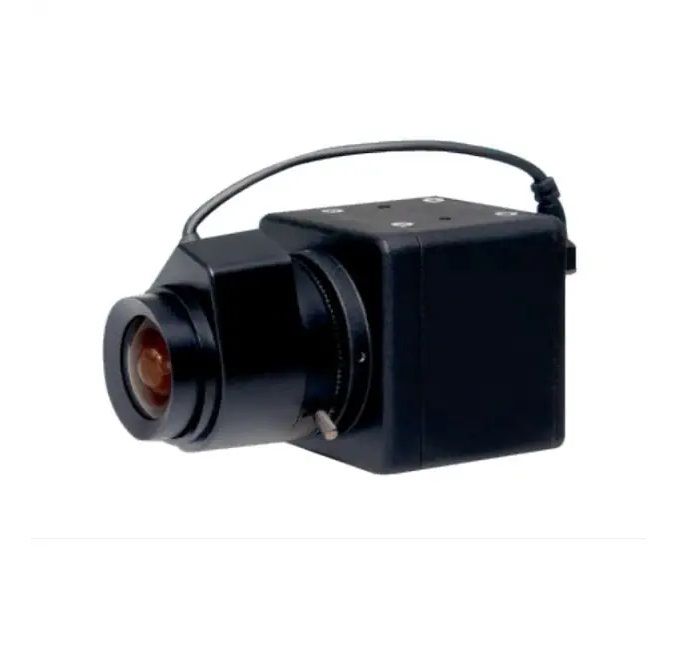

Weldex WDAC-4277DT 1/3" High Resolution Digital Box Camera

SKU
WDAC-4277DT
Model No
WDAC-4277DT
$213.01
Volume Discounts Volume
Discounts
Free System Design Free System
Design
Lifetime Tech Support Lifetime
Tech Support
Free Shipping Over $450* Free Shipping
Over $450*
Product Highlights
  • 1/3" Sony Super HAD CCD
  • User Friendly OSD Menu Control
  • High Resolution of 600 TV Lines
  • Day & Night
  • Electronic IRIS

The Weldex WDAC-4277DT is a state-of-the-art 1/3" high resolution digital box camera designed for exceptional image clarity and versatile functionality, making it an ideal choice for both professional and personal surveillance needs.

Weldex WDAC-4277DT Camera Features

  • 1/3" Sony Super HAD CCD: Ensures superior image quality and color accuracy for clear and vibrant visuals.
  • User Friendly OSD Menu Control: Allows easy navigation and adjustment of camera settings for a hassle-free user experience.
  • High Resolution of 600 TV Lines: Provides detailed imagery, improving the ability to identify subjects and activities.
  • Day & Night: Equipped with features that enable operation in low-light conditions, ensuring 24/7 surveillance capability.
  • Electronic IRIS: Automatically adjusts to varying lighting situations, maintaining optimal exposure and image quality.
  • VIDEO/DC Drive Lens: Offers flexibility in lens options to suit various surveillance needs and environments.
  • DNR (Digital Noise Reduction): Reduces graininess and noise in images, enhancing overall clarity, especially in low-light settings.
  • Privacy Function: Allows users to mask specific areas of the image, ensuring confidentiality and privacy in monitored spaces.
  • Additional Functions: Includes Sens-Up, Motion Detection, Mirror, Sharpness, Sync-INT/LL for customized settings that cater to diverse surveillance applications.

Weldex WDAC-4277DT Detailed Specifications

Image Sensor1/3" Sony Super HAD CCD
Resolution600 TV Lines
IRIS ControlElectronic IRIS
Power SupplyDC
Video OutputVIDEO/DC Drive Lens compatible
Noise ReductionDNR (Digital Noise Reduction)
Operating ConditionsDay & Night functionality
Additional FeaturesSens-Up, Motion Detection, Mirror, Sharpness, Sync-INT/LL
Privacy MaskingYes
SKU  WDAC-4277DT
Features  Auto Gain Control, Automatic White Balance, Back Light Compensation
Manufacturer  Weldex
Camera Signal     Analog
Resolution    600 TVL
Sensor Option    1/3" CCD
Lens Type    Not Included
Durability    Indoor
Mount Type  Bracket Required
Voltage  12vDC, 24vAC
Electronic Shutter    NTSC : AUTO/MANUAL(1/60~1/120,000)|PAL : AUTO/MANUAL(1/50~1/120,000)
Image Device    1/3” Sony supper HAD CCD
Image Pixels TotalNTSC - 811(H) x 508(V)|PAL - 795(H) x 596(V)
Image Pixels-EffectiveNTSC - 768(H) x 494(V)|PAL - 752(H) x 582(V)
Minimum Scene Illumination  0.3Lux/F1.2(Color), 0.1Lux/F1.2(B/W), 0.002Lux(Sens-up)
Operating Humidity    30~90% RH
Operating Temperature    -10°C ~ +50°C
Privacy Zone    ON / OFF (4 Programmable Zone)
S/N Ratio  50dB (AGC Off)
Scanning Horizontal  NTSC: (H) -15.734 Khz|PAL: (H) 15.625 KHz
Scanning System    2:1 Interlace
Scanning VerticalNTSC: 59.94 Hz(V)|PAL: 50.00 Hz (V)
Signal System    NTSC|PAL
Digital Noise Reduction    OFF / LOW / MIDDLE / HIGH(Noise Reduction)
Mirror    Built-in(Horizontal Image Inversion)
Automatic White Balance    ATW/AWC/MANUAL(1,800 K~10,500 K)
Motion Detection    ON / OFF (4 Programmable Zone)
Back Light Compensation    Yes
Automatic White Balance    Yes
Auto Gain Control    Yes
