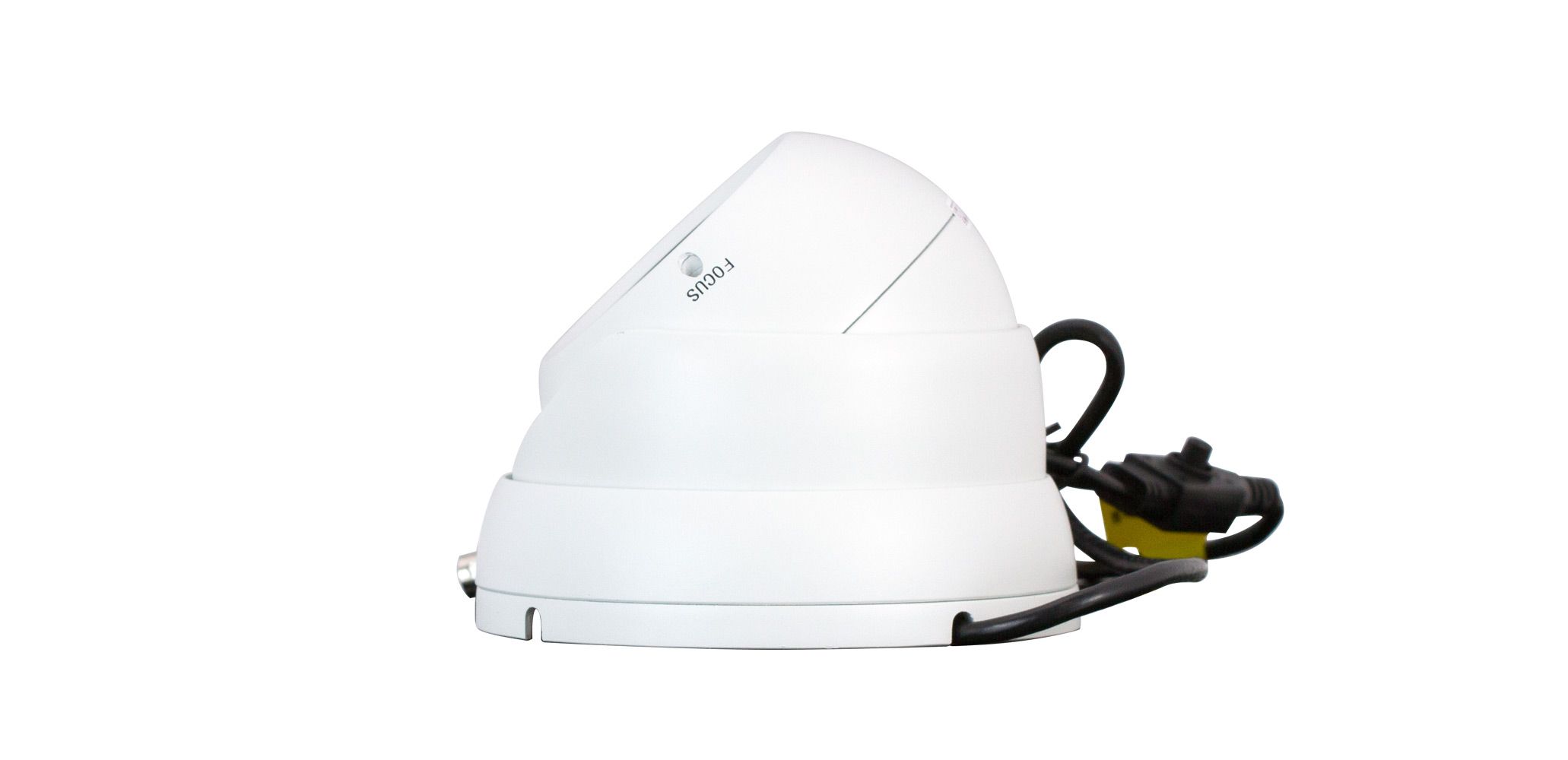

ViewZ VZ-VDC-1 1080p HD-AHD/TVI/CVI/Analog Outdoor IR Dome Camera, 2.8-12mm Lens
SKU
VZ-VDC-1
Model No
VZ-VDC-1
$78.00
Product Highlights
- Full HD 1080p over coaxial cable, BNC connection
- 1/2.8 SONY Progressive Scan CMOS Sensor
- 2.1 MP Vari-Focal 2.8 - 12 mm HD Lens
- 1920x1080p / NTSC : 30fps & PAL : 25fps
- AHD / TVI/ CVI/ CVBS (BNC)
Speak to an expert
The VZ-VDC-1 from ViewZ is a 1080p HD-AHD/TVI/CVI/Analog outdoor IR dome camera featuring a versatile 2.8-12mm lens. This high-performance camera provides stunning image clarity and reliable surveillance in various lighting conditions, making it an ideal choice for security needs.
ViewZ VZ-VDC-1 Camera Features
- Full HD 1080p over coaxial cable: Ensure crystal-clear video quality over long distances with BNC connection.
- 1/2.8” SONY Progressive Scan CMOS Sensor: Captures high-resolution images with exceptional detail for enhanced surveillance.
- 2.1 MP Vari-Focal 2.8 - 12 mm HD Lens: Flexible focal length allows for customized field of view to suit various settings.
- 1920x1080p / NTSC : 30fps & PAL : 25fps: Smooth video playback ensures detailed monitoring without frame drops.
- AHD / TVI/ CVI/ CVBS (BNC): Versatile compatibility with multiple technology standards for broader usability.
- Minimum Illumination 0.0001 Lux (F1.2): Exceptional low-light performance ensures clear images even in darkness.
- 24 IR LEDs, ATW/MWB, 3D DNR, WDR: Enhanced night vision and image processing features provide clearer images in challenging lighting.
- Aluminum Alloy Body /IP66: Weatherproof design ensures durability and functionality in outdoor environments.
- Video Transmission 300m: Effective surveillance coverage with reliable video transmission range.
ViewZ VZ-VDC-1 Detailed Camera Specifications
| Feature | Details |
| Camera Type | Outdoor IR Dome Camera |
| Resolution | 1080p HD |
| Sensor Type | 1/2.8” SONY Progressive Scan CMOS |
| Lens | 2.1 MP Vari-Focal 2.8 - 12 mm |
| Frame Rate | 30fps (NTSC), 25fps (PAL) |
| Compatibility | AHD / TVI / CVI / CVBS |
| Minimum Illumination | 0.0001 Lux (F1.2) |
| IR LEDs | 24 |
| Body Material | Aluminum Alloy |
| Ingress Protection | IP66 |
| Video Transmission Distance | 300m |
SKU  | VZ-VDC-1 |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, On Screen Display Menu, Weather Resistant, Wide Dynamic Range |
| Manufacturer | ViewZ |
Camera Signal  | Analog, HD-AHD, HD-CVI, HD-TVI |
| Resolution | 1080p |
| Sensor Option | 1/2.8" CMOS |
| Lens Type | Varifocal |
| Lens Size | 2.8-12mm |
| Infrared Distance | 101 Feet + |
| Durability | Weather Resistant |
| Mount Type | Ceiling, Wall |
| Voltage | 12vDC |
| Electronic Shutter | NTSC : 1/30sec ~ 1/10,000sec, PAL : 1/25sec ~ 1/10,000sec |
| Image Device | SONY 2.1 Megapixel 1/2.8” CMOS Sensor |
| IR Distance | 35m/114ft |
| IR Wavelength | 850nm |
| Minimum Scene Illumination | 0.0001 Lux (F1.2) |
| Operating Humidity | 0% to 85% |
| Operating Temperature | 14 - 131°F / -10°C - 55°C |
| Dimensions (W x H) | ɸ4.68” x 3.93” / ɸ119.0mm x 100.0mm |
| OSD Menu | English |
| Power Consumption | Max. 4W |
| S/N Ratio | More than 50dB (AGC Closed) |
| Scanning System | Progressive Scan |
| Signal System | NTSC/PAL |
| Video Output | 1.0 Vp-p (75Ω, Composite) / 300 m |
| Weatherproof | IP66 |
| Digital Noise Reduction | 3D - DNR |
| Angle of View | 90° ~ 35° |
| Backlight Compensation | Support |
| Automatic White Balance | ATW / MWB |
| IR LEDs | 24pcs IR LED |
| Back Light Compensation | Yes |
| Automatic White Balance | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| On Screen Display Menu | Yes |
| Wide Dynamic Range | Yes |
| Auto Gain Control | Yes |
