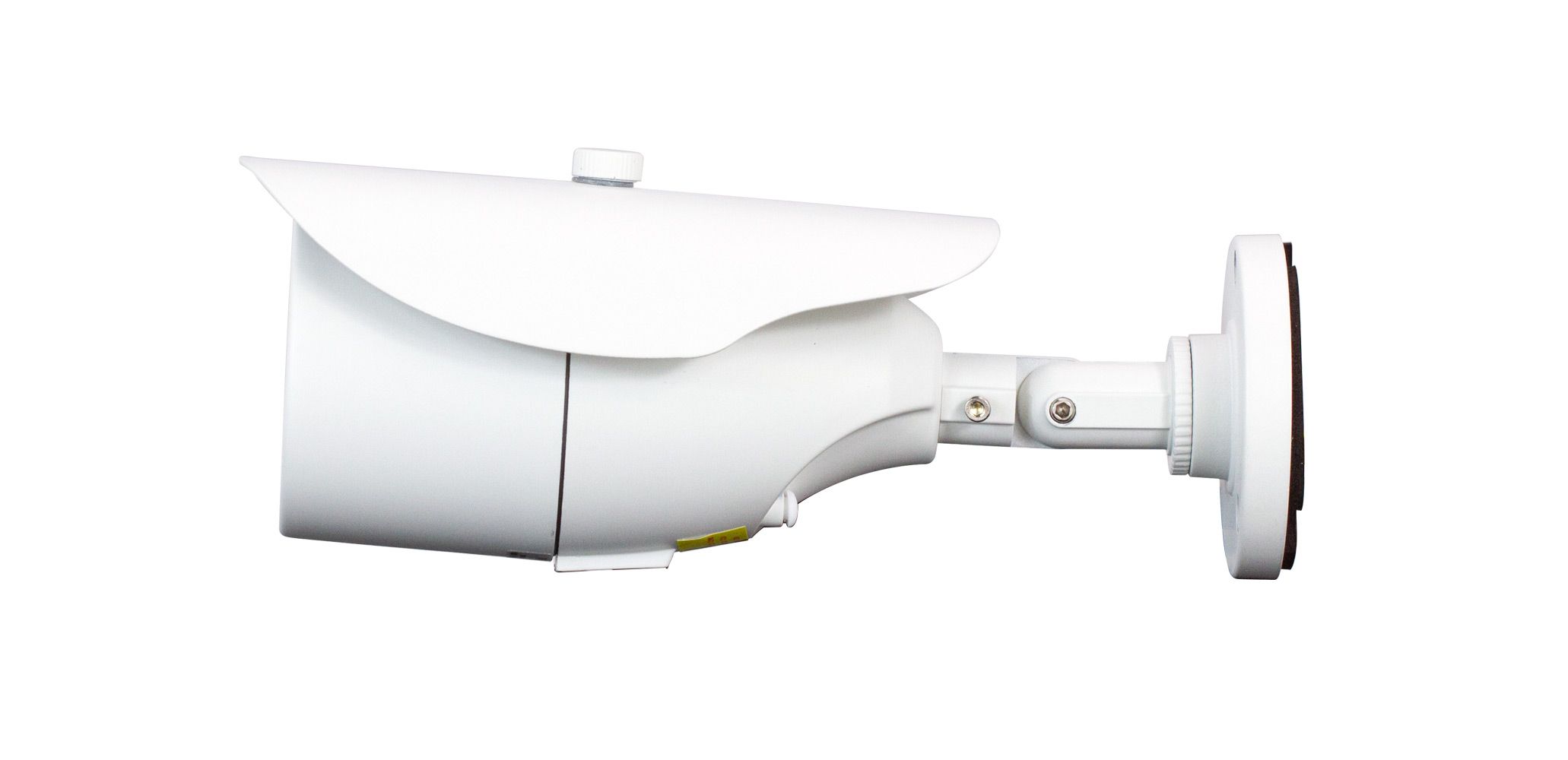

ViewZ VZ-VBC-1 1080p HD-AHD/TVI/CVI/Analog Outdoor IR Bullet Camera, 2.8-12mm Lens
SKU
VZ-VBC-1
Model No
VZ-VBC-1
$86.40
Product Highlights
- Full HD 1080p over coaxial cable, BNC connection
- 1/2.8″ SONY Progressive Scan CMOS Sensor
- 2.1 MP Vari-Focal 2.8 - 12 mm HD Lens
- 1920x1080p / NTSC : 30fps & PAL : 25fps
- 30 IR LEDs, ATW/MWB , 3D DNR, WDR
Speak to an expert
The VZ-VBC-1 from ViewZ is a 1080p HD-AHD/TVI/CVI/Analog outdoor IR bullet camera featuring a versatile 2.8-12mm lens, designed to deliver exceptional video quality and reliability in various lighting conditions for your security needs.
ViewZ VZ-VBC-1 Camera Features
- Full HD 1080p: Provides crystal-clear video resolution over coaxial cable with a BNC connection, ensuring high-quality surveillance footage.
- SONY CMOS Sensor: Utilizes a 1/2.8” SONY Progressive Scan CMOS Sensor for enhanced image clarity and low-light performance.
- Vari-Focal Lens: Equipped with a 2.1 MP 2.8 - 12 mm HD lens offering adjustable focal length to zoom in on specific areas without losing detail.
- High Frame Rate: Delivers 1920x1080p video at 30fps for NTSC and 25fps for PAL, ensuring smooth motion capture.
- IR LEDs: Features 30 IR LEDs for superior night vision, allowing for 24/7 surveillance in total darkness.
- Multiple Formats: Supports AHD, TVI, CVI, and CVBS (BNC) formats, providing flexibility and compatibility with existing systems.
- Exceptional Low Light Performance: Achieves a minimum illumination of 0.0001 Lux (F1.2), perfect for dimly lit environments.
- Durable Build: Constructed with a rugged Aluminum Alloy Body and rated IP66 for outdoor use, ensuring durability against harsh weather conditions.
- Long Video Transmission: Capable of video transmission up to 300m, allowing for flexible installation without degradation in video quality.
Detailed Camera Specifications for ViewZ VZ-VBC-1
| Model | ViewZ VZ-VBC-1 |
| Resolution | 1080p (1920x1080) |
| Sensor | 1/2.8” SONY Progressive Scan CMOS |
| Lens | 2.1 MP Vari-Focal 2.8 - 12 mm |
| Frame Rate | 30fps (NTSC), 25fps (PAL) |
| IR LEDs | 30 |
| Minimum Illumination | 0.0001 Lux (F1.2) |
| Construction | Aluminum Alloy Body, IP66 |
| Transmission Distance | 300m |
| Supported Formats | AHD / TVI/ CVI/ CVBS (BNC) |
SKU  | VZ-VBC-1 |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, On Screen Display Menu, Weather Resistant, Wide Dynamic Range |
| Manufacturer | ViewZ |
Camera Signal  | Analog, HD-AHD, HD-CVI, HD-TVI |
| Resolution | 1080p |
| Sensor Option | 1/2.8" CMOS |
| Lens Type | Varifocal |
| Lens Size | 2.8-12mm |
| Infrared Distance | 101 Feet + |
| Durability | Weather Resistant |
| Mount Type | Ceiling, Wall |
| Voltage | 12vDC |
| Electronic Shutter | NTSC : 1/30sec ~ 1/10,000sec, PAL : 1/25sec ~ 1/10,000sec |
| Image Device | SONY 2.1 Megapixel 1/2.8” CMOS Sensor |
| IR Distance | 40m/131ft |
| IR Wavelength | 850nm |
| Minimum Scene Illumination | 0.01 Lux (Color, AGC On), 0 Lux (BW, IR On) |
| Operating Humidity | 0% to 85% RH |
| Operating Temperature | 14 - 131°F / -10°C - 55°C |
| Dimensions (W x H) | ɸ3.14” x 10.93” / ɸ80mm x 277.8mm |
| OSD Menu | English |
| Power Consumption | Max. 4W |
| S/N Ratio | More than 50dB |
| Scanning System | Progressive Scan |
| Signal System | NTSC/PAL |
| Video Output | 1.0 Vp-p (75Ω, Composite) / 300 m |
| Weatherproof | IP66 |
| Digital Noise Reduction | 3D - DNR |
| Angle of View | 90° ~ 35° |
| Backlight Compensation | Support |
| Automatic White Balance | ATW / MWB |
| IR LEDs | 30pcs IR LED |
| Back Light Compensation | Yes |
| Automatic White Balance | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| On Screen Display Menu | Yes |
| Wide Dynamic Range | Yes |
| Auto Gain Control | Yes |
