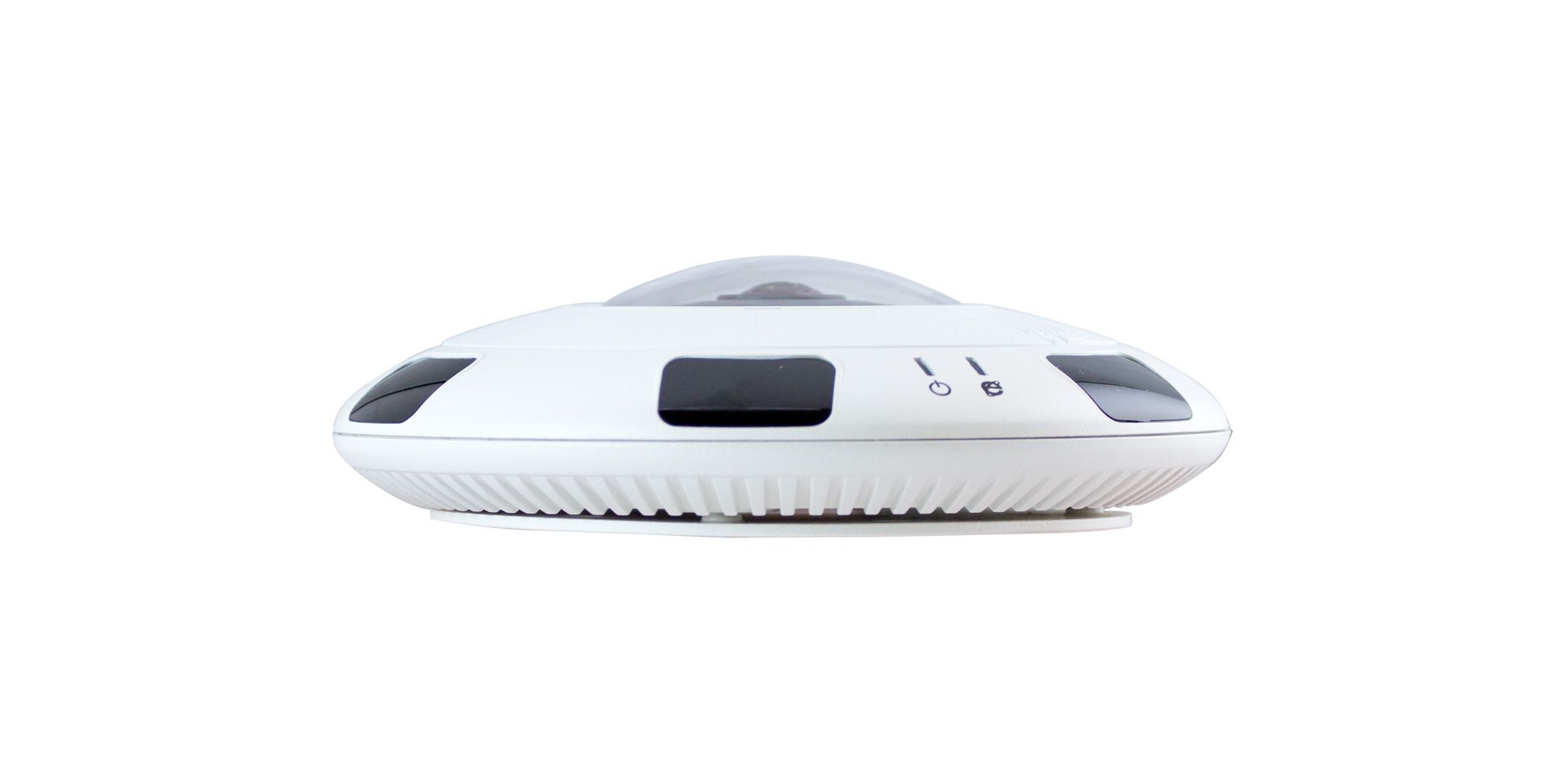

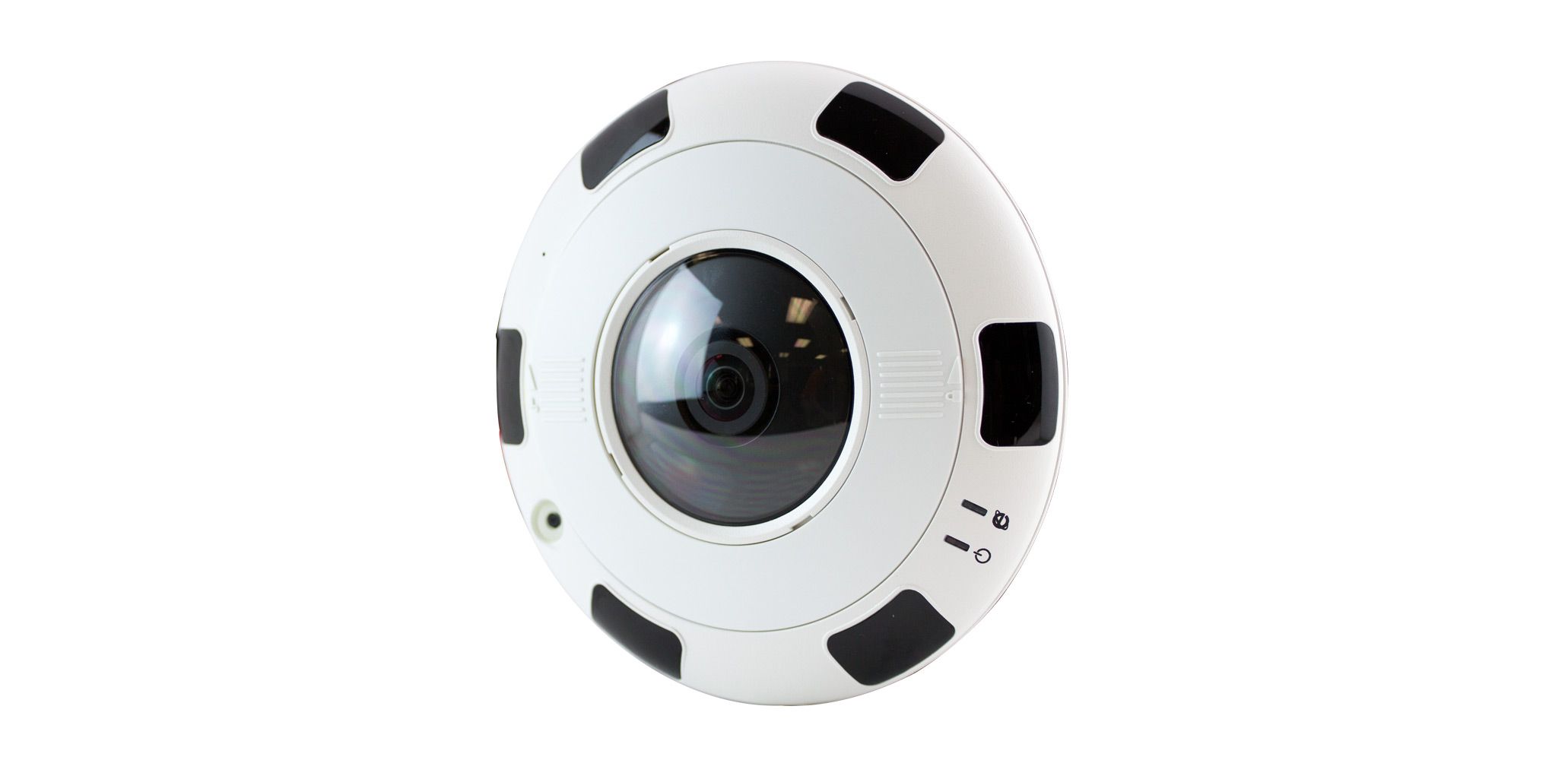

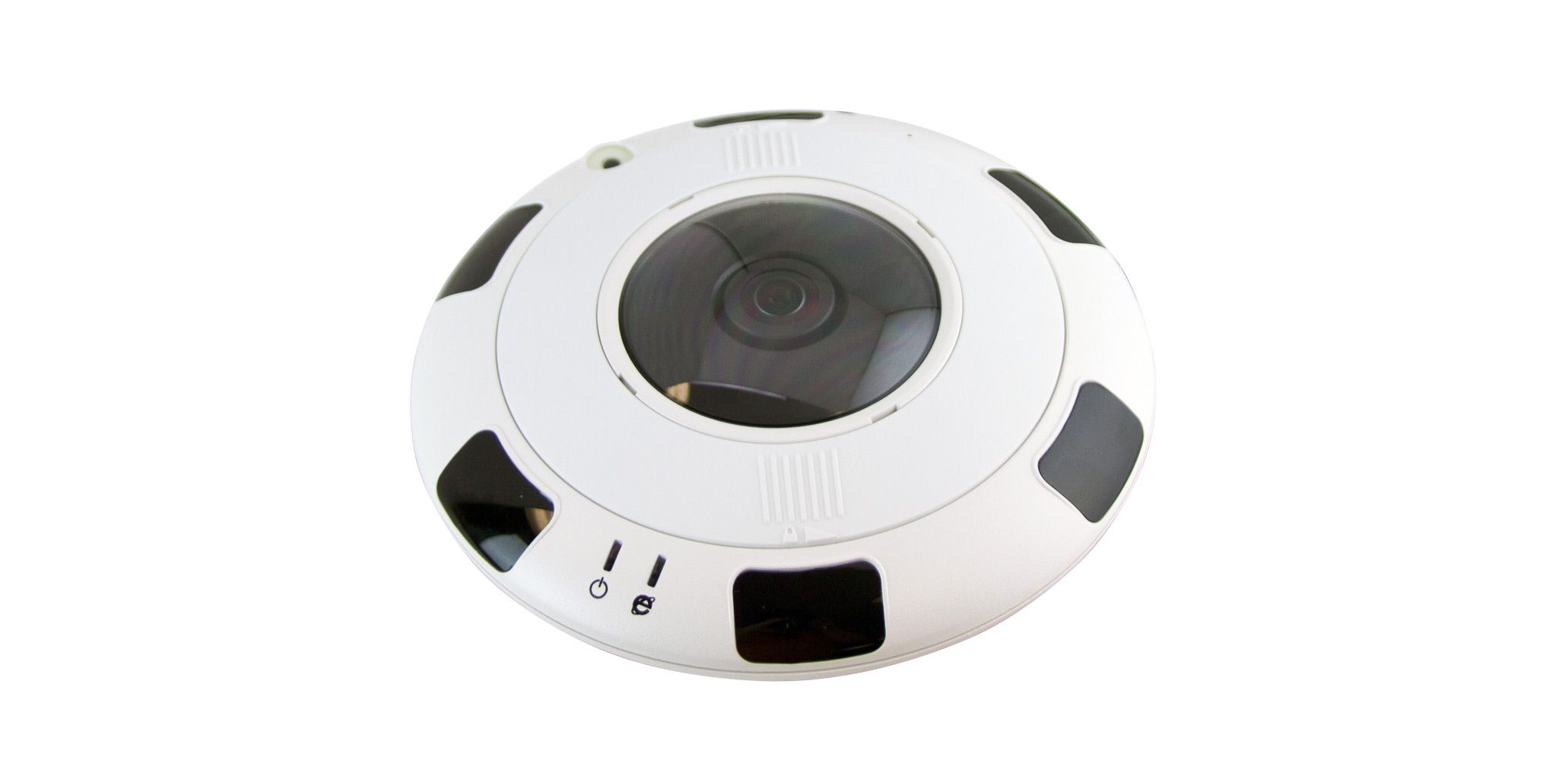

ViewZ VZ-FE-1 6 Megapixel Fisheye Network Outdoor Dome Camera, 1.6mm Lens, White

SKU
VZ-FE-1
Model No
VZ-FE-1
$450.87
Volume Discounts Volume
Discounts
Free System Design Free System
Design
Lifetime Tech Support Lifetime
Tech Support
Free Shipping Over $450* Free Shipping
Over $450*
Product Highlights
  • Onvif 2.4 Profile S Compliant
  • 1/1.8″ SONY Progressive Scan CMOS Sensor
  • 6 MP Fixed 1.6 mm HD Lens / De-warping Image (3600)
  • H.264 High/Main/Baseline Profile
  • 0.01 Lux ( Color-AGC On ), 0 Lux ( B/W - IR On )

The VZ-FE-1 from ViewZ is a 6 megapixel fisheye network outdoor dome camera, featuring a 1.6mm lens that delivers exceptional image quality and comprehensive surveillance capabilities, making it an ideal choice for both residential and commercial properties.

ViewZ VZ-FE-1 Camera Features

  • Onvif 2.4 Profile S Compliant: Ensures compatibility with a wide range of network video recorders and management software, facilitating seamless integration.
  • 1/1.8” SONY Progressive Scan CMOS Sensor: Provides high-resolution imaging with exceptional clarity in various lighting conditions.
  • 6 MP Fixed 1.6 mm HD Lens / De-warping Image (360°): Offers a broad field of view and reduces image distortion for clearer footage.
  • H.264 High/Main/Baseline Profile: Reduces bandwidth usage while maintaining high video quality, enhancing streaming performance.
  • 0.01 Lux (Color-AGC On), 0 Lux (B/W - IR On): Delivers excellent performance in low-light conditions, ensuring reliable surveillance around the clock.
  • SMART IR, AGC, ATW, DNR (2D / 3D), D-WDR, ICR, HLC, D/N: Equipped with advanced features for improved image quality in a variety of lighting scenarios.
  • No additional installation cost: Compatible with existing RJ-45 cables, simplifying installation and reducing costs.
  • Video Streaming #1: Supports multiple resolutions including 3072 x 2048 @15fps, allowing for flexible recording options.
  • Video Streaming #2: Offers additional resolutions like 1280x1280 / 720x720 for versatile video output.
  • 2D/3D - NR (Digital Noise Reduction): Minimizes noise in images for clearer and sharper video quality.
  • Built in OSD: Easy-to-use on-screen display for simple setup and adjustments.
  • AC24V / DC12V / PoE: Offers flexible power options for easy installation and integration with existing systems.

Detailed Specifications for ViewZ VZ-FE-1

Camera TypeFisheye Network Outdoor Dome
Resolution6 Megapixels
Lens1.6 mm HD Lens
Sensor1/1.8” SONY Progressive Scan CMOS
Low Light Performance0.01 Lux (Color), 0 Lux (B/W IR)
ComplianceOnvif 2.4 Profile S
Power SupplyAC24V / DC12V / PoE
DimensionsCompact Dome Design
WeightLightweight for easy installation
Video CompressionH.264 High/Main/Baseline Profile
SKU  VZ-FE-1
Features  Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Digital Zoom, Motion Detection Tracking, On Screen Display Menu, ONVIF, Privacy Masking, Wide Dynamic Range
Manufacturer  ViewZ
Camera Signal     Network IP
Connection Type  Wired
Infrared Distance    0~60 Feet
Resolution    6 Megapixel
Lens Type    Fixed
Lens Size    1.6mm
Mount Type  Ceiling, Wall
Compression Method    H.264, M-JPEG
Durability    Weather Resistant
Voltage  12vDC, 24vAC, PoE
Dimensions (W x H)  ɸ6.37” x 2.05” / ɸ161.99mm x 52.2mm
Electronic Shutter    1/5sec ~ 1/20,000sec
Image Device    1/1.8” SONY Progressive Scan CMOS Sensor
IR LEDs  6pcs IR LED
Minimum Scene Illumination  0.01 Lux (Color, AGC On), 0 Lux (BW, IR On)
Operating Humidity    0% to 90%
Operating Temperature    -22 - 140°F / -30°C - 60°C
OSD Menu    English
Power Consumption  8W - IR LED ON , 5W - IR LED OFF
Privacy Zone    On (8 Zone Selectable) / Off
Protocols  HTTP,HTTPS, TCP/IP, UDP/IP, RTSP, DHCP NTP, PPPoE, Unicast and Multicast
Scanning System    Progressive Scan
Signal System    NTSC/PAL
Weatherproof    IP66
Digital Noise Reduction    2D/3D-NR, On/Off
Angle of View    360°
IR Distance  10m/49ft
AudioYes
Auto Gain Control    Yes
Day/Night    Yes
Digital Noise Reduction    Yes
Automatic White Balance    Yes
Back Light Compensation    Yes
Motion Detection Tracking    Yes
On Screen Display Menu    Yes
Privacy Masking    Yes
Wide Dynamic Range    Yes
ONVIF  Yes
Digital ZoomYes
