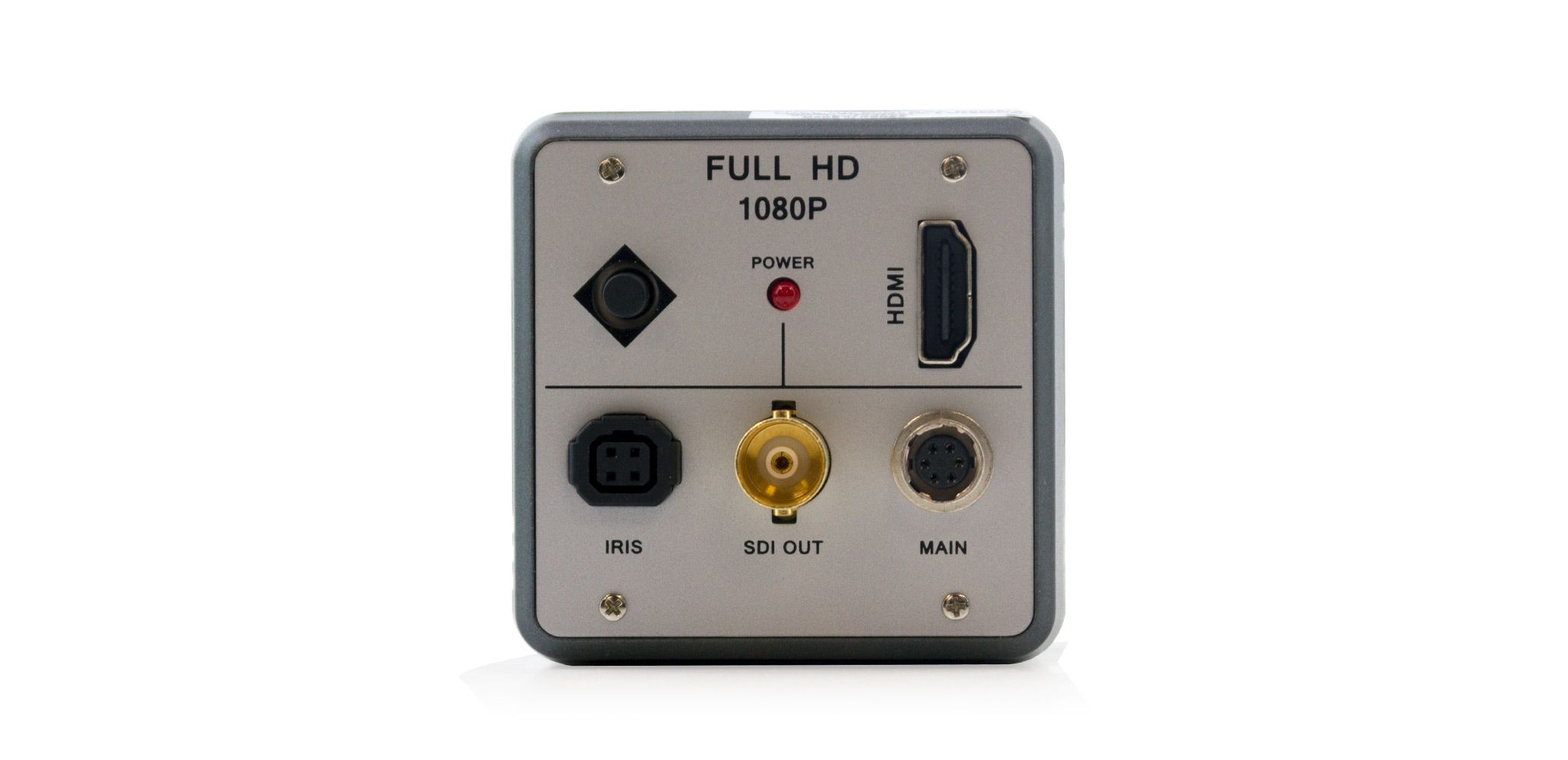

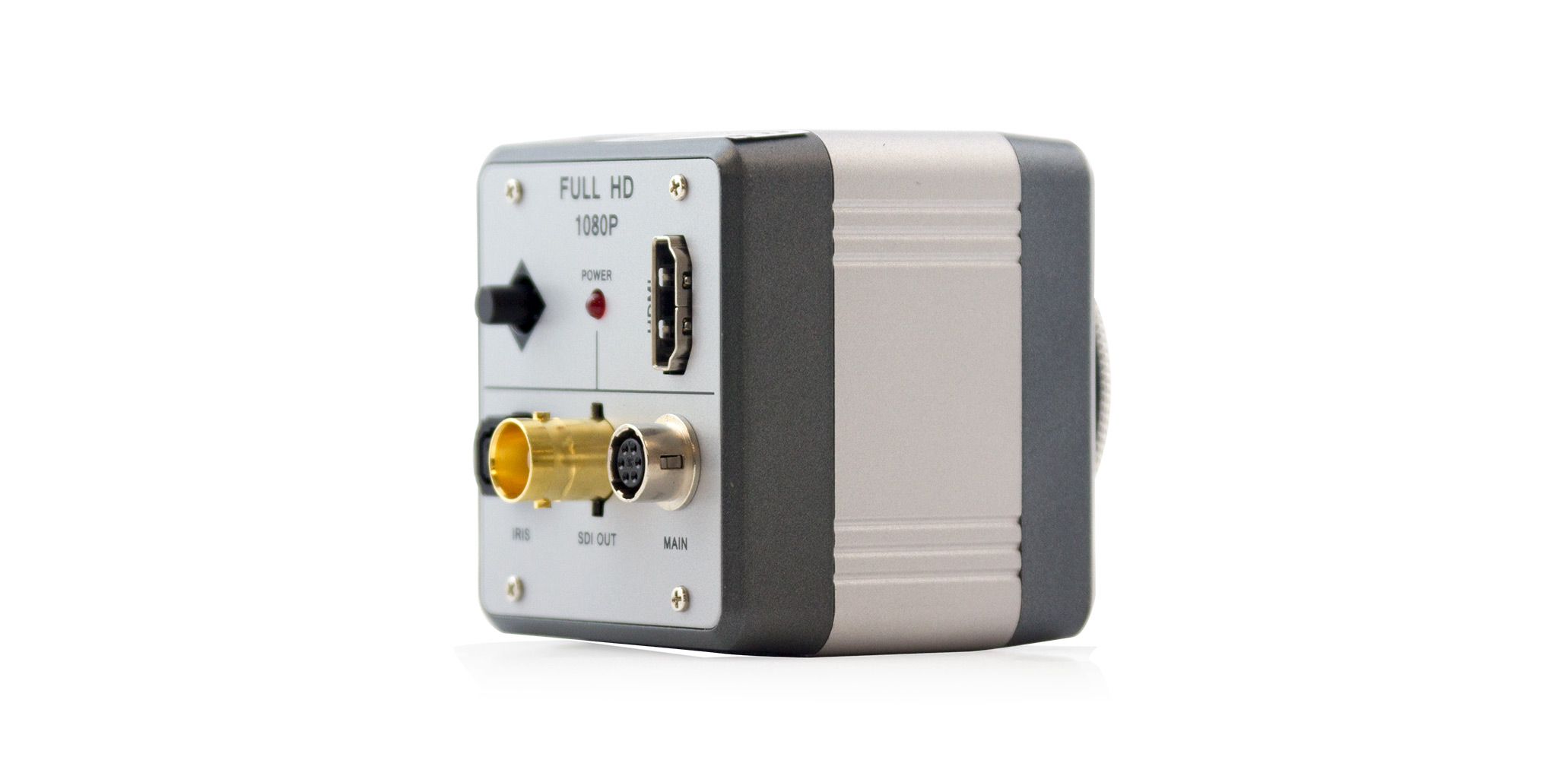

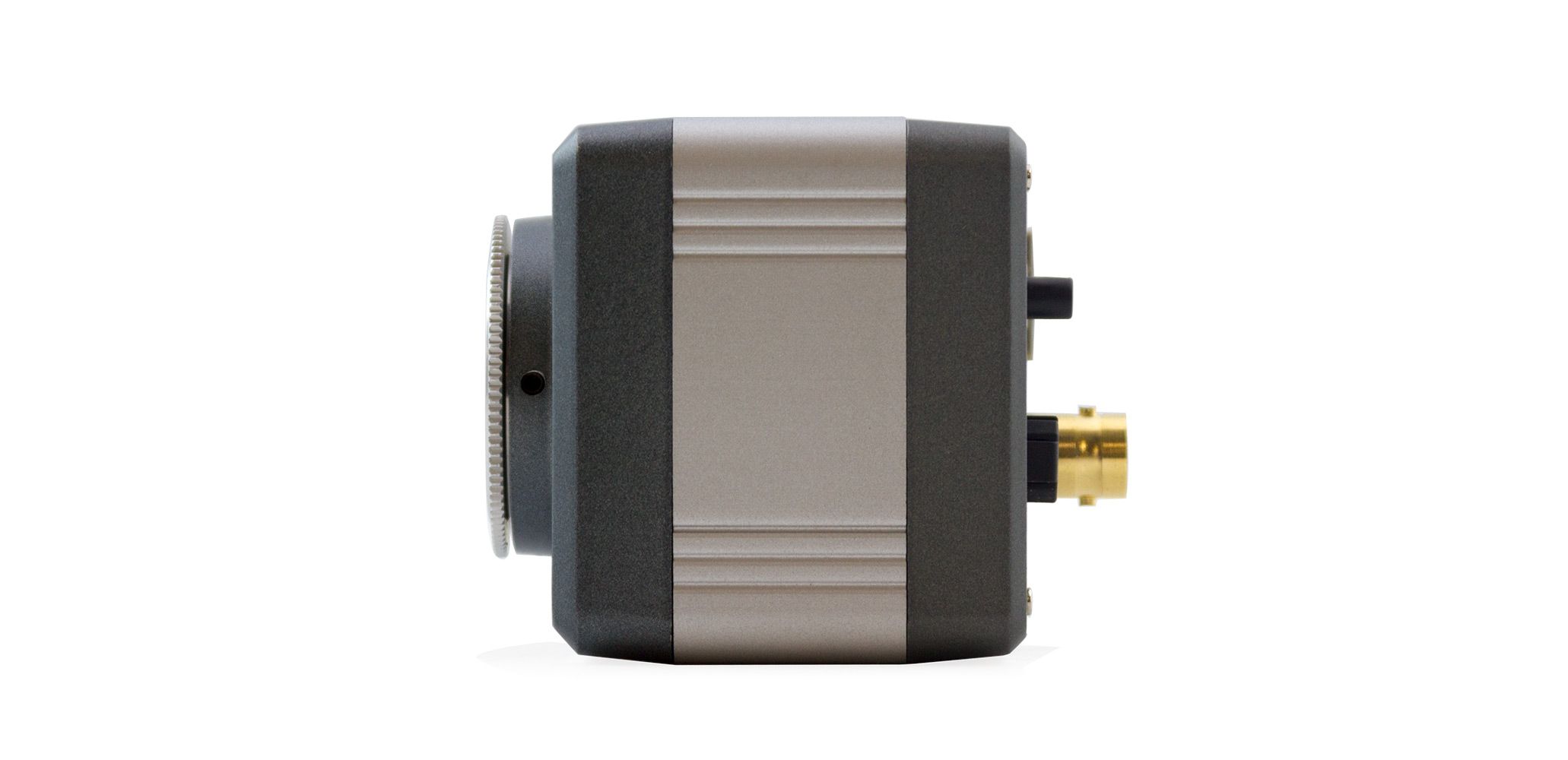

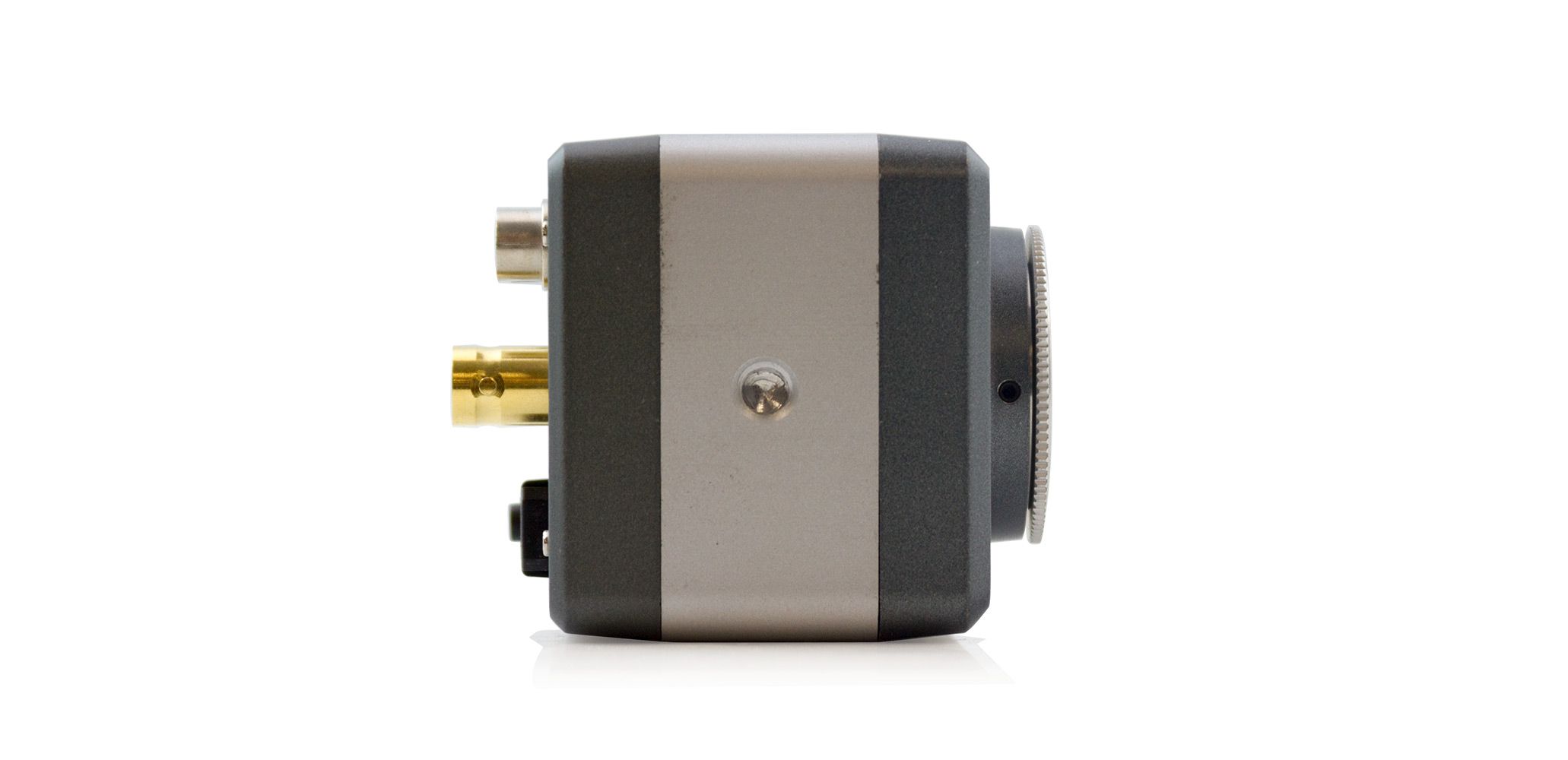

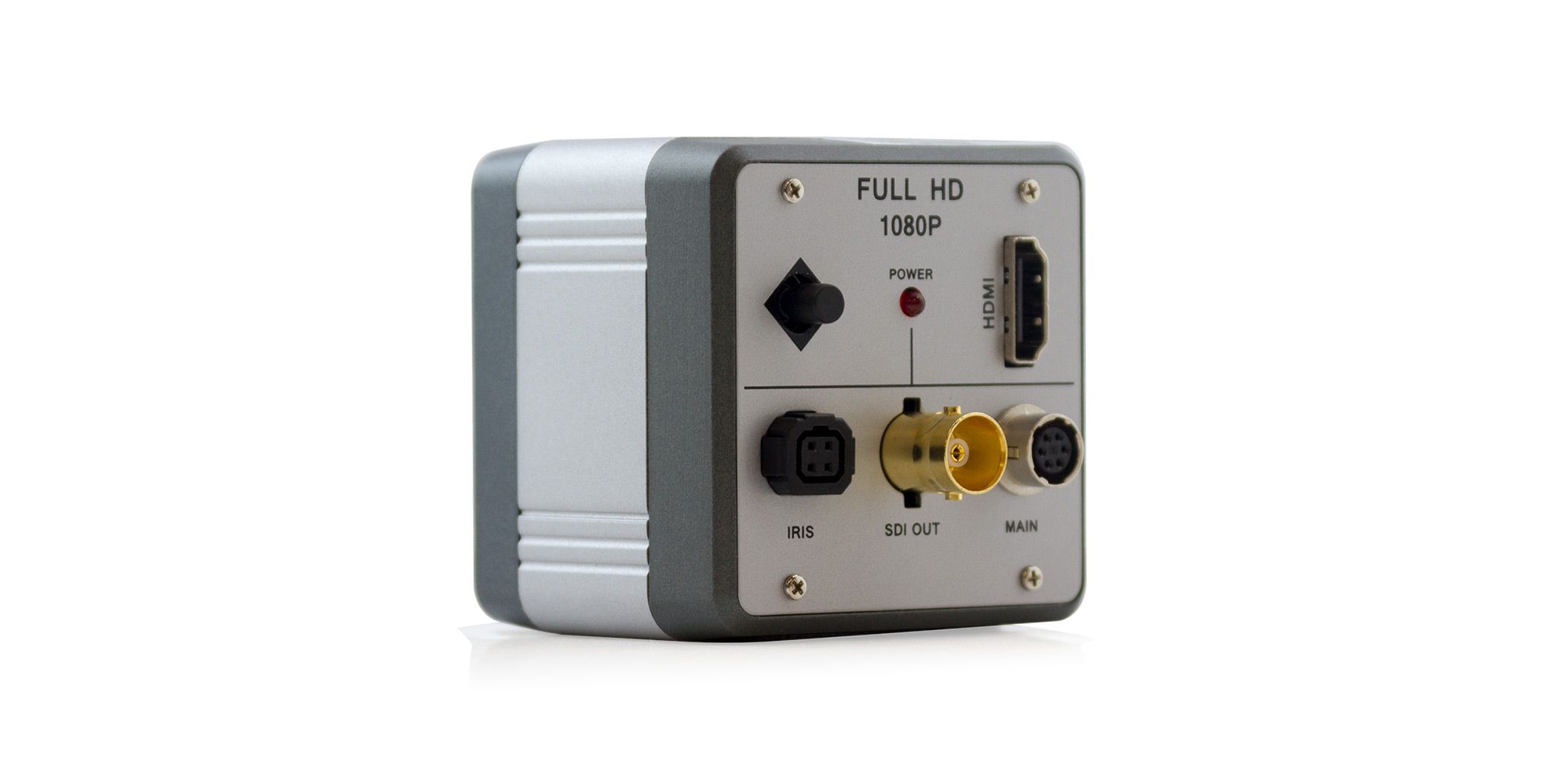

ViewZ VZ-BCHS-2 1080p Compact Full HD Mini Box Camera
SKU
VZ-BCHS-2
Model No
VZ-BCHS-2
$1,015.87
Product Highlights
- Full HD 1080p over coaxial cable, BNC connection
- 1/3″ 2.1MP Progressive Scan CMOS Sensor
- 1920x1080p / NTSC : 30fps & PAL : 25fps
- 3G/HD-SDI, HDMI, Color Bar Signal
- Minimum Illumination 0.1 Lux ( F1.2)
Speak to an expert
The VZ-BCHS-2 from ViewZ is a 1080p compact full HD mini Box camera over coaxial cable, BNC connection. This advanced camera offers exceptional image quality and versatile features, making it ideal for various surveillance and streaming applications.
ViewZ VZ-BCHS-2 Camera Features
- Full HD 1080p: Offers high-resolution video over coaxial cable, ensuring crystal-clear images for accurate monitoring.
- 1/3” 2.1MP Progressive Scan CMOS Sensor: Enhances image clarity and reduces motion blur, providing sharp and detailed visuals.
- 30fps NTSC & 25fps PAL: Smooth video performance for both formats, making it versatile for different regions and applications.
- Multiple Output Options: Supports 3G/HD-SDI and HDMI outputs, allowing flexible connectivity to various recording and display devices.
- Low Light Performance: Minimum illumination of 0.1 Lux (F1.2) enables effective monitoring even in challenging lighting conditions.
- Robust Features: Includes ATW, Shutter Speed, BLC, DNR, and WDR, providing comprehensive settings for optimal video quality.
- Smart Functionality: Privacy masking, motion detection, digital zoom, and AGC features offer additional control and customization.
- Enhanced Image Processing: Features like Gamma, Mirror, Flip, and Defog improve image adaptability to different environments.
Detailed Camera Specifications for ViewZ VZ-BCHS-2
| Model | ViewZ VZ-BCHS-2 |
| Type | Compact Mini Box Camera |
| Resolution | 1080p Full HD |
| Sensor | 1/3” 2.1MP Progressive Scan CMOS |
| Frame Rate | 30fps NTSC / 25fps PAL |
| Output | 3G/HD-SDI, HDMI |
| Minimum Illumination | 0.1 Lux (F1.2) |
| Dimensions | Compact design for easy installation |
| Additional Features | Multiple image enhancement settings including WDR, DNR, and digital zoom |
SKU  | VZ-BCHS-2 |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Digital Noise Reduction, Digital Zoom, Mirror, Motion Detection Tracking, On Screen Display Menu, Privacy Masking, Wide Dynamic Range |
| Manufacturer | ViewZ |
Camera Signal  | HD-SDI |
| Resolution | 1080p |
| Sensor Option | 1/3" CMOS |
| Lens Type | Not Included |
| Infrared Distance | Non Infrared |
| Mount Type | Bracket Required |
| Electronic Shutter | AUTO / MANUAL ( 1/30sec ~ 1/30,000sec ) |
| Image Device | 1/3” 2.1MP Progressive Scan CMOS Sensor |
| Minimum Scene Illumination | 0.1Lux (F1.2, 50 IRE, AGC MAX) / DSS X4: 0.01 Lux |
| Operating Humidity | 0% to 90% Non-condensing |
| Operating Temperature | 14 - 131°F / -10°C - 55°C |
| Dimensions (W x H) | 2.32” x 2.32” x 4.02” (58.93 mm x 58.93 mm x 102.1 mm) |
| OSD Menu | English (Selectable) |
| Power Consumption | 4.8 W |
| Privacy Zone | Support |
| S/N Ratio | More than 50dB (AGC Off) |
| Scanning System | Progressive Scan |
| Digital Noise Reduction | DNR (Off / Low / Middle / High) |
| Mirror | MIRROR, FLIP (Off / On) |
| Backlight Compensation | BLC (Off / On) |
| Automatic White Balance | AUTO / Pushing / Manual (3000K, 5000K, 8000K, R-Gain, B-Gain) |
| Auto Gain Control | Adjustable 0 - 10 |
| Motion Detection | Support |
| Back Light Compensation | Yes |
| Automatic White Balance | Yes |
| Digital Noise Reduction | Yes |
| Mirror | Yes |
| On Screen Display Menu | Yes |
| Wide Dynamic Range | Yes |
| Privacy Masking | Yes |
| Auto Gain Control | Yes |
| Motion Detection Tracking | Yes |
| Digital Zoom | Yes |
