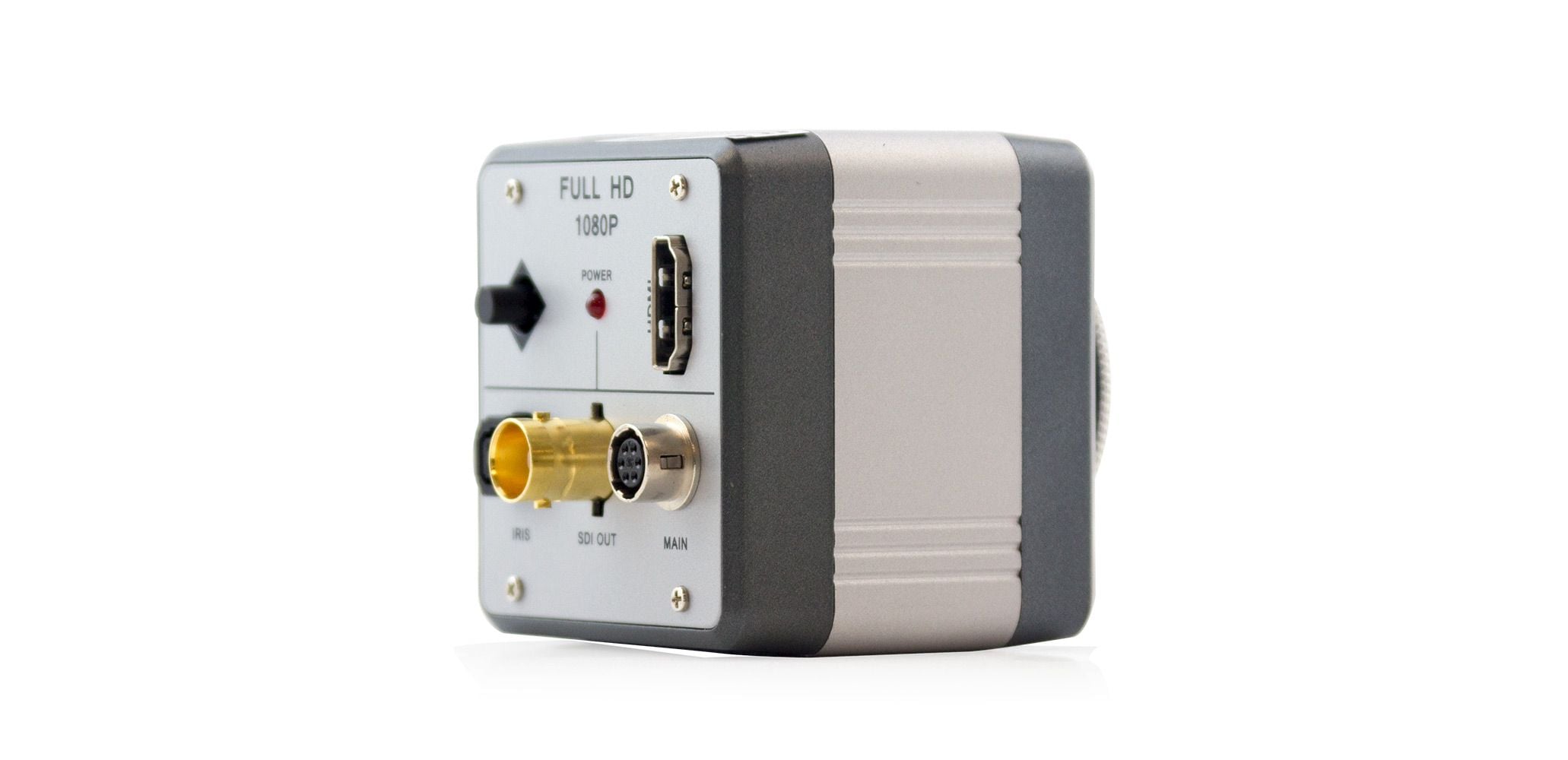

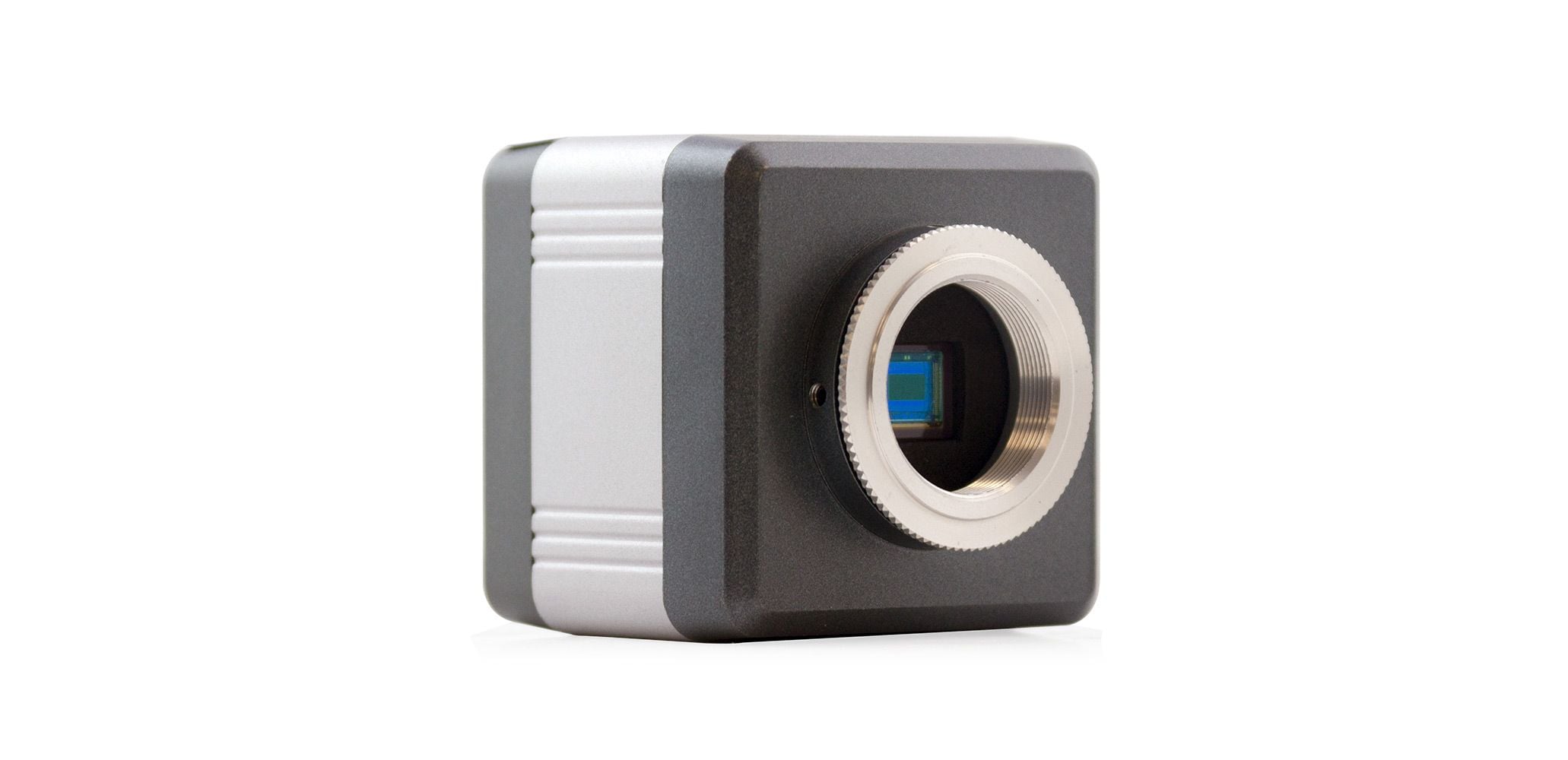

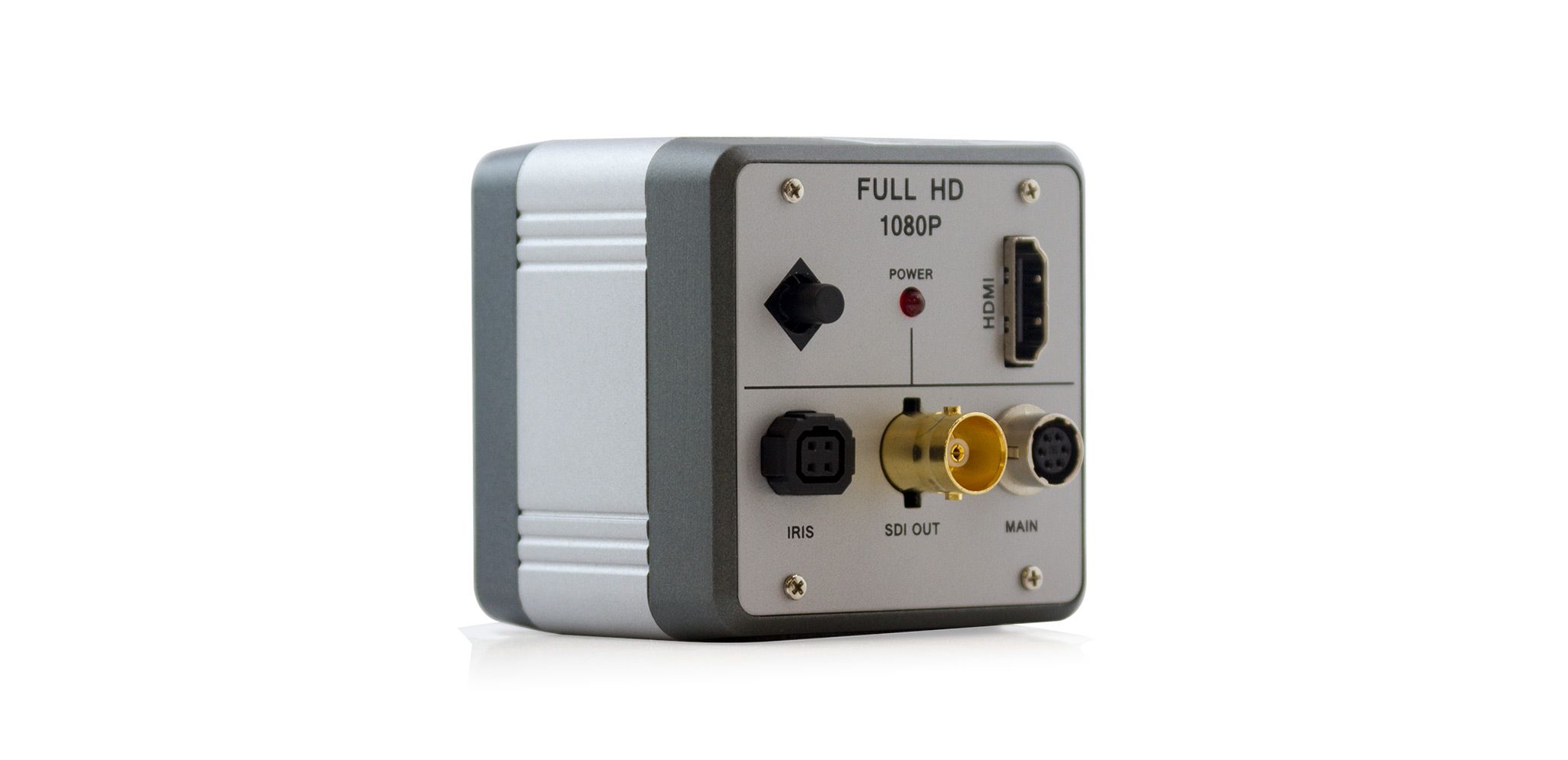

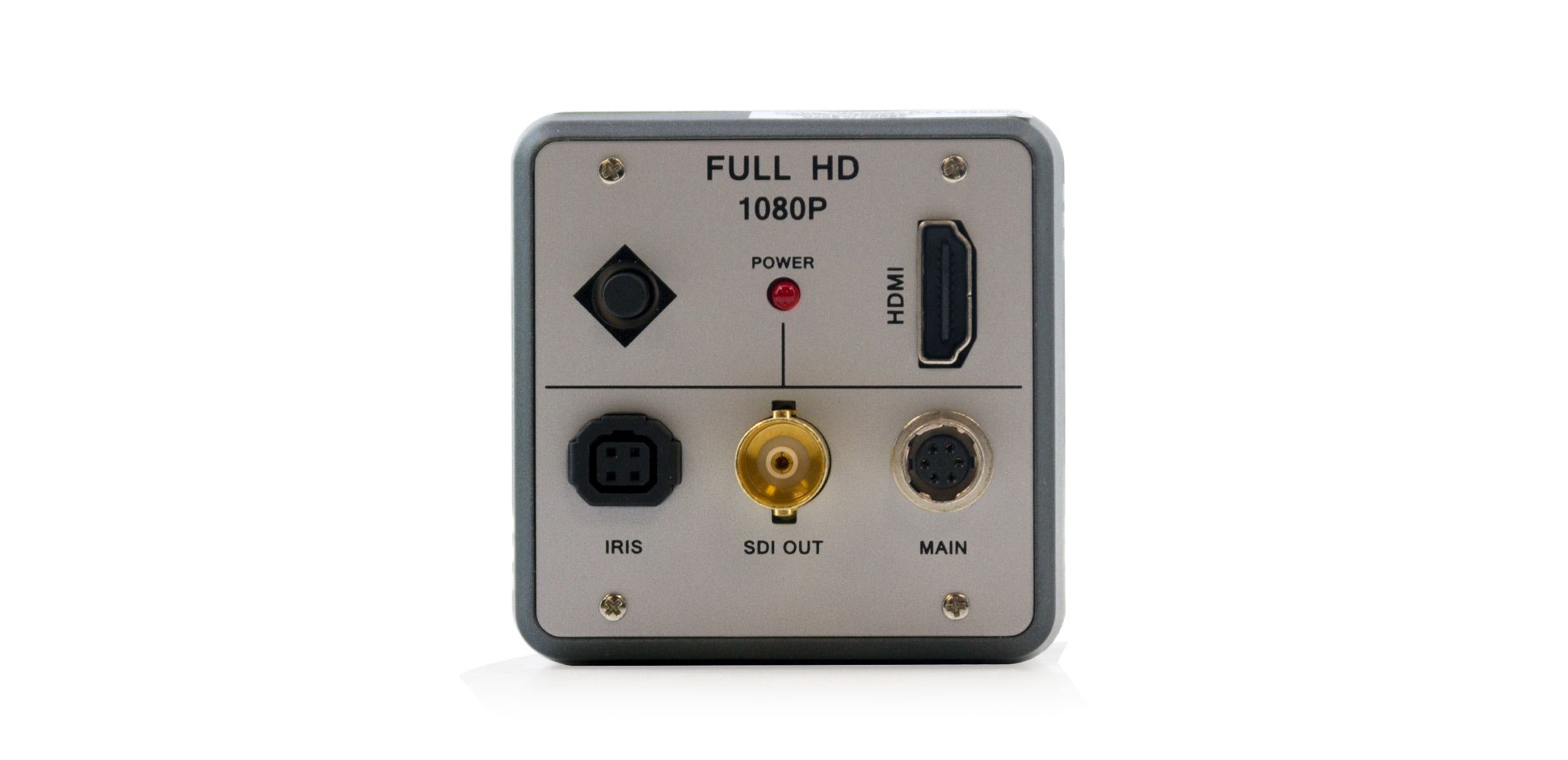

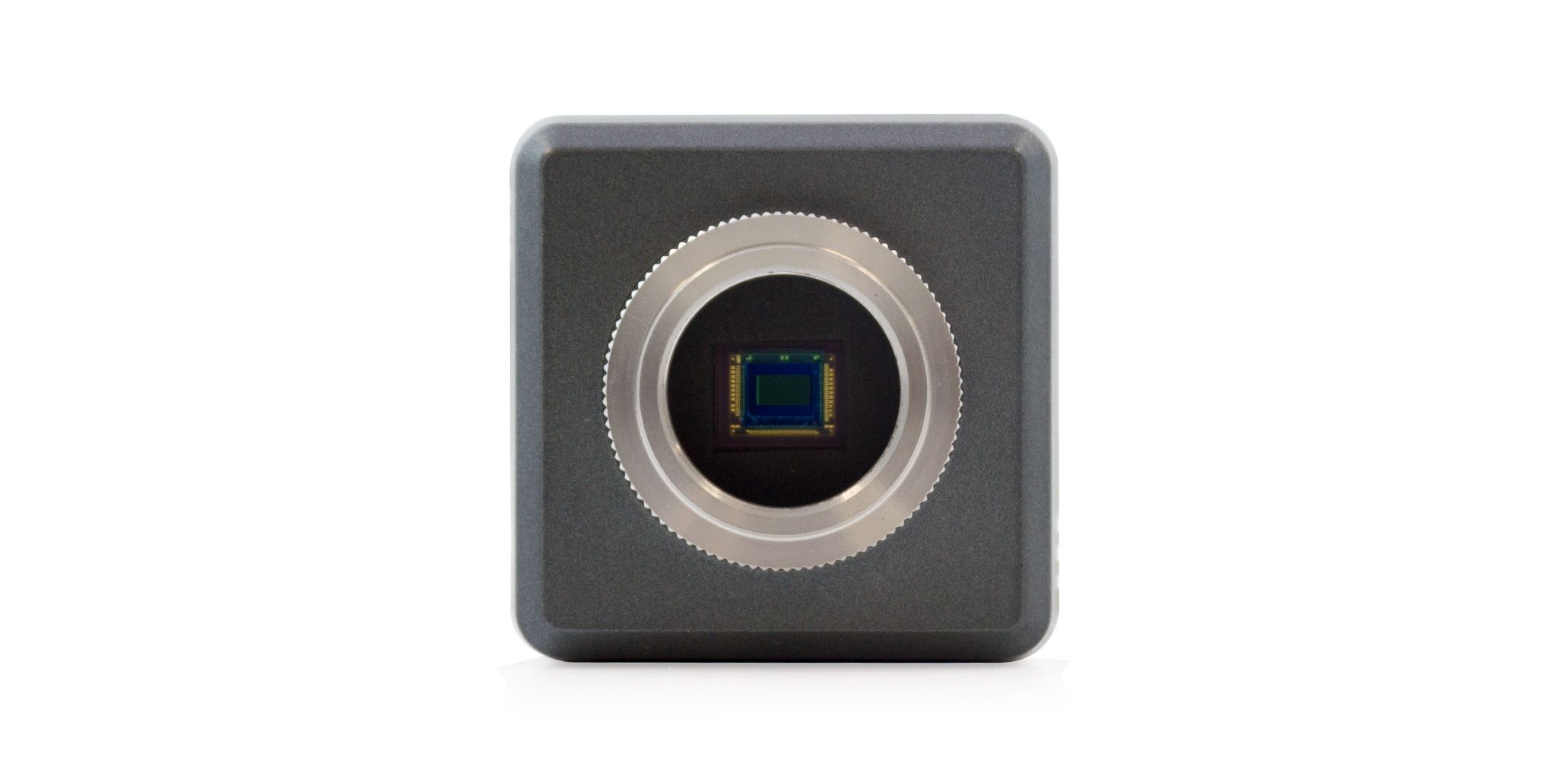

ViewZ VZ-BCHS-1 1080p Compact Full HD Mini Box Camera
SKU
VZ-BCHS-1
Model No
VZ-BCHS-1
$892.70
Product Highlights
- Full HD 1080p over coaxial cable, BNC connection
- 1/3″ 2.1MP Progressive Scan CMOS Sensor
- 1920x1080p / NTSC : 30fps & PAL : 25fps
- 3G/HD-SDI, HDMI, Color Bar Signal
- Minimum Illumination 0.1 Lux ( F1.2)
Speak to an expert
The VZ-BCHS-1 from ViewZ is a 1080p compact full HD mini Box camera over coaxial cable, BNC connection. It delivers exceptional image quality and versatility, making it perfect for a wide range of surveillance applications.
ViewZ VZ-BCHS-1 Camera Features
- Full HD 1080p: Experience crystal-clear video quality over coaxial cable with a BNC connection.
- 1/3” 2.1MP CMOS Sensor: High-performance sensor provides superior image clarity in various lighting conditions.
- 30fps (NTSC) and 25fps (PAL): Smooth video playback ensures critical details are captured without distortion.
- Multiple Output Formats: Includes 3G/HD-SDI and HDMI, allowing for flexible integration with existing systems.
- Minimum Illumination 0.1 Lux: Effective low-light performance enables monitoring in dimly lit environments.
- Advanced Features: Functions like ATW, Shutter Speed control, BLC, DNR, and WDR optimize image capture in diverse conditions.
- Security Features: Privacy masking, motion detection, digital zoom, and AGC add layers of functionality for enhanced surveillance.
- Additional Configurations: Gamma adjustment, mirror/flip options, and defogging features provide excellent customization for various scenarios.
ViewZ VZ-BCHS-1 Detailed Specifications
| Feature | Details |
| Camera Type | Mini Box Camera |
| Resolution | 1920x1080p |
| Sensor Type | 1/3” 2.1MP Progressive Scan CMOS |
| Frame Rate | 30fps (NTSC) / 25fps (PAL) |
| Illumination | Minimum 0.1 Lux (F1.2) |
| Video Outputs | 3G/HD-SDI, HDMI |
| Special Features | ATW, Shutter Speed, BLC, DNR, WDR, Digital Zoom |
| Security Features | Privacy Masking, Motion Detection, AGC |
SKU  | VZ-BCHS-1 |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Digital Noise Reduction, Digital Zoom, Mirror, Motion Detection Tracking, On Screen Display Menu, Privacy Masking, Wide Dynamic Range |
| Manufacturer | ViewZ |
Camera Signal  | HD-SDI |
| Resolution | 1080p |
| Sensor Option | 1/3" CMOS |
| Lens Type | Not Included |
| Infrared Distance | Non Infrared |
| Mount Type | Bracket Required |
| Electronic Shutter | AUTO / MANUAL ( 1/30sec ~ 1/30,000sec ) |
| Image Device | 1/3” 2.1MP Progressive Scan CMOS Sensor |
| Minimum Scene Illumination | 0.1Lux (F1.2, 50 IRE, AGC MAX) / DSS X4: 0.01 Lux |
| Operating Humidity | 0% to 90% Non-condensing |
| Operating Temperature | 14 - 131°F / -10°C - 55°C |
| Dimensions (W x H) | 2.32” x 2.32” x 4.02” (58.93 mm x 58.93 mm x 102.1 mm) |
| OSD Menu | English (Selectable) |
| Power Consumption | 4.8 W |
| Privacy Zone | Support |
| S/N Ratio | More than 50dB (AGC Off) |
| Scanning System | Progressive Scan |
| Digital Noise Reduction | DNR (Off / Low / Middle / High) |
| Mirror | MIRROR, FLIP (Off / On) |
| Backlight Compensation | BLC (Off / On) |
| Automatic White Balance | AUTO / Pushing / Manual (3000K, 5000K, 8000K, R-Gain, B-Gain) |
| Auto Gain Control | Adjustable 0 - 10 |
| Motion Detection | Support |
| Back Light Compensation | Yes |
| Automatic White Balance | Yes |
| Digital Noise Reduction | Yes |
| Mirror | Yes |
| On Screen Display Menu | Yes |
| Wide Dynamic Range | Yes |
| Privacy Masking | Yes |
| Auto Gain Control | Yes |
| Motion Detection Tracking | Yes |
| Digital Zoom | Yes |
