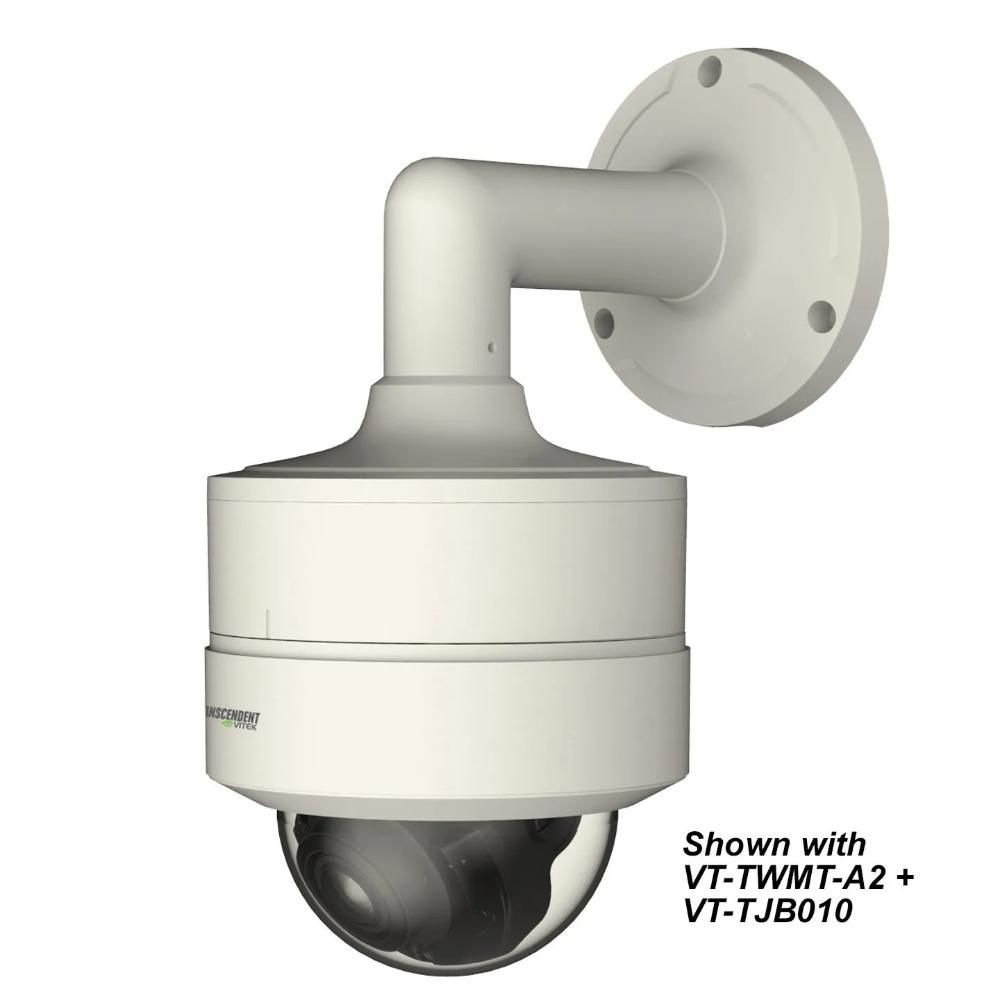

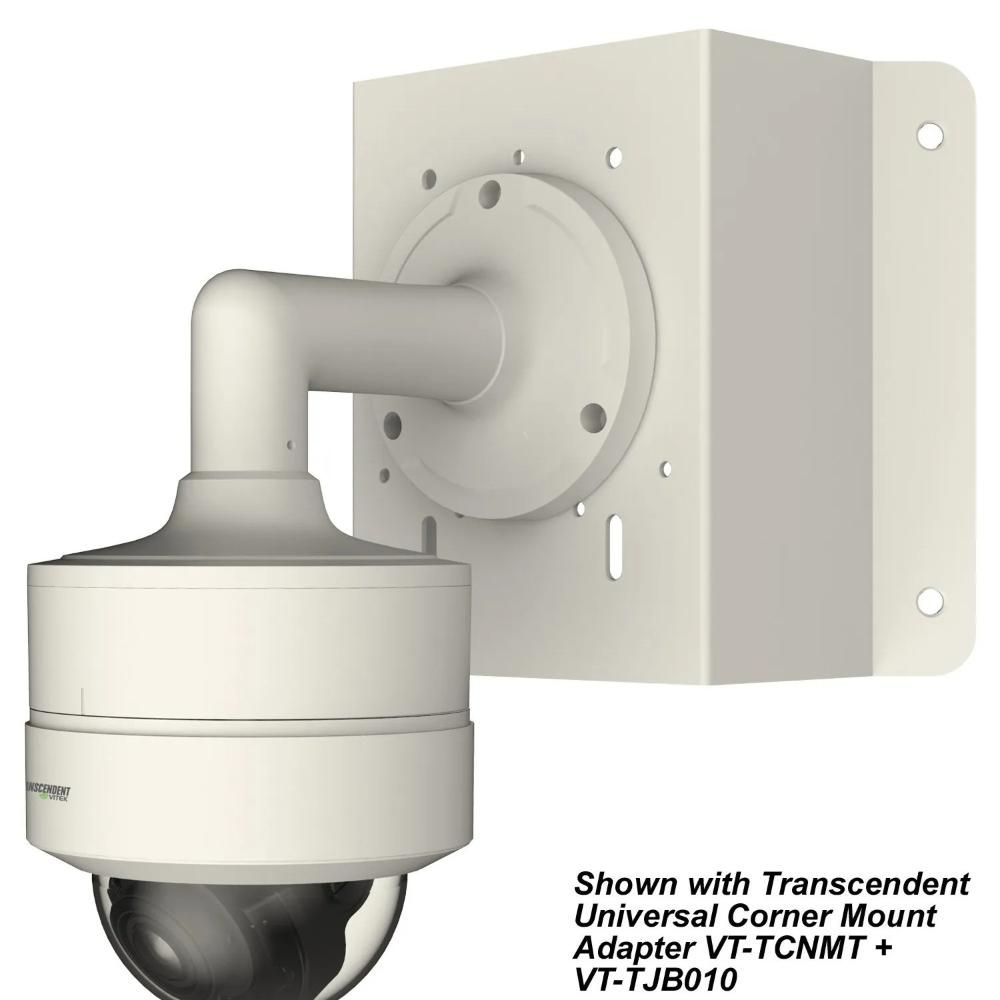

Vitek VTD-TND8MEA 8 Megapixel Network IP Outdoor IR Dome Camera with 2.8-12mm Lens
SKU
VTD-TND8MEA
Model No
VTD-TND8MEA
$334.80
Product Highlights
- 1/2.8” 8.0 MegaPixel CMOS Image Sensor
- Up to 20fps@8MP (3840 × 2160), Up to 30fps @ 6MP and Lower
- 2.8~12mm Motorized Varifocal Lens
- Matrix IR (up to 165’ IR Range)
- True Wide Dynamic Range (120dB)
Speak to an expert
The Vitek VTD-TND8MEA 8 Megapixel Network IP Outdoor IR Dome Camera offers exceptional surveillance capabilities with its high-resolution imaging and advanced features designed for reliable outdoor performance. Equipped with a varifocal lens and impressive IR range, this camera ensures clear visibility even in low-light conditions, making it an ideal choice for comprehensive security monitoring.
Vitek VTD-TND8MEA Camera Features
- 8.0 MegaPixel CMOS Image Sensor: Delivers stunning 3840 × 2160 resolution for crystal-clear image quality, ensuring every detail is captured.
- High Frame Rate: Supports up to 20fps at 8MP and up to 30fps at lower resolutions, providing smooth video playback for dynamic scenes.
- Varifocal Lens: The motorized 2.8~12mm lens allows for flexible focal length adjustments, offering versatile viewing options suited for various environments.
- Impressive IR Range: Features Matrix IR technology with an up to 165-foot range, enabling effective night-time surveillance without compromising visibility.
- True Wide Dynamic Range: With a 120dB capability, it ensures clear images in scenes with varying lighting conditions, enhancing overall footage quality.
Detailed Camera Specifications
| Image Sensor | 1/2.8” 8.0 MegaPixel CMOS |
| Resolution | Up to 3840 × 2160 (8MP) |
| Frame Rate | Up to 20fps@8MP; Up to 30fps@6MP and lower |
| Lens Type | 2.8~12mm Motorized Varifocal Lens |
| IR Range | Up to 165 feet with Matrix IR technology |
| Wide Dynamic Range | 120dB True Wide Dynamic Range |
SKU  | VTD-TND8MEA |
|---|---|
| Features | Audio, Auto Gain Control, Back Light Compensation, Day/Night, Digital Noise Reduction, Motion Detection Tracking, ONVIF, Vandal Resistant, Weather Resistant, Wide Dynamic Range |
| Manufacturer | Vitek |
| NDAA | Compliant |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | 101 Feet + |
| Resolution | 8 Megapixel |
| Lens Type | Varifocal |
| Lens Size | 2.8-12mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, M-JPEG, H.265, H.264+, H.265+ |
| Durability | Vandal Resistant, Weather Resistant |
| Voltage | 12vDC, PoE |
| Dimensions (W x H) | 5.55” × 3.95” (141 × 100mm) |
| Electronic Shutter | 1/3s ~ 1/100000s |
| Image Device | 1/2.8” 8.0 MegaPixel CMOS |
| Minimum Scene Illumination | 0.02 lux @F1.6, AGC ON; 0 lux with illumination on |
| Operating Humidity | 95% (non-condensing) |
| Operating Temperature | -22°F~140°F (-30°C~60°C), |
| Power Consumption | ≤12W |
| Protocols | UDP, IPv4, IPv6, DHCP, NTP, RTSP, RTP, RTCP, RTMP, PPPoE, DDNS, SMTP, FTP, 802.1x, SNMP, UPnP, HTTP, HTTPS, HTTP POST, P2P, QoS |
| Weatherproof | IP67 |
| Angle of View | Horizontal: 97.3°~34°, Vertical: 52.3°~17.7°, Diagonal: 116°~37° |
| Rotation Angle | 0°~345° |
| IR Distance | 50m/165ft |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Back Light Compensation | Yes |
| Motion Detection Tracking | Yes |
| Wide Dynamic Range | Yes |
| ONVIF | Yes |
