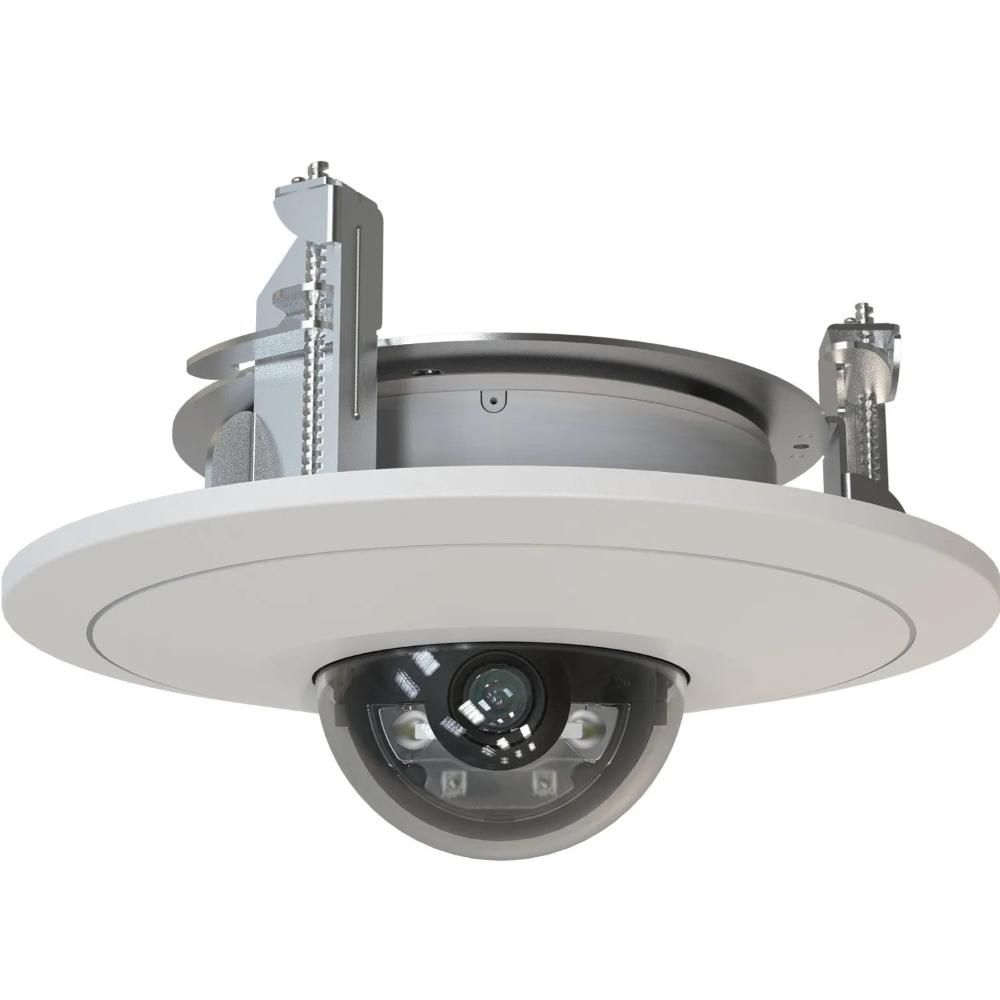

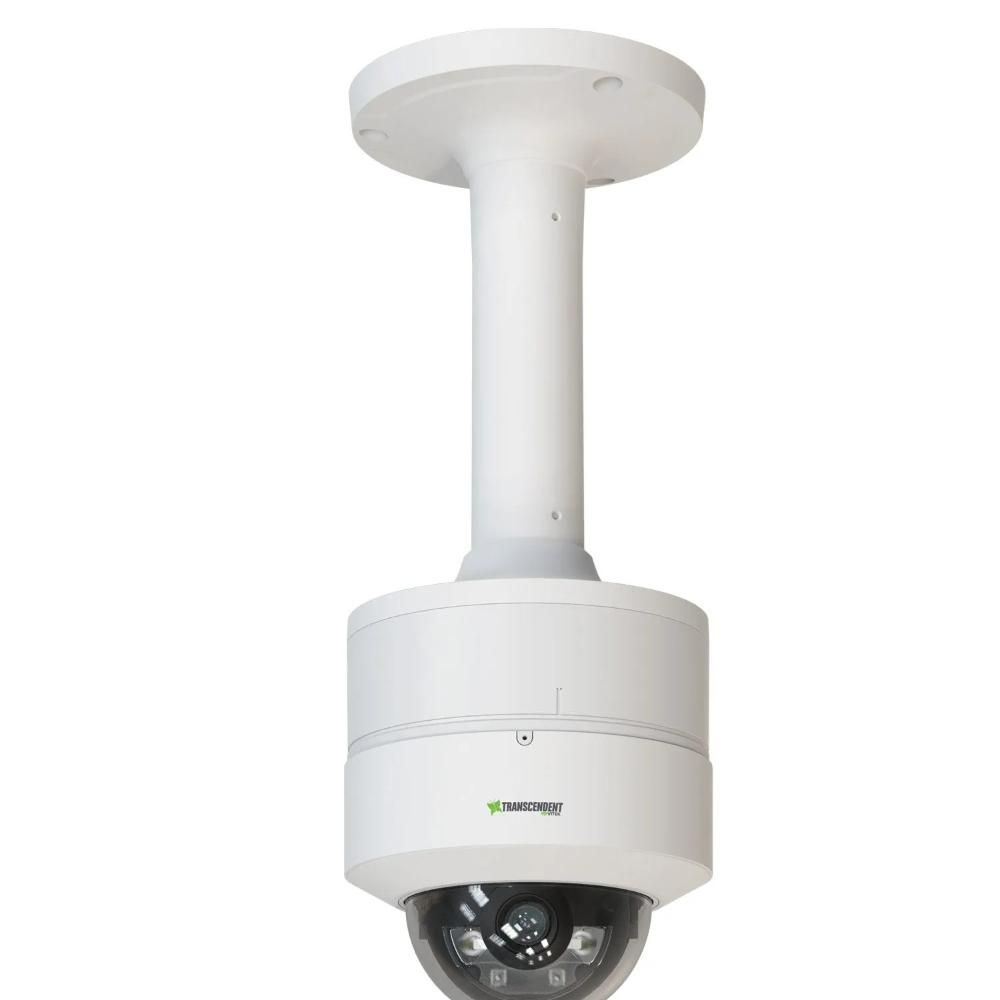

Vitek VTD-TND4FEA-2 4 Megapixel Network IP Outdoor IR Dome Camera with 2.8mm Lens
SKU
VTD-TND4FEA-2
Model No
VTD-TND4FEA-2
$147.00
Product Highlights
- 1/3” 4.0 MegaPixel CMOS Image Sensor
- Up to 30fps@4MP (2560×1440)
- 2.8mm Fixed Iris Lens
- Dual illumination with Matrix IR and Knight Guard white light (up to 100’ Range)
- True Wide Dynamic Range (120dB)
Speak to an expert
The Vitek VTD-TND4FEA-2 4 Megapixel Network IP Outdoor IR Dome Camera is designed to deliver exceptional image quality and reliable performance, ensuring that your surveillance needs are met with clarity and detail. Featuring advanced imaging technology and versatile installation options, this camera is perfect for both residential and commercial environments.
Vitek VTD-TND4FEA-2 Camera Features
- High Resolution: 1/3” 4.0 MegaPixel CMOS Image Sensor provides crystal-clear images, allowing you to capture every detail.
- Impressive Frame Rate: Up to 30fps at 4MP (2560×1440) ensures smooth video playback, which is essential for monitoring fast-moving objects.
- Wide Angle Lens: 2.8mm Fixed Iris Lens offers a broad field of view, reducing the number of cameras needed to cover large areas.
- Dual Illumination Technology: Matrix IR and Knight Guard white light with an impressive range of up to 100 feet, enabling 24/7 monitoring even in low-light conditions.
- Advanced Image Processing: True Wide Dynamic Range (120dB) helps to balance lighting conditions, ensuring visibility in challenging environments.
Vitek VTD-TND4FEA-2 Detailed Specifications
| Camera Type | Outdoor IR Dome Camera |
| Image Sensor | 1/3” 4.0 MegaPixel CMOS |
| Max Resolution | 2560×1440 |
| Frame Rate | Up to 30fps |
| Lens | 2.8mm Fixed Iris |
| IR Range | Up to 100 feet |
| Dynamic Range | True Wide Dynamic Range (120dB) |
SKU  | VTD-TND4FEA-2 |
|---|---|
| Features | Audio, Auto Gain Control, Back Light Compensation, Day/Night, Digital Noise Reduction, Motion Detection Tracking, ONVIF, Vandal Resistant, Weather Resistant, Wide Dynamic Range |
| Manufacturer | Vitek |
| NDAA | Compliant |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | 61~100 Feet |
| Resolution | 4 Megapixel |
| Lens Type | Fixed |
| Lens Size | 2.8mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, M-JPEG, H.265, H.264+, H.265+ |
| Durability | Vandal Resistant, Weather Resistant |
| Voltage | 12vDC, PoE |
| Dimensions (W x H) | Ø4.69 × 3.44” (119 × 87.4mm) |
| Electronic Shutter | 1/1s ~ 1/100000s |
| Image Device | 1/3” CMOS |
| Minimum Scene Illumination | 0.005 lux @F1.6, AGC ON; 0 lux with illumination on |
| Operating Humidity | 95% (non-condensing) |
| Operating Temperature | -22°F~140°F (-30°C~60°C), |
| Power Consumption | ≤5.5W |
| Protocols | UDP, IPv4, IPv6, DHCP, NTP, RTSP, RTP, RTCP, RTMP, PPPoE, DDNS, SMTP, FTP, 802.1x, SNMP, UPnP, HTTP, HTTPS, HTTP POST, P2P, QoS |
| Weatherproof | IP67 |
| Angle of View | Horizontal FoV: 94°, Vertical FoV:50°, Diagonal FoV:115° |
| Rotation Angle | 0°~180° |
| IR Distance | 30m/100ft |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Back Light Compensation | Yes |
| Motion Detection Tracking | Yes |
| Wide Dynamic Range | Yes |
| ONVIF | Yes |
