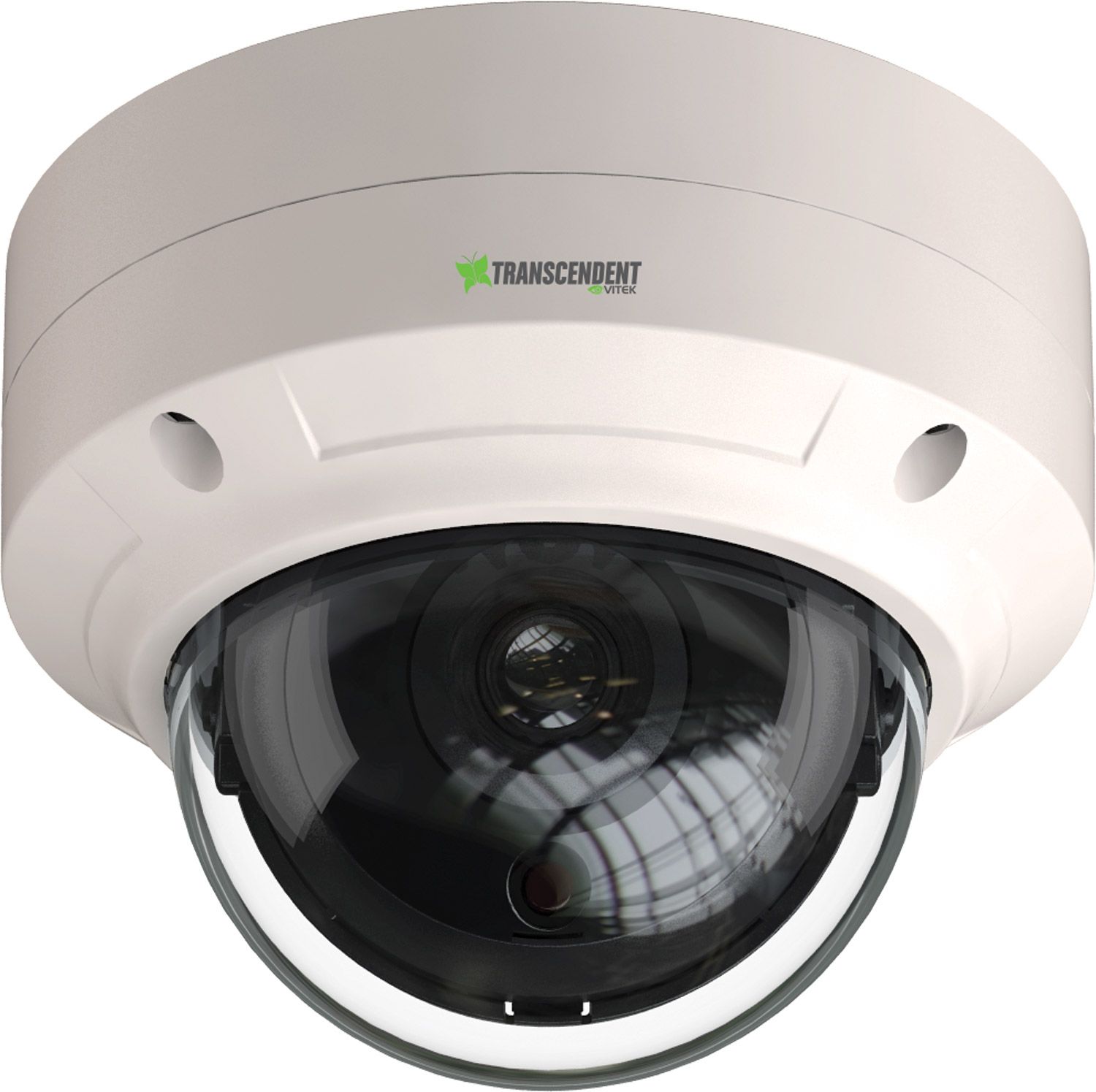

Vitek VTD-THD5R3 2560x1920 4-IN-1 HDA IR Indoor/Outdoor Dome Camera, 3.6mm Lens
SKU
VTD-THD5R3
Model No
VTD-THD5R3
$94.42
Product Highlights
- 1/2.5″ 5.0 Megapixel Progressive Scan CMOS Sensor
- High Definition Analog (HDA): HD-TVI & AHD: 5.0 Megapixel / CVI: 4.0 Megapixel / CVBS: 960H Video Output
- 3.6mm Fixed Lens
- 16 Infrared LED's with 100' IR Range
- Digital Wide Dynamic Range (D-WDR)
Speak to an expert
The Vitek VTD-THD5R3 is a powerful 2560x1920 4-IN-1 HDA IR indoor/ outdoor dome camera featuring a 3.6mm lens that elevates surveillance capabilities. With support for HD-TVI, AHD, CVI, and CVBS formats, it delivers up to 5.0 Megapixel resolutions and transmits over existing Coaxial cabling for distances up to 1500 feet, making it the ideal choice for both residential and commercial security needs.
Vitek VTD-THD5R3 Camera Features
- Resolution: 5.0 Megapixel Progressive Scan CMOS Sensor for crystal-clear imaging.
- Video Output: High Definition Analog (HDA) support: HD-TVI & AHD: 5.0 Megapixel, CVI: 4.0 Megapixel, CVBS: 960H ensures versatile connectivity options.
- Lens: 3.6mm Fixed Lens provides a broad field of view for comprehensive surveillance.
- IR Range: 16 Infrared LEDs with 100’ IR Range enhance nighttime visibility and security.
- D-WDR: Digital Wide Dynamic Range technology improves image quality in varying lighting conditions.
- Day/Night Function: True Mechanical Day/Night function by ICR ensures clear images day or night.
- Noise Reduction: 2D-DNR Noise Reduction minimizes image noise for clearer footage.
- Weather Resistance: IP66 Weather Resistance & IK10 Impact Resistance Rating make it suitable for outdoor environments.
- Control: Supports Up The COAX Control for enhanced functionality.
- Transmission Distance: Over 1500’ HD Video Transmission, depending on cable characteristics and integrity ensures flexibility in installation.
- Mounting Options: Optional Wall Mount (VT-TWMT3) & Junction Box (VT-TJB03A) available for customized installation.
- Power: 12VDC Operation for reliability and ease of use.
Detailed Camera Specifications for Vitek VTD-THD5R3
| Camera Type | 4-IN-1 HDA IR Dome Camera |
| Sensor | 1/2.5” 5.0 Megapixel Progressive Scan CMOS |
| Resolution | 2560x1920 HD-TVI, 5.0 Megapixel; AHD, 4.0 Megapixel; CVBS, 960H |
| Lens | 3.6mm Fixed Lens |
| IR LEDs | 16 with 100’ IR Range |
| Dynamic Range | Digital Wide Dynamic Range (D-WDR) |
| Day/Night | True Mechanical ICR |
| Noise Reduction | 2D-DNR |
| Weather Resistance | IP66 Rated |
| Impact Resistance | IK10 Rated |
| Video Transmission | Over 1500’ (cable dependent) |
| Power Supply | 12VDC |
SKU  | VTD-THD5R3 |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Back Light Compensation, Digital Noise Reduction, Vandal Resistant, Weather Resistant, Wide Dynamic Range |
| Manufacturer | Vitek |
Camera Signal  | Analog, HD-AHD, HD-CVI, HD-TVI |
| Resolution | 2560 X 1920 |
| Sensor Option | 1/2.5" CMOS |
| Lens Type | Fixed |
| Lens Size | 3.6mm |
| Infrared Distance | 61~100 Feet |
| Durability | Indoor, Vandal Resistant, Weather Resistant |
| Mount Type | Ceiling, Wall |
| Voltage | 12vDC |
| Image Device | 1/2.5” 5.0 Megapixel Progressive Scan CMOS Sensor |
| Image Pixels-Effective | 2592 x 1944 |
| IR Distance | 30.48m/100ft |
| Minimum Scene Illumination | Color: 0.001 [email protected], AGC ON / B/W: 0 lux (with IR ON) |
| Operating Humidity | 10%~90% Humidity |
| Operating Temperature | -4~122 |
| Dimensions (W x H) | 4.57” x 3.58” (116mm×91mm) Dia x H |
| Power Consumption | IR On: 120mA / IR Off: 360mA |
| S/N Ratio | ≥52dB (AGC Off) |
| Signal System | PAL/NTSC |
| Video Output | HD-TVI / AHD / CVI / CVBS (Selectable) |
| Weatherproof | IP66 |
| Digital Noise Reduction | 2D-DNR |
| Automatic White Balance | Auto (AWB) |
| IR LEDs | 16 |
| Back Light Compensation | Yes |
| Automatic White Balance | Yes |
| Digital Noise Reduction | Yes |
| Wide Dynamic Range | Yes |
| Auto Gain Control | Yes |
