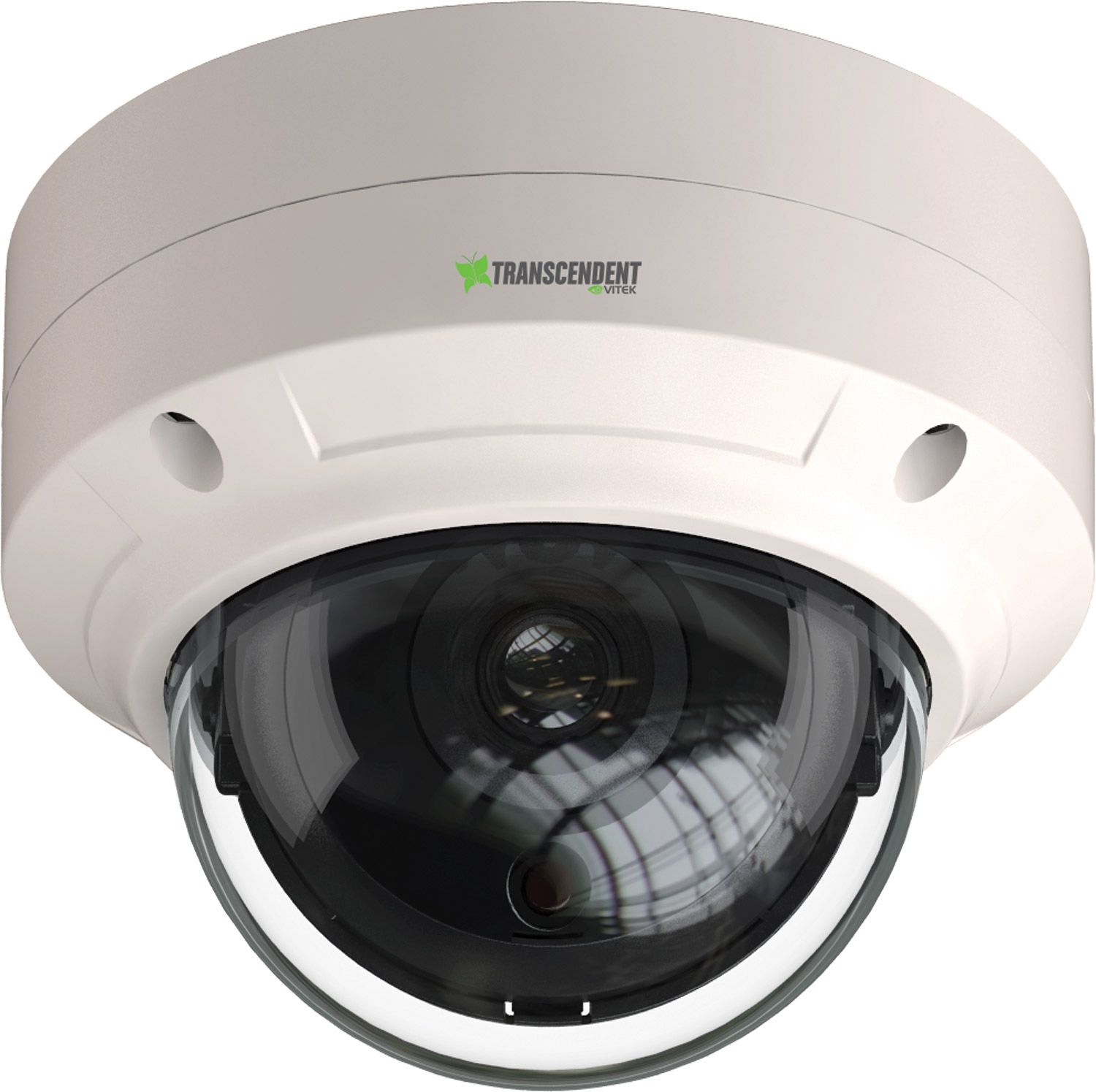

Vitek VTD-THD5R2 2592 x 1944 Analog, HD-AHD, HD-TVI, HD-CVI Dome Camera, 2.8mm Lens
SKU
VTD-THD5R2
Model No
VTD-THD5R2
was $288.89 Special Price $81.32
Product Highlights
- 1/2.5″ 5.0 Megapixel Progressive Scan CMOS Sensor
- High Definition Analog (HDA): HD-TVI & AHD: 5.0 Megapixel / CVI: 4.0 Megapixel / CVBS: 960H Video Output
- 2.8mm Fixed Lens
- 16 Infrared LED's with 100' IR Range
- Digital Wide Dynamic Range (D-WDR)
Speak to an expert
The Vitek VTD-THD5R2 Dome Camera is a cutting-edge surveillance solution, offering exceptional 5.0 Megapixel resolution along with versatile compatibility with various HD formats. Designed for ease of installation and maximum performance, this camera transmits high-definition video over existing coaxial cables, making it a top choice for both commercial and residential security needs.
Vitek VTD-THD5R2 Camera Features
- 1/2.5” 5.0 Megapixel Sensor: Captures detailed images for superior clarity and identification.
- High Definition Analog Compatibility: Supports HD-TVI (5.0MP), AHD (5.0MP), CVI (4.0MP), and CVBS (960H) for flexible installation options.
- 3.6mm Fixed Lens: Provides a wide field of view for comprehensive surveillance coverage.
- 16 Infrared LED’s: Features a 100’ IR range for effective night vision capabilities.
- Digital Wide Dynamic Range (D-WDR): Enhances visibility in challenging lighting conditions, ensuring clear images both day and night.
- True Mechanical Day/Night Function: Utilizes ICR (Infrared Cut Filter) for accurate color reproduction during the day and enhanced night monitoring.
- 2D-DNR Noise Reduction: Reduces noise in low-light environments, improving overall image quality.
- IP66 Weather Resistance: Ensures durability and reliability in various outdoor conditions, while the IK10 rating protects against vandalism.
- Supports Up The COAX Control: Simplifies camera setup and integrates with existing systems for user convenience.
- Video Transmission Range: Capable of transmitting HD video over distances exceeding 1500’, depending on cable characteristics.
- Optional Mounts Available: Includes options for wall mounting and junction boxes for customized installation.
- 12VDC Operation: Standard power supply ensures compatibility with various electrical systems.
Vitek VTD-THD5R2 Detailed Specifications
| Model | Vitek VTD-THD5R2 |
| Resolution | 5.0 Megapixel |
| Sensor Type | 1/2.5” Progressive Scan CMOS |
| Lens Type | 3.6mm Fixed Lens |
| IR Range | 100’ with 16 Infrared LED’s |
| Weather Resistance | IP66 |
| Impact Rating | IK10 |
| Video Output | HD-TVI: 5.0MP / AHD: 5.0MP / CVI: 4.0MP / CVBS: 960H |
| Power Supply | 12VDC |
| Transmission Distance | Over 1500’ (depending on cable) |
| Day/Night Function | True Mechanical with ICR |
| Noise Reduction | 2D-DNR |
| Mount Options | Wall Mount (VT-TWMT3) & Junction Box (VT-TJB03A) |
SKU  | VTD-THD5R2 |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Vandal Resistant, Weather Resistant, Wide Dynamic Range |
| Manufacturer | Vitek |
Camera Signal  | Analog, HD-AHD, HD-CVI, HD-TVI |
| Lens Type | Fixed |
| Lens Size | 2.8mm |
| Infrared Distance | 61~100 Feet |
| Durability | Vandal Resistant, Weather Resistant |
| Mount Type | Ceiling, Wall |
| Voltage | 12vDC |
| Image Device | 1/2.5” 5.0 Megapixel Progressive Scan CMOS Sensor |
| Image Pixels-Effective | 2592 x 1944 |
| IR Distance | 30.48m / 100ft |
| Minimum Scene Illumination | Color: 0.001 [email protected], AGC ON / B/W: 0 lux (with IR ON) |
| Operating Humidity | 10%~90% Humidity |
| Operating Temperature | -4~122 |
| Dimensions (W x H) | 4.57” x 3.58” (116mm×91mm) Dia x H |
| S/N Ratio | ≥52dB (AGC Off) |
| Signal System | PAL/NTSC |
| Weatherproof | IP66 |
| Digital Noise Reduction | 2D-DNR |
| Automatic White Balance | Auto |
| IR LEDs | 16 Dynamic Intensity LEDs |
| Back Light Compensation | Yes |
| Automatic White Balance | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Wide Dynamic Range | Yes |
| Auto Gain Control | Yes |
