Vitek VTC-TNT8FADW-2 Transcendent 8 MegaPixel (4K) Knight Guard + Active Deterrence Fixed IP Turret Camera
SKU
VTC-TNT8FADW-2
Model No
VTC-TNT8FADW-2
$368.89
Product Highlights
- Active Deterrence: Alternate Flashing Red + Blue Warning Lights & User-Defined Warning / Command Voice Import
- White Light or Matrix IR / Up to 130'
- True Wide Dynamic Range (120dB)
- Triple Streaming: H.265+, H.264+ & MJPEG Compression
- XD-DNR (3D & 2D-DNR) Noise Reduction
Speak to an expert
The Vitek VTC-TNT8FADW-2 Transcendent 8 MegaPixel (4K) Knight Guard + Active Deterrence Fixed IP Turret Camera offers unparalleled surveillance capabilities with a focus on clarity and security. This advanced camera equips users with full-color night vision, real-time active deterrence alerts, and state-of-the-art analytics, making it ideal for high-security environments. Designed to minimize false alarms while maximizing human and vehicle detection, it is the perfect choice for comprehensive perimeter protection.
Vitek VTC-TNT8FADW-2 Camera Features
- 1/1.8” 8.0 MegaPixel (4K) CMOS Image Sensor: Delivers high-resolution images ensuring clear details in any lighting condition.
- Up to 30fps live view @ 8 MegaPixel (4K) (3840 × 2160): Smooth video playback enables real-time monitoring of activities.
- 2.8mm Fixed Iris Lens: Provides a wide field of view, allowing users to cover more area with a single camera.
- Active Deterrence: Alternate Flashing Red + Blue Warning Lights & User-Defined Warning / Command Voice Import warns potential intruders effectively.
- White Light or Matrix IR / Up to 130’: Enhances visibility in low-light conditions up to 130 feet, ensuring reliable surveillance.
- True Wide Dynamic Range (120dB): Captures clear images in challenging lighting scenarios, providing balanced visibility.
- Triple Streaming: H.265+, H.264+ & MJPEG Compression allows for flexible video management and streaming options.
- XD-DNR (3D & 2D-DNR) Noise Reduction: Reduces noise in footage, enhancing clarity for better identification.
- Advanced Analytics: Gen IV features like Face Detection and Heat Map provide insightful data analysis for improved security.

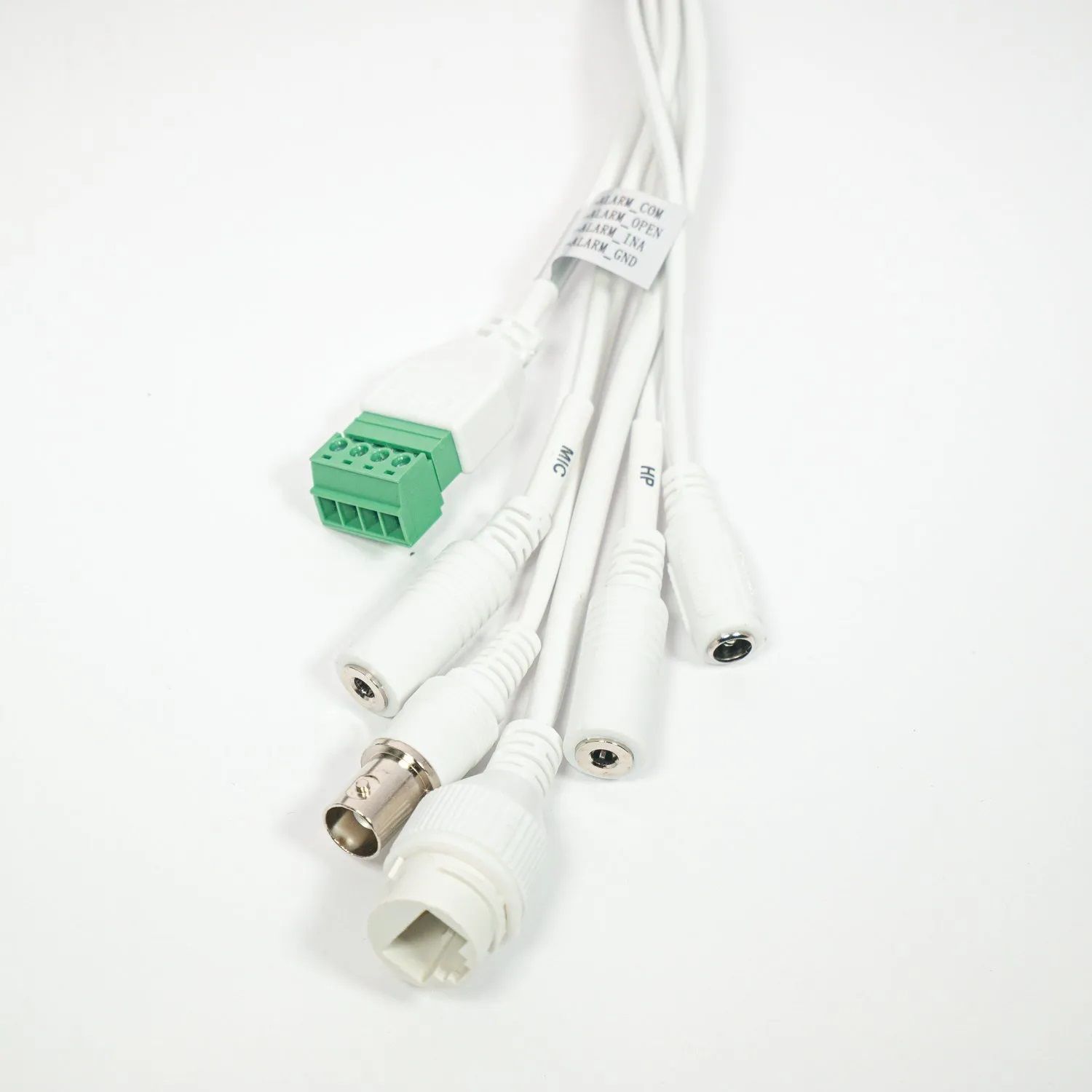

- Audio Capabilities: 1 Ch. Audio In + 1 Ch. Audio Out, Built-in Mic + Built-in Speaker enhance communication and monitoring.
- Smart Alarm: Incorporates multiple alerts such as Motion Detection and Sensor Alarms for proactive monitoring.
- IP66 Weather Resistance: Ensures reliability even in harsh weather conditions.
- 12VDC & PoE Operation: Easily integrates into existing power setups or enables flexible installation options.
Vitek VTC-TNT8FADW-2 Detailed Specifications
| Feature | Details |
|---|---|
| Model | Vitek VTC-TNT8FADW-2 |
| Camera Type | Fixed IP Turret |
| Image Sensor | 1/1.8” 8.0 MegaPixel (4K) CMOS |
| Video Resolution | 3840 × 2160 |
| Frame Rate | Up to 30fps |
| Lens | 2.8mm Fixed Iris |
| Night Vision | White Light or Matrix IR / Up to 130’ |
| Dynamic Range | True Wide Dynamic Range (120dB) |
| Weather Rating | IP66 |
| Power Supply | 12VDC & PoE |

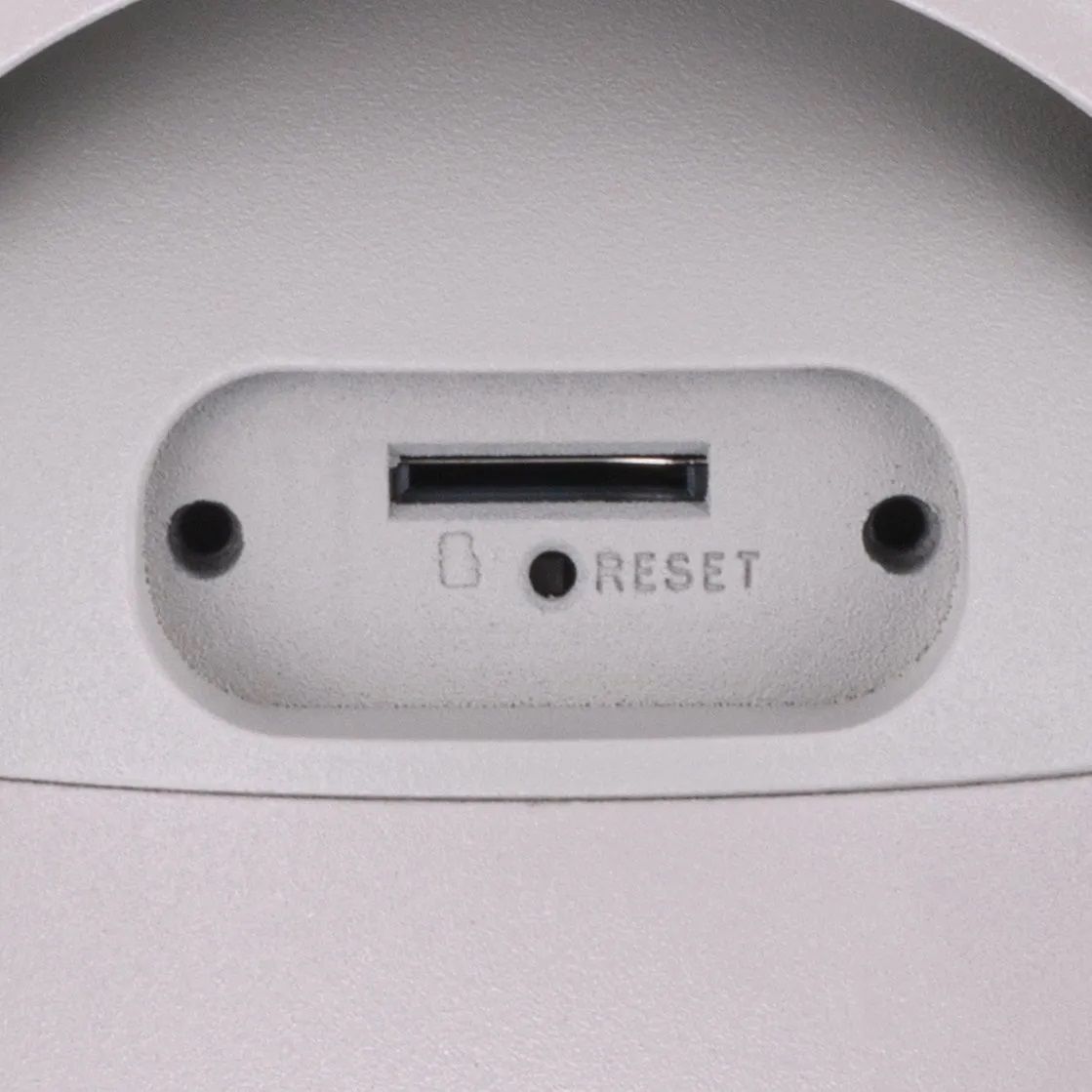

| Storage | Built-in MicroSD Card Slot (up to 256GB) |
| Audio | 1 Ch. Audio In & Out, Built-in Mic & Speaker |
| Alarm Inputs/Outputs | 1 Ch. Alarm In & Out |
| Analytics Features | Gen IV Advanced Analytics including Face Detection, Line Crossing, and more |
SKU  | VTC-TNT8FADW-2 |
|---|---|
| Features | Audio, Auto Gain Control, Back Light Compensation, Day/Night, Digital Noise Reduction, Mirror, Motion Detection Tracking, ONVIF, Weather Resistant, Wide Dynamic Range |
| Manufacturer | Vitek |
| NDAA | Compliant |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | 101 Feet + |
| Resolution | 8 Megapixel |
| Lens Type | Fixed |
| Lens Size | 2.8mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, M-JPEG, H.265, H.264+, H.265+ |
| Durability | Weather Resistant |
| Voltage | 12vDC, PoE |

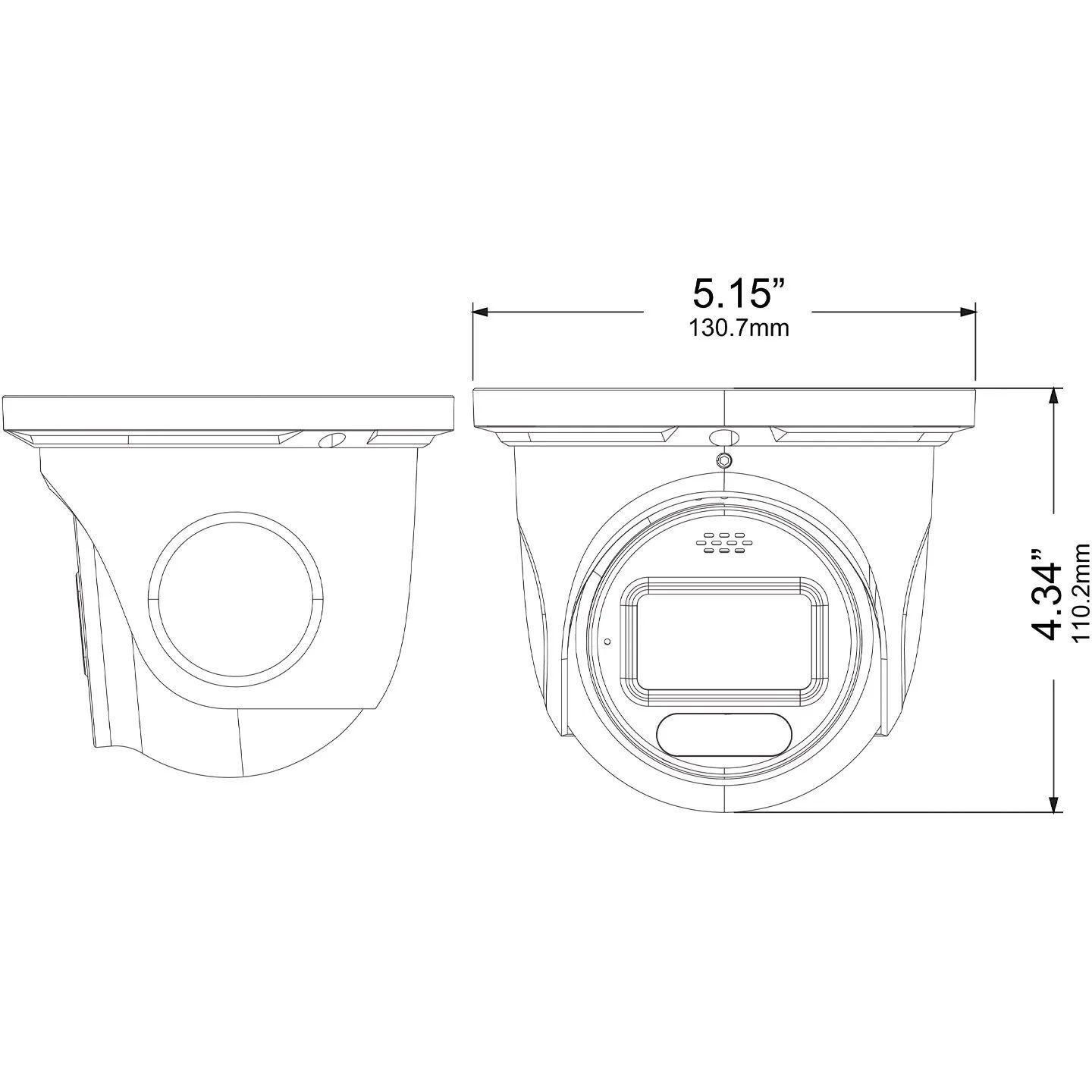

| Dimensions (W x H) | 4.34” × 5.15” (110 × 131mm) |
| Electronic Shutter | 1/2s ~ 1/100,000s |
| Image Device | 1/1.8” 8.0 MegaPixel (4K) Progressive Scan CMOS |
| Minimum Scene Illumination | 0.008lux @ F1.6 with AGC ON, 0 lux with IR, 0 lux with LED |
| Operating Humidity | < 95% Humidity |
| Operating Temperature | -22° ~149°F (-30°~65°C) |
| Power Consumption | (PoE) <11.5W |
| Protocols | UDP, IPv4, IPv6, DHCP, NTP, RTSP, RTP, RTCP, PPPoE, DDNS, SMTP, FTP, SNMP, RTMP, HTTP, 802.1x, UPnP, HTTPS, HTTP POST, QoS |
| S/N Ratio | ≥50dB |
| Weatherproof | IP66 |
| Digital Noise Reduction | 3D & 2D-DNR |
| Rotation Angle | 0°~180° |
| IR Distance | 39m/130ft |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Motion Detection Tracking | Yes |
| Wide Dynamic Range | Yes |
| Mirror | Yes |
| ONVIF | Yes |
